WP483 Series

Catalog

LED UNI-COLOR RED 627NM 2-PIN T-1 3/4 BAG

Part	Configuration	Color	Supplier Device Package	Lens Style	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ)	Package / Case	Viewing Angle	Height (Max) [Max] [z]	Current - Test	Wavelength - Peak	Lens Size	Lens Size	Millicandela Rating	Wavelength - Dominant	Lens Color	Size / Dimension [diameter]

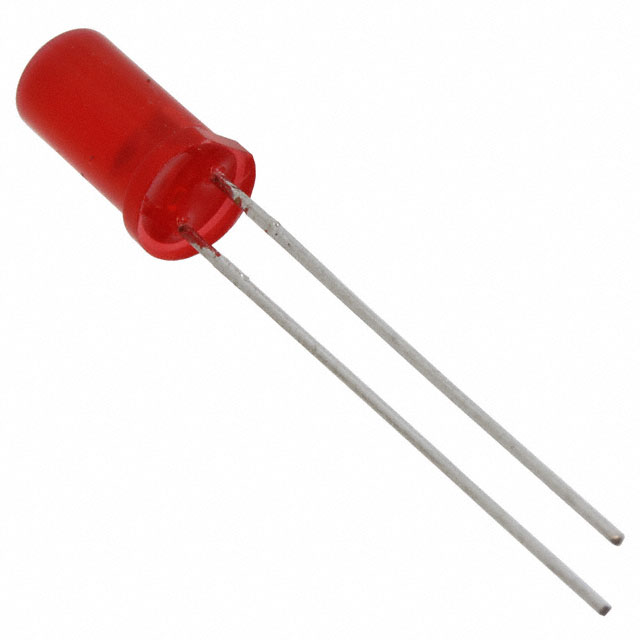

Kingbright WP483IDT	Standard	Red	T-1 3/4	Round with Flat Top	Diffused	Through Hole	2 V	Radial	100 °	9.6 mm	20 mA	627 nm	5 mm	T-1 3/4	4 mcd	617 nm	Red	5 mm

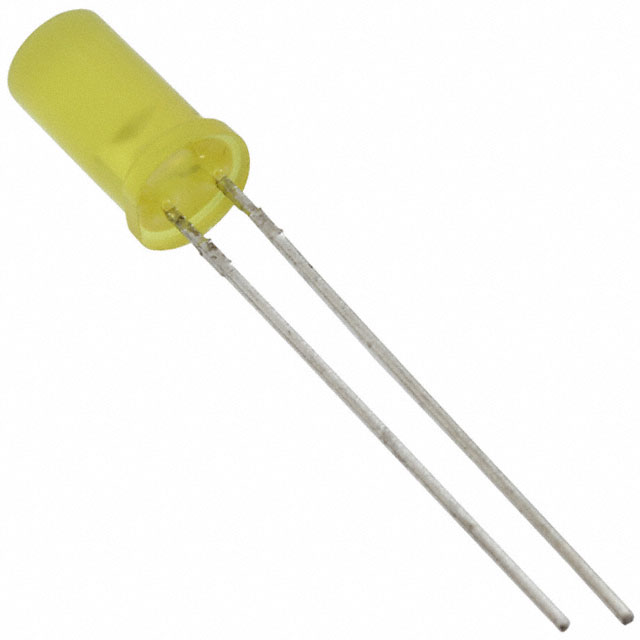

Kingbright WP483YDT	Standard	Yellow	T-1 3/4	Round with Flat Top	Diffused	Through Hole	2.1 V	Radial	100 °	9.6 mm	20 mA	590 nm	5 mm	T-1 3/4	3 mcd	588 nm	Yellow	5 mm
Kingbright WP483EDT	Standard		T-1 3/4	Round with Flat Top	Diffused	Through Hole	2 V	Radial	100 °	9.6 mm	20 mA	627 nm	5 mm	T-1 3/4	4 mcd	617 nm	Orange	5 mm
Kingbright WP483GDT	Standard	Green	T-1 3/4	Round with Flat Top	Diffused	Through Hole	2.2 V	Radial	100 °	9.6 mm	20 mA	565 nm	5 mm	T-1 3/4	3 mcd	568 nm	Green	5 mm
