BD2808MUV-M Series

24ch Constant Current LED Driver IC with 2-line Serial Interface

Catalog

24ch Constant Current LED Driver IC with 2-line Serial Interface

Part	Internal Switch(s)	Voltage - Output	Frequency	Grade	Current - Output / Channel [custom]	Voltage - Supply (Max) [Max]	Voltage - Supply (Min) [Min]	Package / Case	Dimming	Supplier Device Package	Type	Number of Outputs	Applications	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type

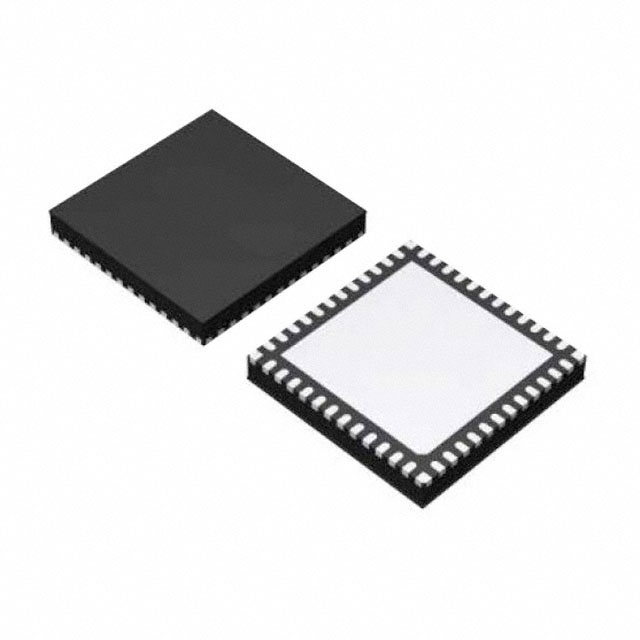

Rohm Semiconductor BD2808MUV-ME2		20 V	1.23 MHz	Automotive	50 mA	5.5 V	3 V	48-VFQFN Exposed Pad	PWM	VQFN48MCV070	Linear	24	Backlight	AEC-Q100	-40 °C	105 °C	Surface Mount

Catalog

24ch Constant Current LED Driver IC with 2-line Serial Interface

Description

BD2808MUV-M is 24ch Constant current sink LED Driver with a high output voltage capability. This device is optimized for driving RGB LEDs featuring a 6bit Current DAC for each color. 8bit PWM control is integrated for each channel. Small VQFN48MCV070 package.
