SRN1060 Series

Catalog

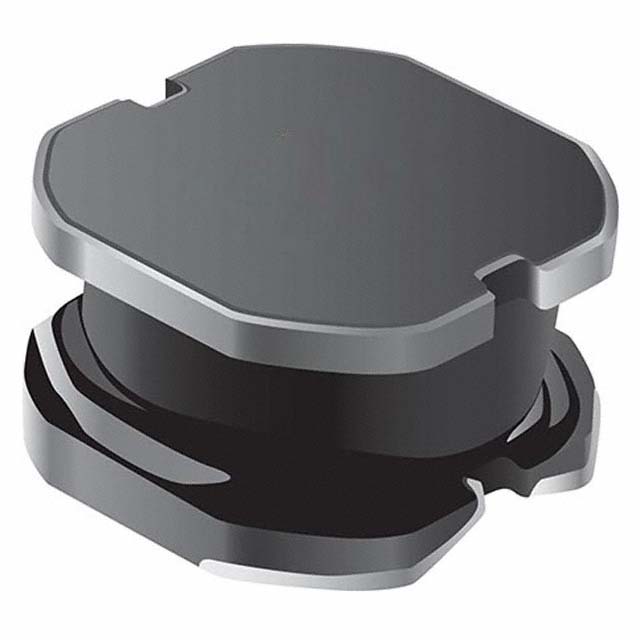

SURFACE MOUNT POWER INDUCTOR, SRN1060 SERIES, 22 H, 20%, SHIELDED, 0.053 OHM, 3.4 A ROHS COMPLIANT: YES

Part	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Package / Case	Current - Saturation (Isat)	Type	Q @ Freq [custom]	Q @ Freq [custom]	Tolerance	Inductance Frequency - Test	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRN1060-220M	Semi-Shielded Shielded	Surface Mount	125 °C	-40 C	6 mm	0.236 "	Ferrite	Nonstandard	3.4 A	Drum Core Wirewound	7.96 MHz	20	20 %	100 kHz	22 µH	53 mOhm	3.4 A	8 MHz	10 mm	0.394 in	9.8 mm	0.386 in
Bourns Inc. SRN1060-330M	Semi-Shielded Shielded	Surface Mount	125 °C	-40 C	6 mm	0.236 "	Ferrite	Nonstandard	2.8 A	Drum Core Wirewound			20 %	100 kHz	33 µH		3.15 A	7 MHz	10 mm	0.394 in	9.8 mm	0.386 in	2.52 MHz 16	72 mOhm
Bourns Inc. SRN1060-221M	Semi-Shielded	Surface Mount	125 °C	-40 C	6 mm	0.236 "	Ferrite	Nonstandard	1.2 A	Drum Core Wirewound			20 %	100 kHz	220 µH	460 mOhm	1 A	3 MHz	10 mm	0.394 in	9.8 mm	0.386 in	2.52 MHz 13
Bourns Inc. SRN1060-180M	Semi-Shielded Shielded	Surface Mount	125 °C	-40 C	6 mm	0.236 "	Ferrite	Nonstandard	3.8 A	Drum Core Wirewound			20 %	100 kHz	18 µH	43 mOhm	3.85 A	10 MHz	10 mm	0.394 in	9.8 mm	0.386 in	7.96 MHz 25
Bourns Inc. SRN1060-471M	Semi-Shielded Shielded	Surface Mount	125 °C	-40 C	6 mm	0.236 "	Ferrite	Nonstandard	800 mA	Drum Core Wirewound			20 %	100 kHz	470 µH	950 mOhm	800 mA	2 MHz	10 mm	0.394 in	9.8 mm	0.386 in	13 796 kHz
