MPX Series

Catalog

CAP FILM 0.022UF 10% 275VAC RAD

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Dielectric Material	Lead Spacing	Lead Spacing	Features	Applications	Termination	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]

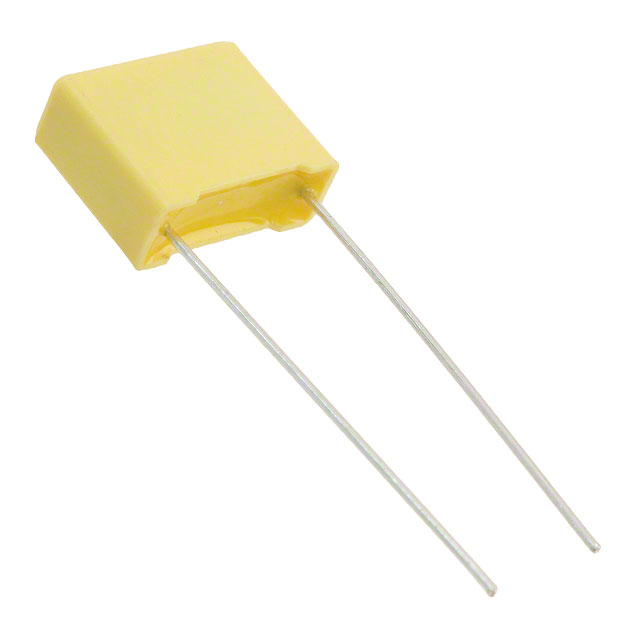

Cornell Dubilier Knowles MPXQS22K	13 mm	0.512 "	5 mm	0.197 "	Radial	11.5 mm	0.453 in	10 %	275 V	Through Hole	-40 C	100 °C	X2	Polypropylene (PP) Metallized	0.394 in	10 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	0.022 µF
Cornell Dubilier Knowles MPX335K305H	32 mm	1.26 in	18 mm	0.709 in	Radial			10 %	305 V	Through Hole	-40 C	110 °C	X2	Polypropylene (PP) Metallized	1.083 in	27.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	3.3 µF	1.319 in	33.5 mm
Cornell Dubilier Knowles MPX103K305D	13 mm	0.512 "	5 mm	0.197 "	Radial	11.5 mm	0.453 in	10 %	305 V	Through Hole	-40 C	110 °C	X2	Polypropylene (PP) Metallized	0.394 in	10 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	10000 pF

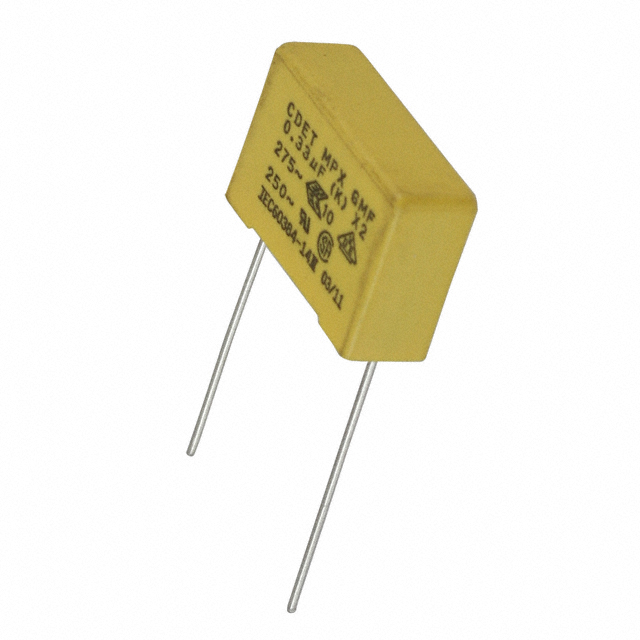

Cornell Dubilier Knowles MPXQP33K	26.5 mm	1.043 in	8.5 mm	0.335 in	Radial			10 %	275 V	Through Hole	-40 C	100 °C	X2	Polypropylene (PP) Metallized	0.886 in	22.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	0.33 µF			17.5 mm	0.689 in
Cornell Dubilier Knowles MPX104K305E	18 mm	0.709 in	6 mm	0.236 "	Radial	12.5 mm	0.492 in	10 %	305 V	Through Hole	-40 C	110 °C	X2	Polypropylene (PP) Metallized	0.591 in	15 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	100000 pF
Cornell Dubilier Knowles MPXQP22K	26.5 mm	1.043 in	7 mm	0.276 in	Radial		17 mm	10 %	275 V	Through Hole	-40 C	100 °C	X2	Polypropylene (PP) Metallized	0.886 in	22.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	0.22 µF	0.669 "
Cornell Dubilier Knowles MPX106K305N	42.5 mm	1.673 "	30 mm	1.181 in	Radial			10 %	305 V	Through Hole	-40 C	110 °C	X2	Polypropylene (PP) Metallized	1.476 in	37.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	10 µF
Cornell Dubilier Knowles MPX154K305E	18 mm	0.709 in	6 mm	0.236 "	Radial	12.5 mm	0.492 in	10 %	305 V	Through Hole	-40 C	110 °C	X2	Polypropylene (PP) Metallized	0.591 in	15 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	0.15 ÁF

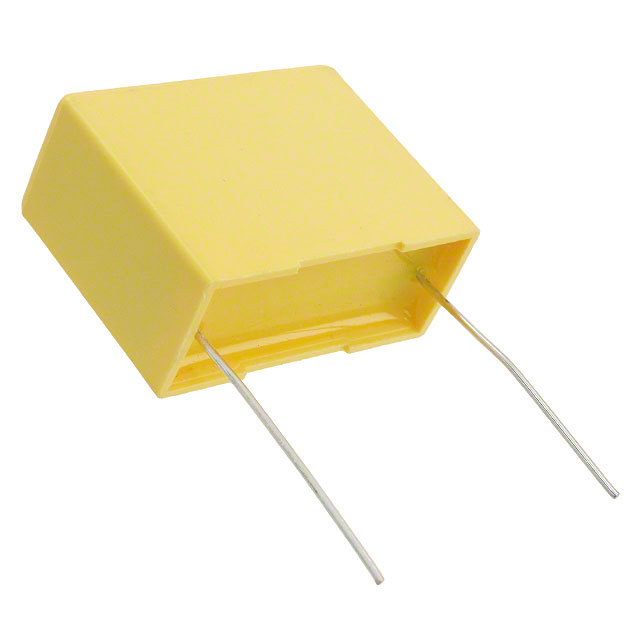

Cornell Dubilier Knowles MPXQW1K	32 mm	1.26 in	14 mm	0.551 in	Radial			10 %	275 V	Through Hole	-40 C	100 °C	X2	Polypropylene (PP) Metallized	1.083 in	27.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	1 µF	1.004 in			25.5 mm
Cornell Dubilier Knowles MPX396K305R	2.264 in		1.378 in		Radial		50.5 mm	10 %	305 V	Through Hole	-40 C	110 °C	X2	Polypropylene (PP) Metallized	2.067 in	52.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	EMI RFI Suppression	PC Pins	39 µF	1.988 in				57.5 mm	35 mm
