OP03 Series

Catalog

TERM BLOCK HDR

Part	Type	Positions Per Level	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Contact Tail Length	Contact Tail Length	Housing Material	Header Orientation	Insulation Height	Insulation Height	Voltage - UL	Contact Material	Voltage - IEC	Contact Mating Finish	Pitch [x]	Pitch [x]	Material Flammability Rating	Current - IEC	Current - UL	Color
Amphenol Anytek OP030C000000G	Header Male Pins Unshrouded	3	Solder	Through Hole

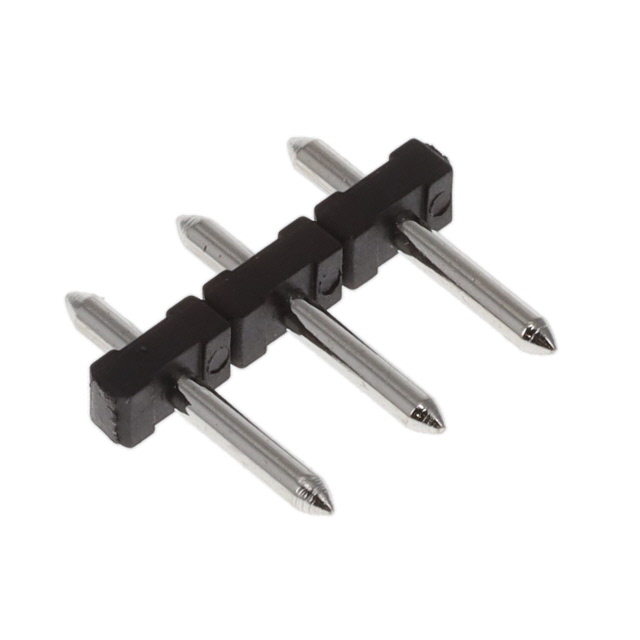

Amphenol Anytek OP0300000000G	Header Male Pins Unshrouded	3	Solder	Through Hole	-40 °C	115 °C	1	3.5 mm	0.138 in	Thermoplastic	Vertical	0.079 in	2 mm	300 V	Brass	300 V	Tin	5 mm	0.197 in	UL94 V-0	12 A
Amphenol Anytek OP0342000000G	Header Male Pins Unshrouded	3	Solder	Through Hole	-40 °C	115 °C	1	3.5 mm	0.138 in	Thermoplastic	Vertical	0.079 in	2 mm	300 V	Brass		Tin	3.81 mm	0.15 in	UL94 V-0		10 A
Amphenol Anytek OP032B010000G	Header Male Pins Unshrouded	3	Solder	Through Hole	-40 °C	115 °C	1	3.5 mm	0.138 in	Polyamide (PA) Nylon	Vertical	0.063 in	1.6 mm	150 V	Brass		Tin	3.5 mm	0.138 in	UL94 V-0		10 A
Amphenol Anytek OP0304210000G	Header Male Pins Unshrouded	3	Solder	Through Hole
Amphenol Anytek OP0322100000G	Header Male Pins Unshrouded	3	Solder	Through Hole	-40 °C	115 °C	1	3.5 mm	0.138 in	Thermoplastic	Vertical	0.079 in	2 mm	300 V	Brass		Gold	3.5 mm	0.138 in	UL94 V-0		10 A	Black
