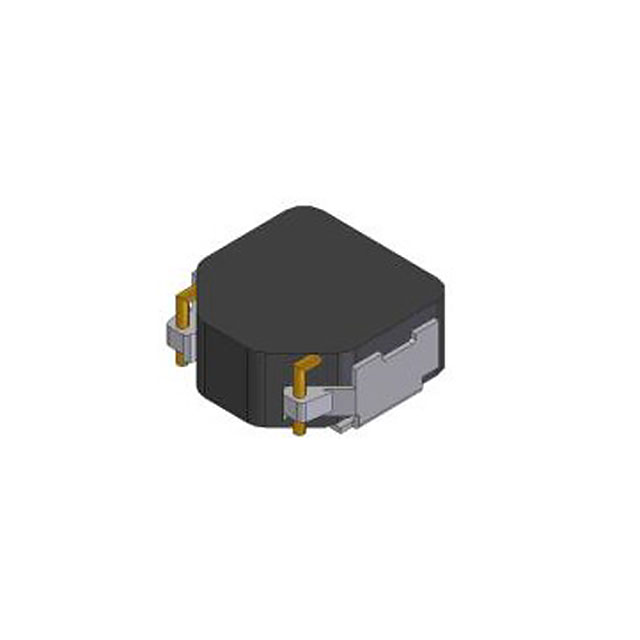

DFEG7030D Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 6.8UH 3.5A 59MOHM SMD
| Part | Current Rating (Amps) | Shielding | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ratings | Inductance | DC Resistance (DCR) [Max] | Tolerance | Package / Case | Mounting Type | Material - Core | Current - Saturation (Isat) | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 3.5 A | Shielded | 100 kHz | 125 °C | -40 C | 6.6 mm | 0.26 in | 0.276 " | 7 mm | 0.118 " | 3 mm | AEC-Q200 | 6.8 µH | 59 mOhm | 20 % | Nonstandard | Surface Mount | Iron Powder | 5.2 A | |
Murata Electronics | 3.8 A | Shielded | 100 kHz | 125 °C | -40 C | 6.6 mm | 0.26 in | 0.276 " | 7 mm | 0.118 " | 3 mm | AEC-Q200 | 5.6 µH | 54 mOhm | 20 % | Nonstandard | Surface Mount | Iron Powder | 5.4 A | |
Murata Electronics | 1.9 A | Shielded | 100 kHz | 125 °C | -40 C | 6.6 mm | 0.26 in | 0.276 " | 7 mm | 0.118 " | 3 mm | AEC-Q200 | 22 µH | 198 mOhm | 20 % | Nonstandard | Surface Mount | Iron Powder | 2.7 A | |
Murata Electronics | 7.6 A | Shielded | 100 kHz | 125 °C | -40 C | 6.6 mm | 0.26 in | 0.276 " | 7 mm | 0.118 " | 3 mm | AEC-Q200 | 1.5 µH | 15 mOhm | 20 % | Nonstandard | Surface Mount | Iron Powder | 9.7 A | |
Murata Electronics | 5.4 A | Shielded | 100 kHz | 125 °C | -40 C | 6.6 mm | 0.26 in | 0.276 " | 7 mm | 0.118 " | 3 mm | AEC-Q200 | 3.3 µH | 20 % | Nonstandard | Surface Mount | Iron Powder | 7.1 A | 29 mOhm |
