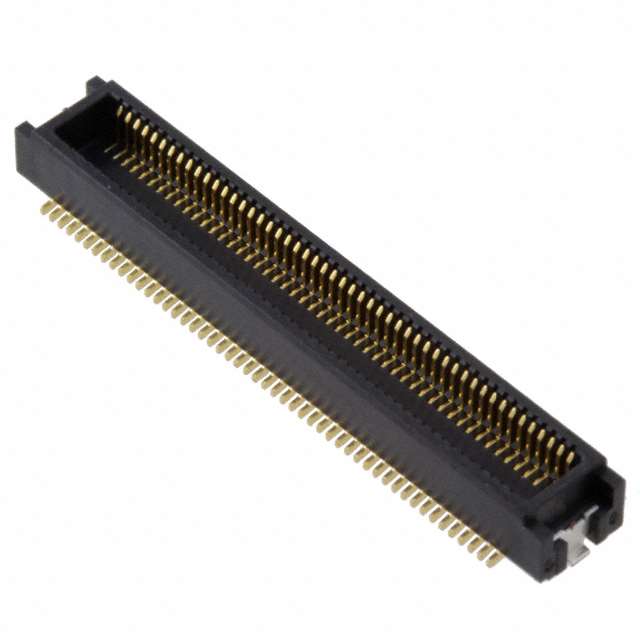

1565359 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
ON TAPING(EMBOSS)0.5MM PITCH F
| Part | Pitch | Pitch | Mounting Type | Height Above Board [z] | Height Above Board [z] | Features | Number of Rows [custom] | Connector Type | Contact Finish | Number of Positions | Mated Stacking Heights [Max] [z] | Mated Stacking Heights [Min] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.02 " | 0.5 mm | Surface Mount | 3.3 mm | 0.13 in | Solder Retention | 2 | Plug Outer Shroud Contacts | Gold | 100 | 4.5 mm | 4 mm |
