ACB40 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 80POS 0.050

Part	Material - Insulation	Number of Rows [custom]	Contact Material	Number of Positions/Bay/Row [custom]	Termination	Contact Finish	Contact Type	Number of Positions	Card Thickness	Card Thickness	Gender	Read Out	Color	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions ACB40DHHN	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder Staggered	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Through Hole	Non Specified - Dual Edge	150 °C	-65 ░C
Sullins Connector Solutions ACB40DYHR	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder Staggered	Gold	Cantilever	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Through Hole	Non Specified - Dual Edge	150 °C	-65 ░C	Board Lock
Sullins Connector Solutions ACB40DHRT	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Board Edge Straddle Mount	Non Specified - Dual Edge	150 °C	-65 ░C	Card Extender	4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions ACB40DHAD	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder Staggered	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Right Angle Through Hole	Non Specified - Dual Edge	150 °C	-65 ░C		Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "

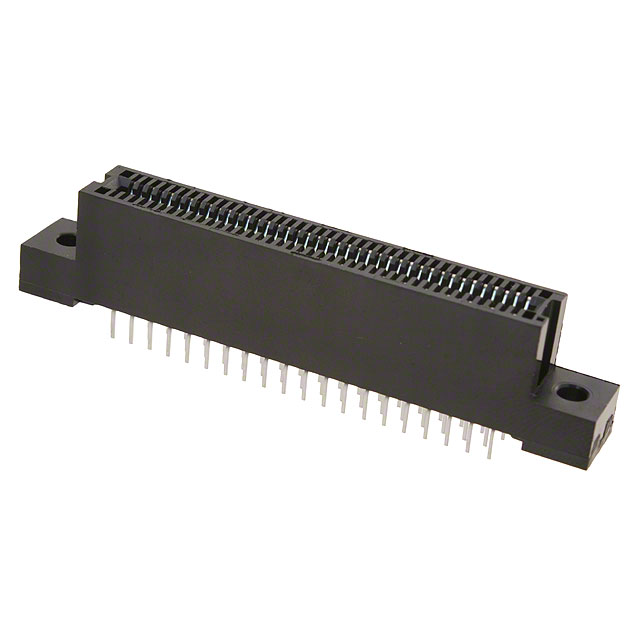

Sullins Connector Solutions ACB40DHHD	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder Staggered	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Through Hole	Non Specified - Dual Edge	150 °C	-65 ░C		Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB40DHNT	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Through Hole	Non Specified - Dual Edge	150 °C	-65 ░C		4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions ACB40DHND	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Through Hole	Non Specified - Dual Edge	150 °C	-65 ░C		Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB40DYFN-S1355	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder	Gold	Cantilever	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Surface Mount	Non Specified - Dual Edge	150 °C	-65 ░C
Sullins Connector Solutions ACB40DHRD	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Board Edge Straddle Mount	Non Specified - Dual Edge	150 °C	-65 ░C	Card Extender	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB40DHAR	Polyphenylene Sulfide (PPS)	2	Beryllium Copper	40	Solder Staggered	Gold	Hairpin Bellows	80	1.57 mm	0.062 in	Female	Dual	Black	0.05 in	1.27 mm	30 Áin	0.76 Ám	Right Angle Through Hole	Non Specified - Dual Edge	150 °C	-65 ░C	Board Lock
