HRPG-1000 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 960W
| Part | Power (Watts) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Isolation | Number of Outputs | Voltage - Output 1 | Type | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Mounting Type | Features | Applications | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

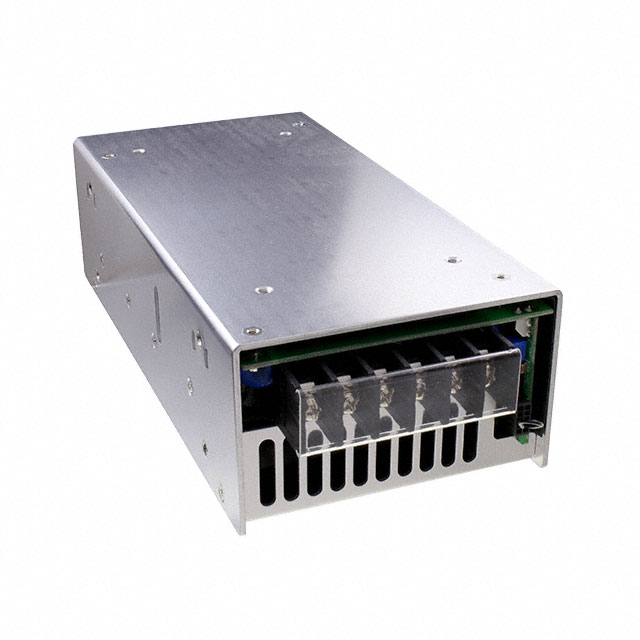

 MEAN WELL USA Inc. | 960 W | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 3000 V | 1 | 12 V | Enclosed | CB CE cURus EAC TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | 91.5 % | Chassis Mount | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | |

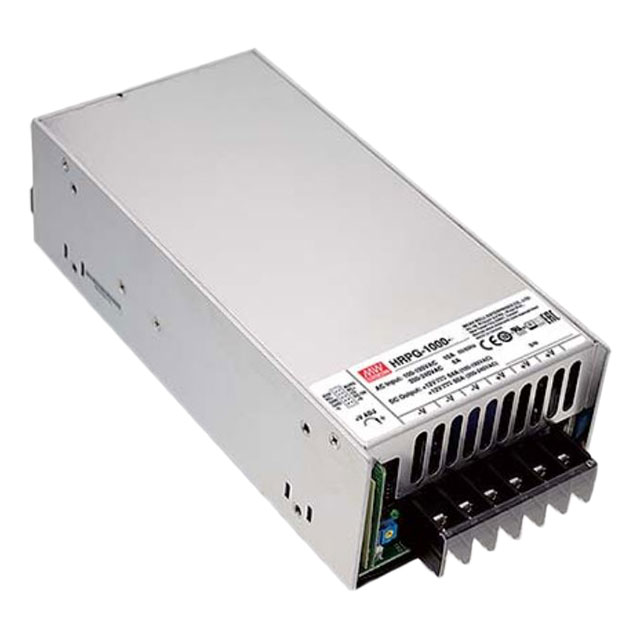

 MEAN WELL USA Inc. | 1.008 kW | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 3000 V | 1 | 24 V | Enclosed | CB CE cURus EAC TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | 93 % | Chassis Mount | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | 42 A |
