87577 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Number of Rows [custom]	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Type	Fastening Type	Number of Positions	Style	Mounting Type	Insulation Material
TE Connectivity AMP Connectors 87577-2	2.54 µm	100 µin	10.16 mm	0.4 in	2	Square	Phosphor Bronze	100 çin	2.54 çm	All	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	UL94 V-0	Tin-Lead	3 A	Tin-Lead	8.08 mm	0.318 in	105 ░C	-65 ░C	Header	0.135 in	3.43 mm	0.1 in	2.54 mm	Black	Male Pin	Detent Lock	10	Board to Board Cable	Right Angle Through Hole	Thermoplastic
TE Connectivity AMP Connectors 6-87577-3	2.54 µm	100 µin	10.16 mm	0.4 in	2	Square	Phosphor Bronze	100 çin	2.54 çm	All	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	UL94 V-0	Tin	3 A		8.08 mm	0.318 in	105 ░C	-65 ░C	Header	0.135 in	3.43 mm	0.1 in	2.54 mm	Black	Male Pin	Detent Lock		Board to Board Cable	Right Angle Through Hole	Thermoplastic

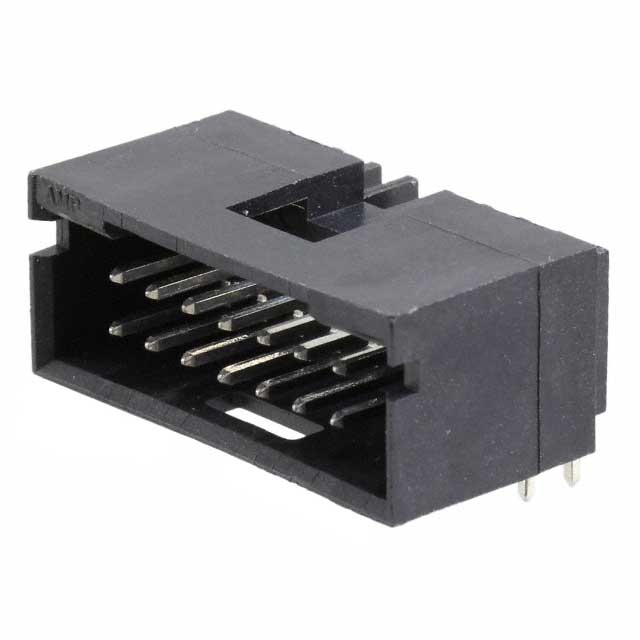

TE Connectivity AMP Connectors 87577-4	2.54 µm	100 µin	10.16 mm	0.4 in	2	Square	Phosphor Bronze	100 çin	2.54 çm	All	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	UL94 V-0	Tin-Lead	3 A	Tin-Lead	8.08 mm	0.318 in	105 ░C	-65 ░C	Header	0.135 in	3.43 mm	0.1 in	2.54 mm	Black	Male Pin	Detent Lock	14	Board to Board Cable	Right Angle Through Hole	Thermoplastic
