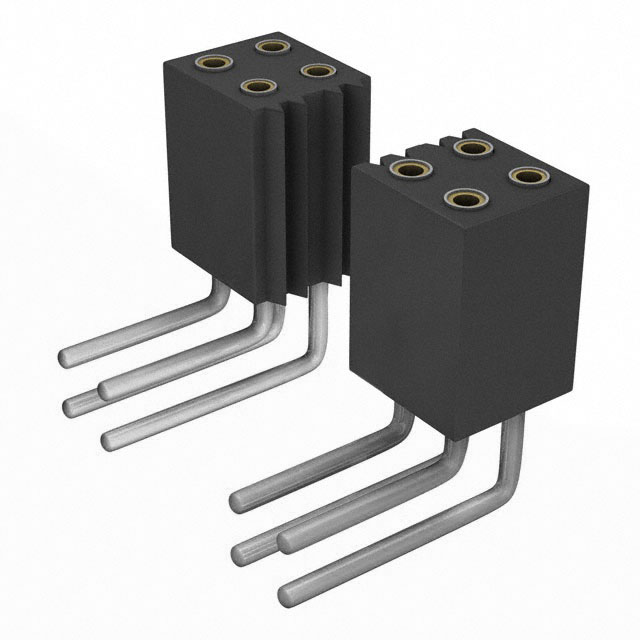

853-93 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 10P 0.05 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Current Rating (Amps)	Contact Finish - Post	Contact Type	Termination	Contact Length - Post [custom]	Contact Length - Post [custom]	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Color	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 853-93-010-20-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Right Angle Through Hole	10	3.05 mm	0.12 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder	0.135 in	3.43 mm	Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black

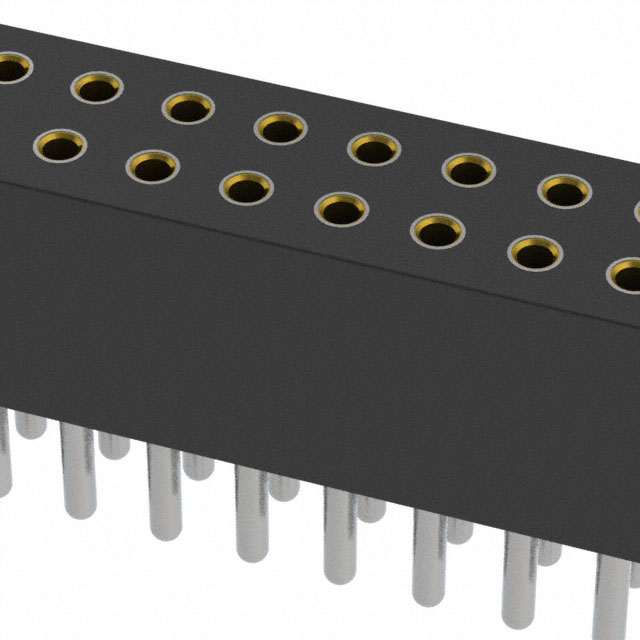

Mill-Max Manufacturing Corp. 853-93-100-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Through Hole	100	4.01 mm	0.158 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder			Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-93-064-20-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Right Angle Through Hole	64	3.05 mm	0.12 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder	0.135 in	3.43 mm	Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black
Mill-Max Manufacturing Corp. 853-93-028-20-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Right Angle Through Hole	28	3.05 mm	0.12 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder	0.135 in	3.43 mm	Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black
Mill-Max Manufacturing Corp. 853-93-016-20-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Right Angle Through Hole	16	3.05 mm	0.12 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder	0.135 in	3.43 mm	Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black

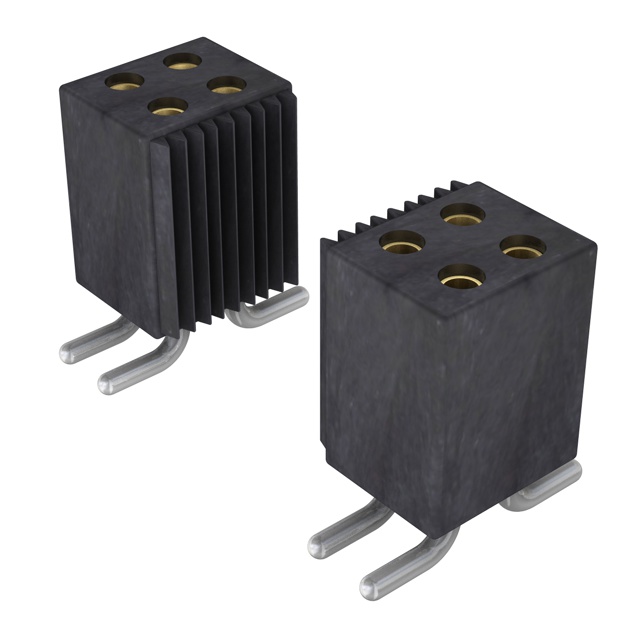

Mill-Max Manufacturing Corp. 853-93-070-30-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Surface Mount	70	5.25 mm	0.207 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder			Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black
Mill-Max Manufacturing Corp. 853-93-078-30-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Surface Mount	78	5.25 mm	0.207 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder			Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black
Mill-Max Manufacturing Corp. 853-93-090-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Through Hole	90	4.01 mm	0.158 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder			Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-93-036-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Through Hole	36	4.01 mm	0.158 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder			Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-93-098-20-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	0.76 Ám	30 Áin	Receptacle	Right Angle Through Hole	98	3.05 mm	0.12 in	All	0.05 in	1.27 mm	1.27 mm	0.05 in	2	3 A	Tin-Lead	Female Socket	Solder	0.135 in	3.43 mm	Push-Pull	UL94 V-0	-55 C	125 °C	Gold	Black
