LUPA3000 Series

CMOS Image Sensor, High Speed, 0.3 MP (VGA)

Catalog

CMOS Image Sensor, High Speed, 0.3 MP (VGA)

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Pixel Size [x]	Pixel Size [y]	Active Pixel Array [x]	Active Pixel Array [y]	Frames per Second	Supplier Device Package	Voltage - Supply	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Active Pixel Array [custom]	Active Pixel Array [custom]

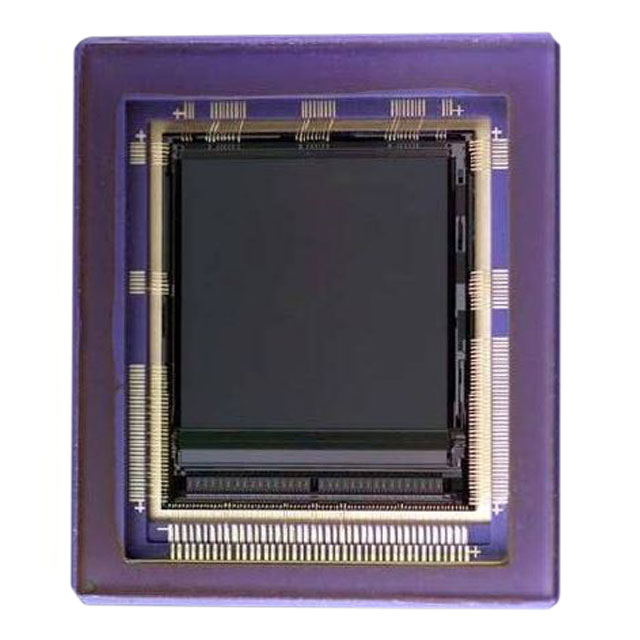

ON Semiconductor NOIL1SN3000A-GDC	60 °C	0 °C	CMOS	8 µm	8 µm	1696	1710	485 Frames per Second	369-µPGA (31x27)	2.5 V 3.3 V	369-BFCPGA

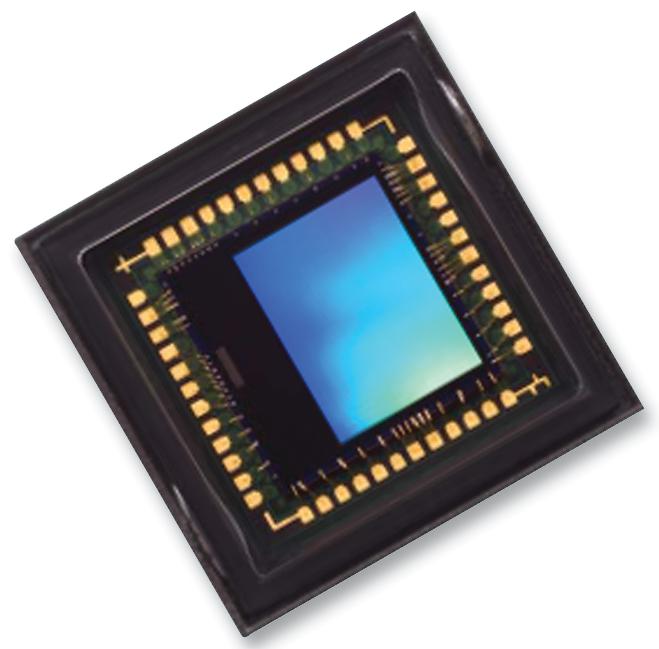

ON Semiconductor NOIL1SE0300A-QDC	70 °C	-40 °C	CMOS	9.9 µm	9.9 µm	640	480	250	48-LCC		48-LCC	3.3 V	2.5 V	14.22	14.22

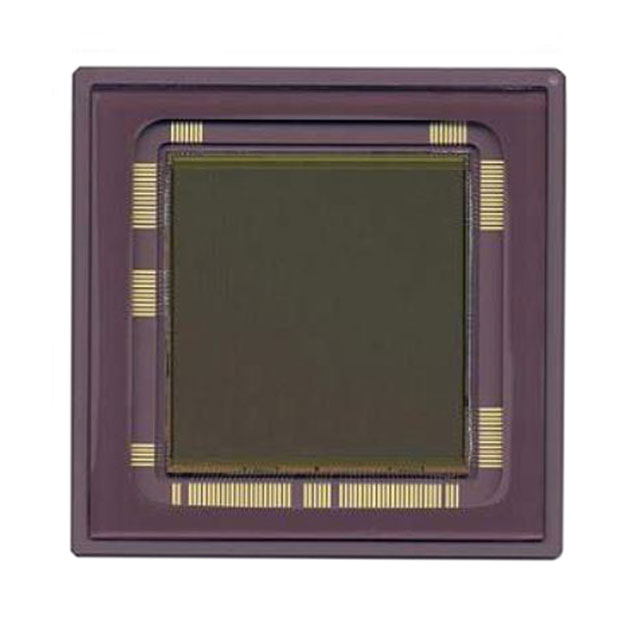

ON Semiconductor NOIL1SM4000A-GDC	60 °C	0 °C	CMOS	12 µm	12 µm			15	127-PGA (42x42)	2.5 V 3.3 V	127-BCPGA					2048	2048
ON Semiconductor NOIL1SM0300A-QDC	70 °C	-40 °C	CMOS	9.9 µm	9.9 µm	640	480	250	48-LCC	2.5 V 3.3 V	48-LQFN			14.22	14.22
ON Semiconductor NOIL1SE3000A-GDC	70 °C	-40 °C	CMOS	8 µm	8 µm	1696	1710	485 Frames per Second	369-µPGA (31x27)	2.5 V 3.3 V	369-BFCPGA

Catalog

CMOS Image Sensor, High Speed, 0.3 MP (VGA)

Key Features

• Global shutter and a maximal frame rate of 250 fps in full resolution

• Double and multiple slope functionality

• User programmable row and column start/stop positions

• Subsampling

• Programmable gain and offset amplifier

• 10-bit ADC

• 3-wire serial-parallel (SPI) interface

• Available in a monochrome version or Bayer (RGB) patterned color filter array

Description

This VGA-resolution CMOS active pixel sensor features global shutter and a maximal frame rate of 250 fps in full resolution, where integration during readout is possible. The readout speed can be boosted by means of subsampling and windowed Region Of Interest (ROI) readout. High dynamic range scenes can be captured using the double and multiple slope functionality. User programmable row and column start/stop positions allow windowing. Subsampling reduces resolution while maintaining the constant field of view and an increased frame rate.The programmable gain and offset amplifier maps the signal swing to the ADC input range. A 10-bit ADC converts the analog data to a 10-bit digital word stream. The sensor uses a 3-wire Serial-Parallel (SPI) interface. It operates with a 3.3 V and 2.5 V power supply and requires only one master clock for operation up to 80 MHz pixel rate. The sensor is available in a monochrome version or Bayer (RGB) patterned color filter array.
