ZM50 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

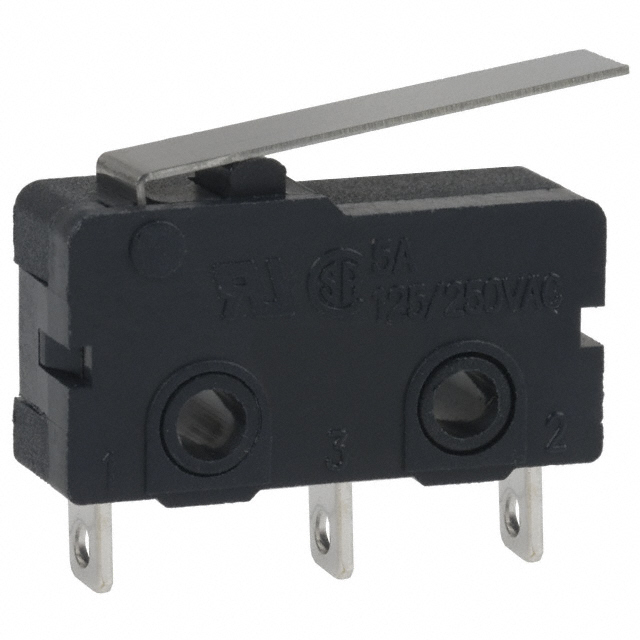

SWITCH SNAP ACTION N.O./N.C. SPDT SHORT STRAIGHT LEVER 5A 250VAC 30VDC 0.39N SCREW MOUNT SOLDER
| Part | Switch Function | Ingress Protection | Voltage Rating - AC | Circuit | Termination Style | Operating Force | Current Rating (Amps) | Mechanical Life | Actuator Type | Pretravel | Pretravel | Release Force | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel | Electrical Life | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | On-Mom | IP40 | 125 V | SPDT | Solder Lug | 40 gf | 5 A | 5000000 Cycles | Lever Straight | 0.14 in | 3.6 mm | 6 gf | 125 °C | -40 C | Chassis Mount | 0.6 mm | 0.024 " | 0.031 in | 0.8 mm | |||
 Honeywell Sensing and Productivity Solutions | On-Mom | 125 V | SPDT | Solder Lug | 5 A | 10000000 Cycles | Lever Straight | 0.24 in | 6.1 mm | 6 gf | 120 °C | -40 C | Chassis Mount | 0.76 mm | 0.03 " | 6000 Cycles | 8.9 mm | 0.35 in | ||||
 Honeywell Sensing and Productivity Solutions | Off-Mom | IP40 | 125 V | SPST-NO | Quick Connect - 0.110" (2.8mm) | 5 A | 5000000 Cycles | Lever Roller | 125 °C | -40 C | Chassis Mount | |||||||||||
 Honeywell Sensing and Productivity Solutions | On-Mom | IP40 | 125 V | SPDT | Quick Connect - 0.110" (2.8mm) | 36 gf | 5 A | 5000000 Cycles | Lever Straight | 0.158 in | 4 mm | 6 gf | 125 °C | -40 C | Chassis Mount | 0.6 mm | 0.024 " | 0.031 in | 0.8 mm | |||
Honeywell Sensing and Productivity Solutions | Off-Mom | IP40 | 125 V | SPST-NO | Quick Connect - 0.110" (2.8mm) | 5 A | 5000000 Cycles | 125 °C | -40 C | Chassis Mount | ||||||||||||
 Honeywell Sensing and Productivity Solutions | On-Mom | 125 V | SPDT | Solder Lug | 33 gf | 5 A | 10000000 Cycles | Lever Straight | 0.157 in | 4 mm | 8 gf | 120 °C | -40 C | Chassis Mount | 0.6 mm | 0.025 in | 0.032 in | 0.81 mm | 6000 Cycles | 11.8 mm | 0.465 in | |
Honeywell Sensing and Productivity Solutions | On-Mom | IP40 | 125 V | SPDT | PC Pin | 5 A | 5000000 Cycles | Lever Roller | 125 °C | -40 C | Right Angle Through Hole | |||||||||||
Honeywell Sensing and Productivity Solutions | On-Mom | 125 V | SPDT | Quick Connect - 0.110" (2.8mm) | 35 gf | 5 A | 10000000 Cycles | Lever Simulated Roller | 0.205 in | 5.2 mm | 8 gf | 120 °C | -40 C | Chassis Mount | 0.6 mm | 0.025 in | 6000 Cycles | 15.1 mm | 0.594 in | |||
 Honeywell Sensing and Productivity Solutions | On-Mom | IP40 | 125 V | SPDT | PC Pin | 146 gf | 5 A | 5000000 Cycles | Round (Pin Plunger) | 0.043 in | 1.1 mm | 35 gf | 125 °C | -40 C | Right Angle Through Hole | 0.4 mm | 0.015 " | 0.008 in | 0.2 mm | |||
Honeywell Sensing and Productivity Solutions | On-Mom | IP40 | 125 V | SPDT | Solder Lug | 5 A | 5000000 Cycles | Lever Roller | 0.15 in | 3.8 mm | 6 gf | 125 °C | -40 C | Chassis Mount | 0.8 mm | 0.031 " | 0.031 in | 0.8 mm |
