430400 Series

Catalog

CONN BARRIER STRIP 1CIRCUIT

Part	Terminal Screw Material	Mounting Type	Terminal Screw Finish	Operating Temperature	Material - Insulation	Material Flammability Rating	Features	Number of Wire Entries	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Number of Rows	Terminal Block Type	Barrier Type	Number of Circuits	Top Termination	Current Rating (Amps)	Bottom Termination	Bottom Termination	Number of Circuits [custom]	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]
Curtis Industries 430400-01-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	1	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	1	Screws	20 A	0.187 in	Quick Connect
Curtis Industries 430400-09-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	9	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)		Screws	20 A	0.187 in	Quick Connect	9	0.438 in	11.12 mm
Curtis Industries 430400-10-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	10	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	10	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm
Curtis Industries 430400-17-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	17	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	17	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm
Curtis Industries 430400-14-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	14	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	14	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm
Curtis Industries 430400-21-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	21	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	21	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm

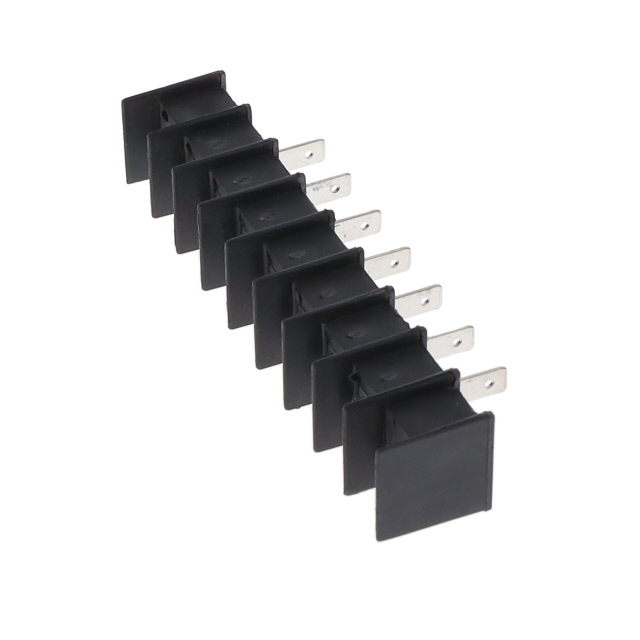

Curtis Industries 430400-07-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange		22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	7	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm	7
Curtis Industries 430400-15-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	15	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	15	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm
Curtis Industries 430400-18-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	18	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	18	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm
Curtis Industries 430400-12-0	Steel	Chassis Panel	Zinc	105 C	Polypropylene (PP)	UL94 V-0	Flange	12	22 AWG	12 AWG	600 V	1	Barrier Block	2 Wall (Dual)	12	Screws	20 A	0.187 in	Quick Connect		0.438 in	11.12 mm
