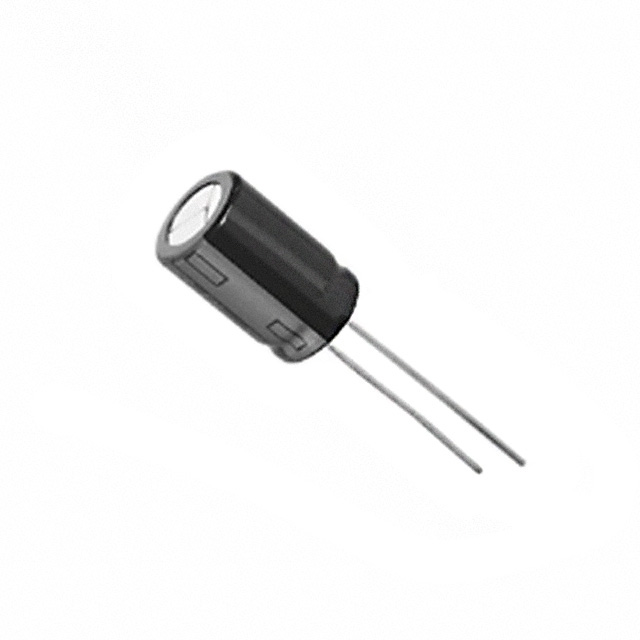

EEU-TP Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

ELECTROLYTIC CAPACITOR, TP SERIES, 2200 ΜF, 25 V, ± 20%, RADIAL LEADED, 5000 HOURS @ 125°C, POLAR

Part	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Capacitance	Ripple Current @ High Frequency	Voltage - Rated	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Tolerance	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Ratings	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

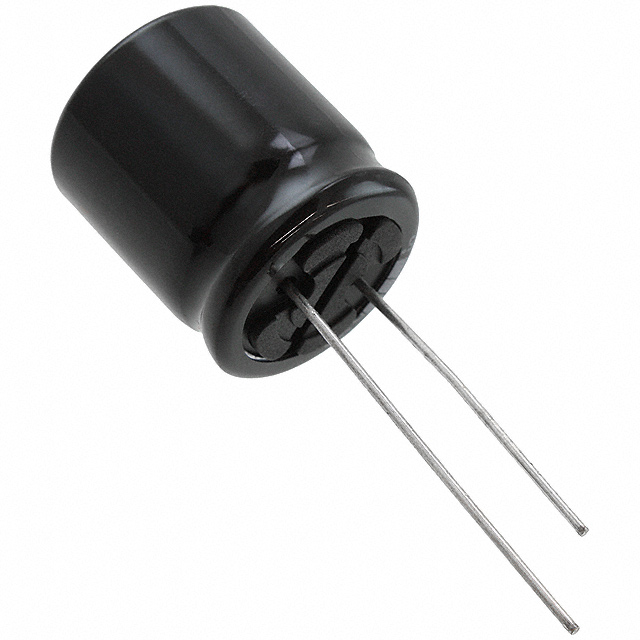

Panasonic Industrial Automation Sales EEU-TP1E222S	5000 Hrs	7.5 mm	0.295 in	2200 µF	2.25 A	25 VDC	Through Hole	Radial Can	22 mm	0.866 in	135 °C	-40 °C	Polar	20 %	2.16 A	0.709 "	18 mm	Automotive	AEC-Q200

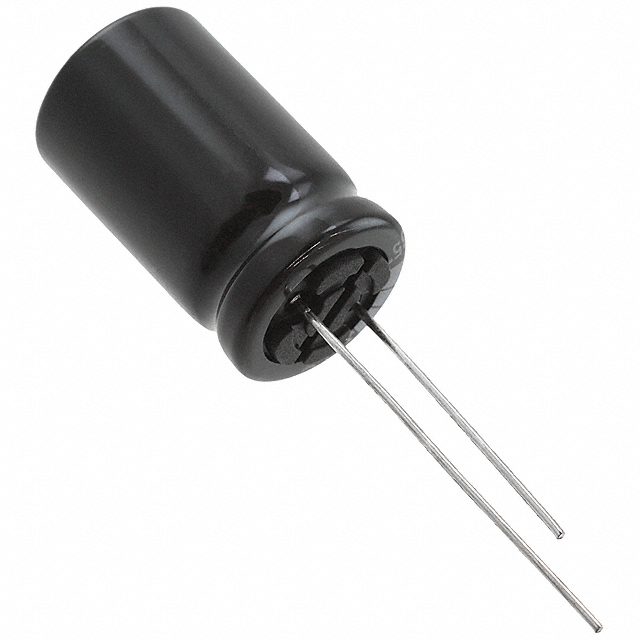

Panasonic Industrial Automation Sales EEU-TP1V471B	4000 Hrs	5 mm	0.197 in	470 µF	1.49 A	35 V	Through Hole	Radial Can	22 mm	0.866 in	135 °C	-40 °C	Polar	20 %	1.395 A	0.492 in	12.5 mm	Automotive	AEC-Q200
Panasonic Industrial Automation Sales EEU-TP1V202SB	5000 Hrs	7.5 mm	0.295 in	2 mF	2.47 A	35 V	Through Hole	Radial Can	27 mm	1.063 in	135 °C	-40 °C	Polar	20 %	2.368 A	0.709 "	18 mm	Automotive	AEC-Q200
Panasonic Industrial Automation Sales EEU-TP1E272S	5000 Hrs	7.5 mm	0.295 in	2700 µF	2.25 A	25 VDC	Through Hole	Radial Can	22 mm	0.866 in	135 °C	-40 °C	Polar	20 %	2.16 A	0.709 "	18 mm	Automotive	AEC-Q200

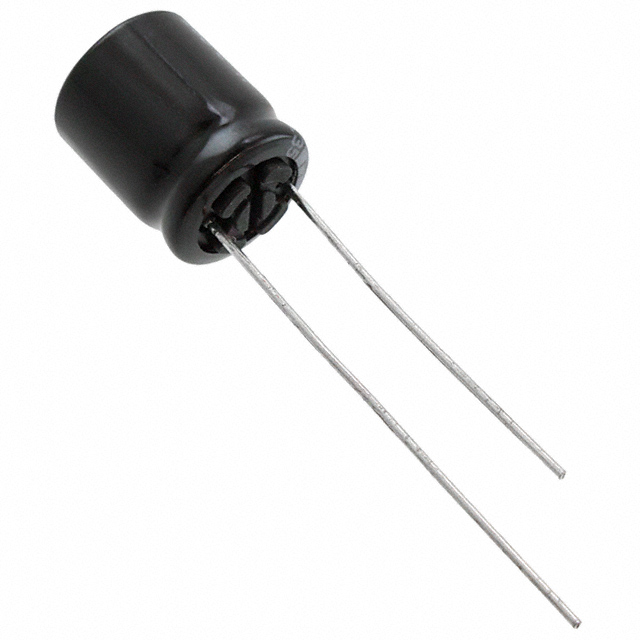

Panasonic Industrial Automation Sales EEU-TP1E221B	3000 Hrs	5 mm	0.197 in	220 µF	500 mA	25 VDC	Through Hole	Radial Can			135 °C	-40 °C	Polar	20 %	377 mA	0.394 in	10 mm	Automotive	AEC-Q200	14 mm	0.551 "
Panasonic Industrial Automation Sales EEU-TP1E472	5000 Hrs	7.5 mm	0.295 in	4700 µF	2.9 A	25 VDC	Through Hole	Radial Can			135 °C	-40 °C	Polar	20 %	2.784 A	0.709 "	18 mm	Automotive	AEC-Q200
Panasonic Industrial Automation Sales EEU-TP1V182SB	5000 Hrs	7.5 mm	0.295 in	1800 µF	2.47 A	35 V	Through Hole	Radial Can	27 mm	1.063 in	135 °C	-40 °C	Polar	20 %	2.368 A	0.709 "	18 mm	Automotive	AEC-Q200
Panasonic Industrial Automation Sales EEU-TP1V152S	5000 Hrs	7.5 mm	0.295 in	1.5 mF	2.25 A	35 V	Through Hole	Radial Can	22 mm	0.866 in	135 °C	-40 °C	Polar	20 %	2.16 A	0.709 "	18 mm	Automotive	AEC-Q200

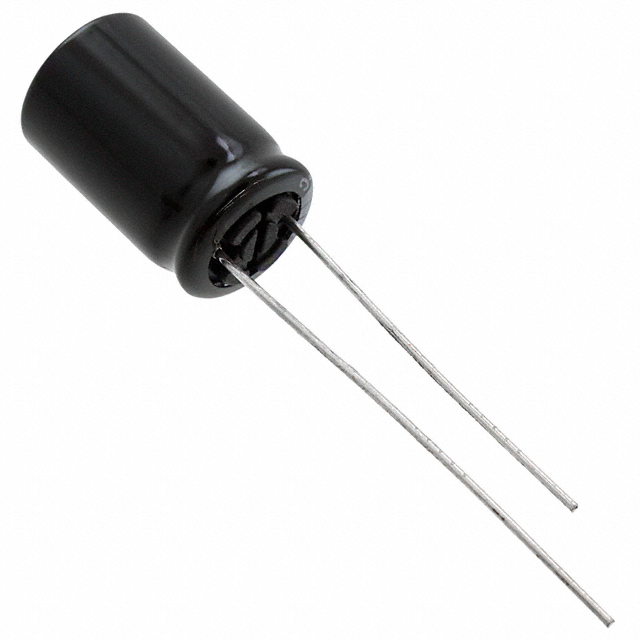

Panasonic Industrial Automation Sales EEU-TP1V271B	3000 Hrs	5 mm	0.197 in	270 µF	945 mA	35 V	Through Hole	Radial Can			135 °C	-40 °C	Polar	20 %	715 mA	0.394 in	10 mm	Automotive	AEC-Q200		0.689 in	17.5 mm

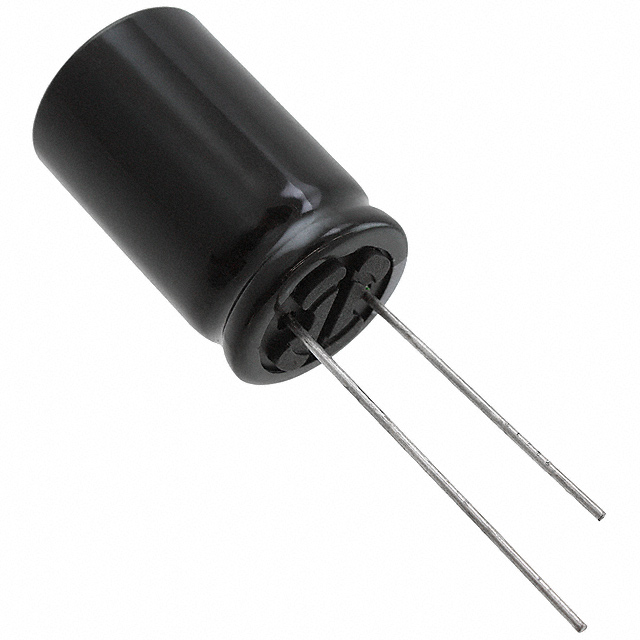

Panasonic Industrial Automation Sales EEU-TP1V162	5000 Hrs	7.5 mm	0.295 in	1600 µF	2.3 A	35 V	Through Hole	Radial Can	27 mm	1.063 in	135 °C	-40 °C	Polar	20 %	2.208 A	0.63 in	16 mm	Automotive	AEC-Q200
