S12B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

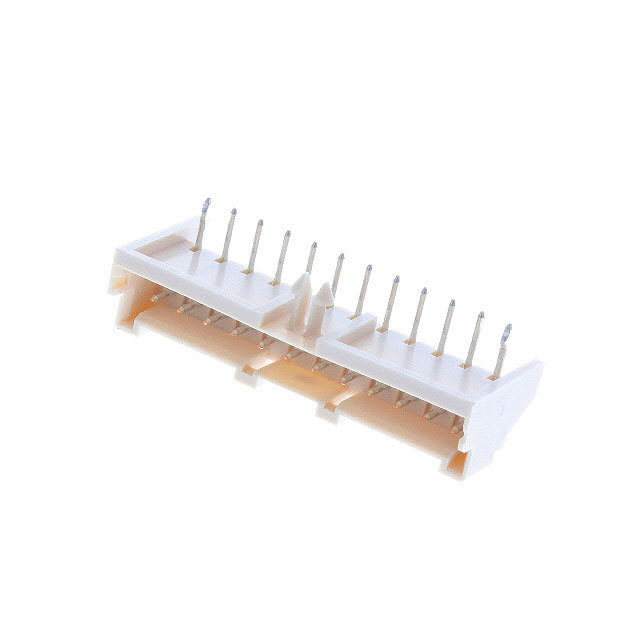

CONN HEADER R/A 12POS 2.5MM
| Part | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Voltage Rating | Termination | Material Flammability Rating | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Material | Contact Shape | Contact Type | Number of Positions Loaded | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Style | Shrouding | Current Rating (Amps) | Fastening Type | Number of Rows | Number of Positions | Insulation Height [z] | Insulation Height | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | 0.126 " | 3.2 mm | Glass Filled Nylon 6/6 Polyamide (PA66) | 250 V | Solder | UL94 V-0 | Natural | 2.5 mm | 0.098 in | Copper Alloy | Circular | Male Pin | All | Right Angle Through Hole | 85 °C | -25 °C | Header | Board to Cable/Wire | Shrouded - 4 Wall | 3 A | Locking Ramp | 1 | 12 | 0.299 " | 7.6 mm | |
 JST Sales America Inc. | Tin | 0.126 " | 3.2 mm | Glass Filled Nylon 6/6 Polyamide (PA66) | 250 V | Press-Fit Solder | UL94 V-0 | Natural | 2.5 mm | 0.098 in | Copper Alloy | Circular | Male Pin | All | Right Angle Through Hole | 85 °C | -25 °C | Header | Board to Cable/Wire | Shrouded - 4 Wall | 3 A | Locking Ramp | 1 | 12 | 0.299 " | 7.6 mm | Board Lock |
