045136 Series

Manufacturer: Molex

Catalog

MEGA-FIT 12 CIRCUIT 300MM

Part	Number of Rows	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Shielding	Contact Finish	Features	Contact Finish Thickness [custom]	Contact Finish Thickness [custom]	Connector Type	Length	Length	Length

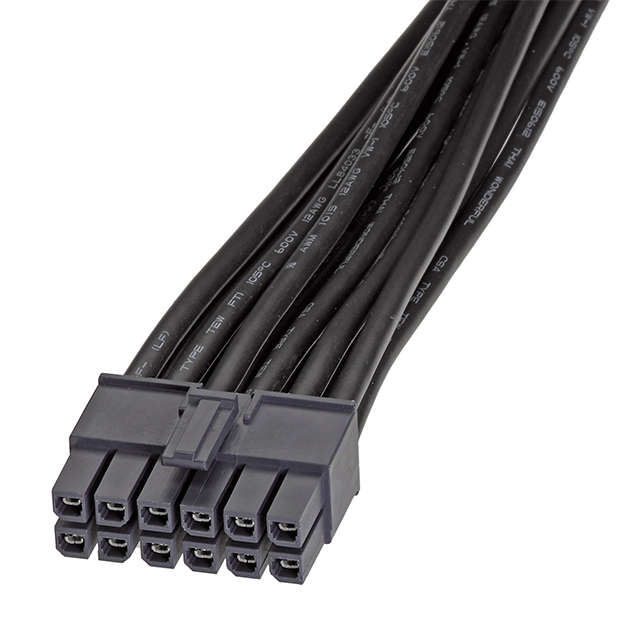

Molex 0451361203	2	12	Crimp	0.224 in	5.7 mm	0.984 '	11.81 "	300 mm	Unshielded	Tin	Latch Lock	1.52 µm	60 µin	Socket to Socket

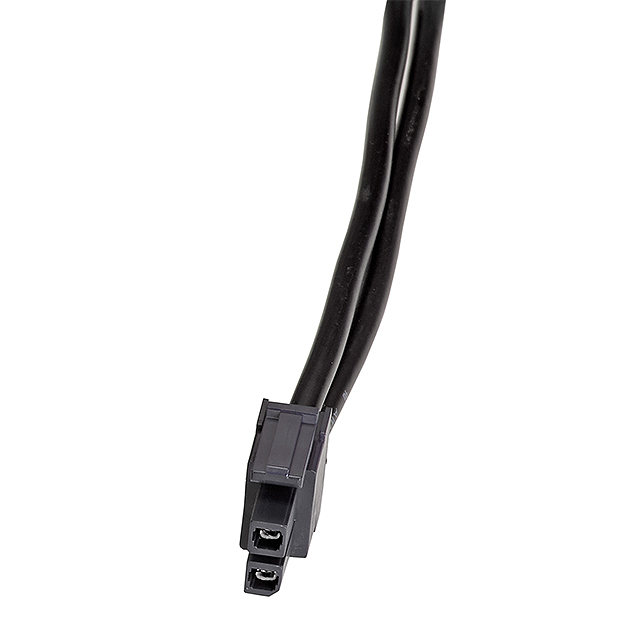

Molex 0451360203	2	2	Crimp	0.224 in	5.7 mm	0.984 '	11.81 "	300 mm	Unshielded	Tin	Latch Lock	1.52 µm	60 µin	Socket to Socket

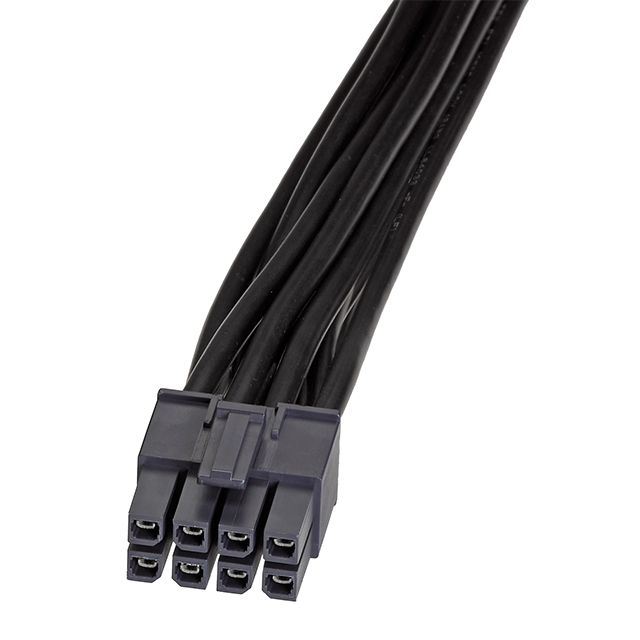

Molex 0451360801	2	8	Crimp	0.224 in	5.7 mm				Unshielded	Tin	Latch Lock	1.52 µm	60 µin	Socket to Socket	150 mm	5.91 "	0.492 ft

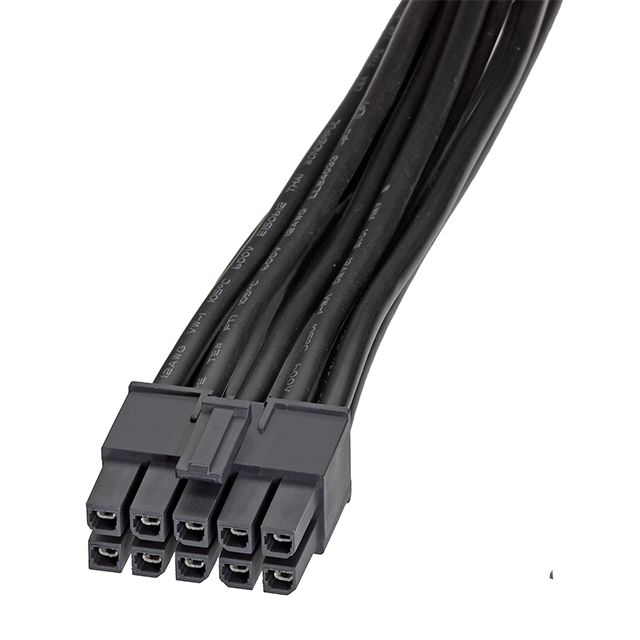

Molex 0451361010	2	10	Crimp	0.224 in	5.7 mm	3.28 ft		1 m	Unshielded	Tin	Latch Lock	1.52 µm	60 µin	Socket to Socket
Molex 0451360803	2	8	Crimp	0.224 in	5.7 mm	0.984 '	11.81 "	300 mm	Unshielded	Tin	Latch Lock	1.52 µm	60 µin	Socket to Socket
Molex 0451361003	2	10	Crimp	0.224 in	5.7 mm	0.984 '	11.81 "	300 mm	Unshielded	Tin		1.52 µm	60 µin	Socket to Socket
Molex 0451360210	2	2	Crimp	0.224 in	5.7 mm	3.28 ft		1 m	Unshielded	Tin	Latch Lock	1.52 µm	60 µin	Socket to Socket
