580-M25 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN MICRO-D FEMALE 25P SC 30U"
| Part | Voltage Rating | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Color | Dielectric Material | Contact Material | Contact Type | Shell Material, Finish | Contact Finish | Features | Connector Type | Material Flammability Rating | Number of Rows [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Connector Style | Number of Positions | Flange Feature | Shell Size, Connector Layout [y] | Shell Size, Connector Layout [x] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

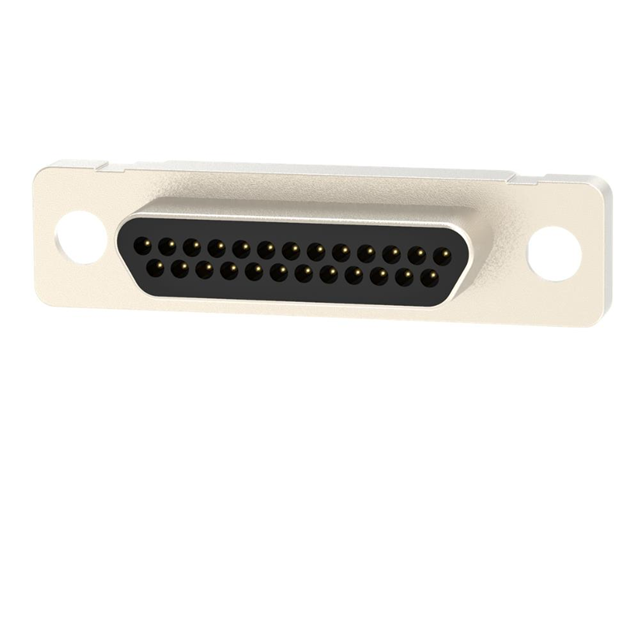

 NorComp Inc. | 60 VDC | 26 AWG | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Receptacle Female Sockets | UL94 V-0 | 2 | Panel Mount | 30 Áin | 0.76 Ám | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in | |
 NorComp Inc. | 60 VDC | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Receptacle Female Sockets | UL94 V-0 | 2 | Panel Mount Through Hole | 30 Áin | 0.76 Ám | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in | Solder | |

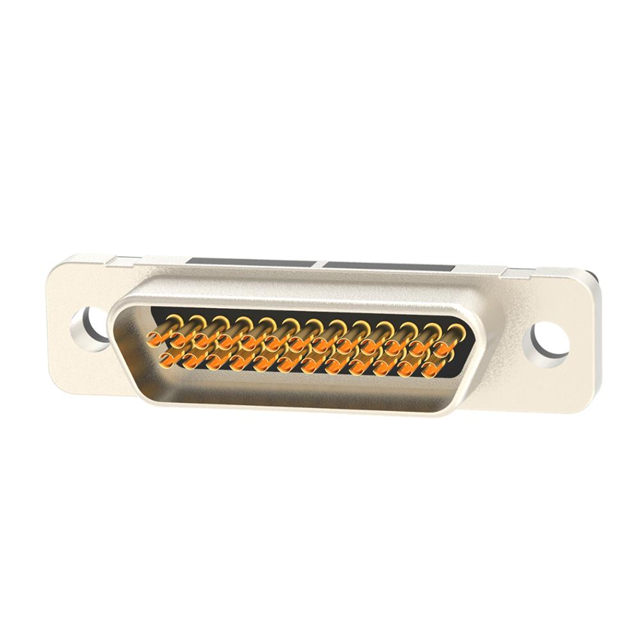

 NorComp Inc. | 60 VDC | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Plug Male Pins | UL94 V-0 | 2 | Panel Mount Through Hole | 30 Áin | 0.76 Ám | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in | Solder | |

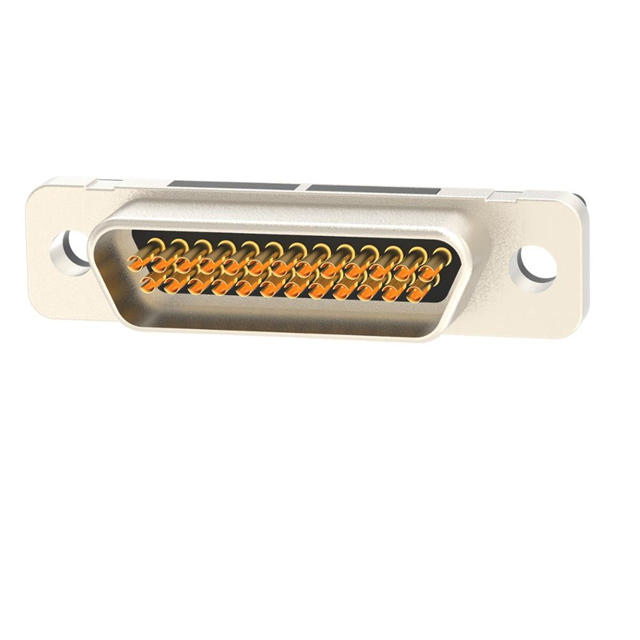

NorComp Inc. | 60 VDC | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Plug Male Pins | UL94 V-0 | 2 | Panel Mount Through Hole | 15 µin | 0.38 µm | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in | Solder | |

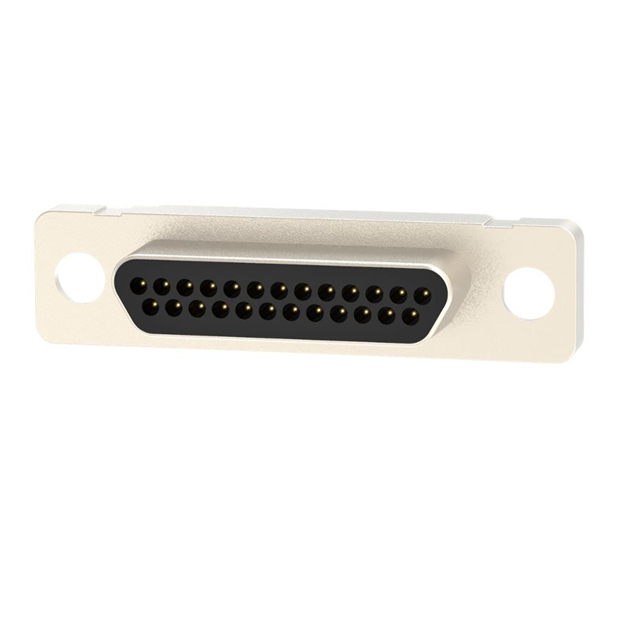

NorComp Inc. | 60 VDC | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Receptacle Female Sockets | UL94 V-0 | 2 | Panel Mount Through Hole | 15 µin | 0.38 µm | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in | Solder | |
NorComp Inc. | 60 VDC | 26 AWG | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Receptacle Female Sockets | UL94 V-0 | 2 | Panel Mount | 15 µin | 0.38 µm | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in | |
 NorComp Inc. | 60 VDC | 26 AWG | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Plug Male Pins | UL94 V-0 | 2 | Panel Mount | 15 µin | 0.38 µm | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in | |
NorComp Inc. | 60 VDC | 26 AWG | 125 °C | -40 C | Black | Liquid Crystal Polymer (LCP) | Brass | Signal | Nickel Plated Zinc Alloy | Gold | Shielded | Plug Male Pins | UL94 V-0 | 2 | Panel Mount | 30 Áin | 0.76 Ám | 2 A | D-Type Micro-D | 25 | Housing/Shell (Unthreaded) | 0.043 in | 0.05 in |
