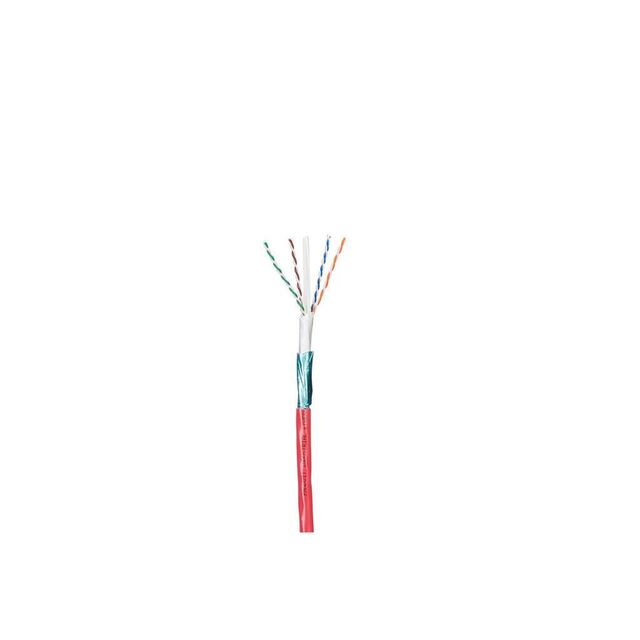

IURH6X Series
Manufacturer: Panduit Corp
Beta
⌘K
ETHERNET CABLES / NETWORKING CABLES INDUSTRIAL 600V, CATEGORY 6A, 4-PAIR, 2
| Part | Usage | Number of Conductors | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Conductor Strand | Shield Type | Conductor Material | Conductor Insulation | Jacket Color | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Industrial Network | 8 | Poly-Vinyl Chloride (PVC) Riser | UL Style 21047 | 8.05 mm | 0.317 in | Multi-Pair Cat6a | 23 AWG | Solid | Foil | Copper | High Density Polyethylene (HDPE) | Black | 1000 ft | 304.8 m | -40 °C | 75 ░C | Flame Retardant Oil Resistant UV Resistant |
 Panduit Corp | Industrial Network | 8 | Poly-Vinyl Chloride (PVC) Riser | UL Style 21047 | 8.05 mm | 0.317 in | Multi-Pair Cat6a | 23 AWG | Solid | Foil | Copper | High Density Polyethylene (HDPE) | Red | 1000 ft | 304.8 m | -40 °C | 75 ░C | Oil Resistant UV Resistant |
