PR36MF Series

Catalog

SSR RELAY SPST-NO 600MA 0-240V

Part	Circuit	Voltage - Input	Mounting Type	Voltage - Load (Min)	Voltage - Load (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Termination Style	Package Name	Load Current	Approval Agency	Package Length	Package Features	Package Width	Zero Crossing Circuit	Current - LED Trigger (Ift) (Max)	Current - DC Forward (If) (Max)	Static dV/dt (Min)	Voltage - Isolation	Voltage - Off State	Current - On State (It (RMS)) (Max)	Voltage - Forward (Vf) (Typ)	Number of Channels	Current - Hold (Ih)	Turn On Time (Max)

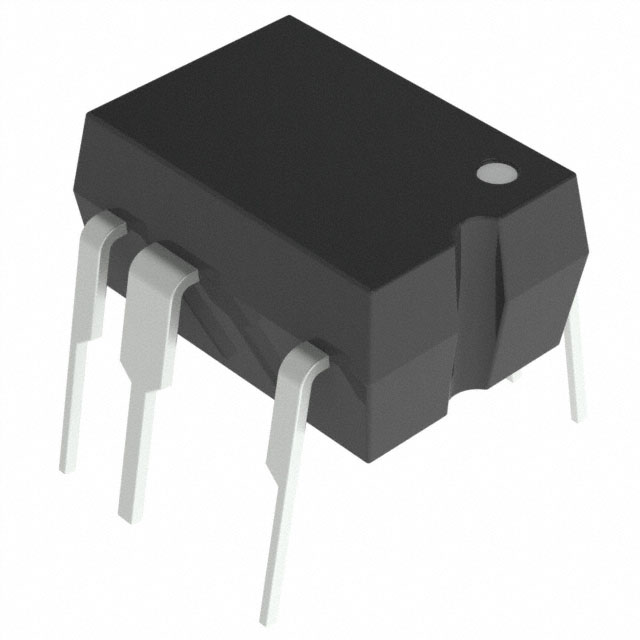

Sharp Microelectronics PR36MF21NSZ	SPST-NO (1 Form A)	1.2 VDC	Through Hole	0 V	240 V	85 °C	-30 °C	AC Zero Cross	PC Pin	8-DIP	600 mA	CSA UL VDE	0.3 in	7 Leads	7.62 mm
Sharp Microelectronics PR36MF21YSZF			Through Hole			85 °C	-30 °C	Power Triac		6-DIP		CSA UR VDE	0.3 in		7.62 mm	Yes	10 mA	50 mA	100 V/µs	4000 Vpk	600 V	600 mA	1.2 V	1	25 mA	50 µs
