High Speed / Modular Connectors
High Speed / Modular Connectors
High Speed / Modular Connectors
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Columns | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Number of Rows | Number of Positions | Connector Style | Termination | Color | Contact Finish | Connector Type | Mounting Type | Contact Layout, Typical | Contact Layout, Typical | Current Rating (Amps) | Features | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

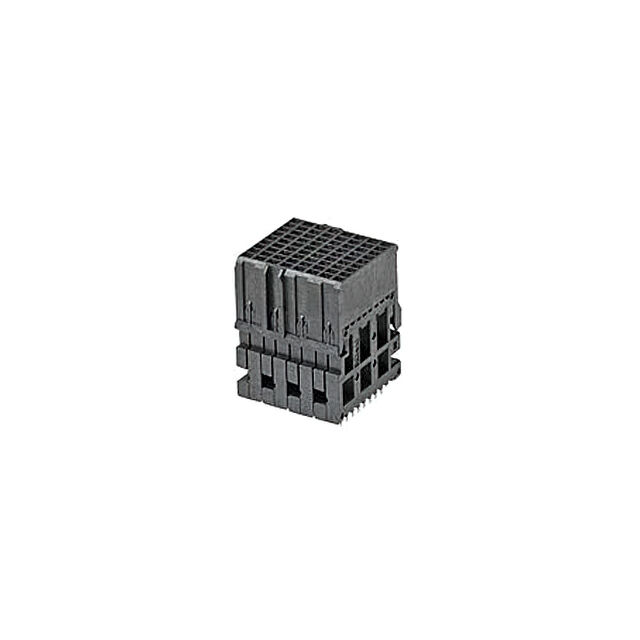

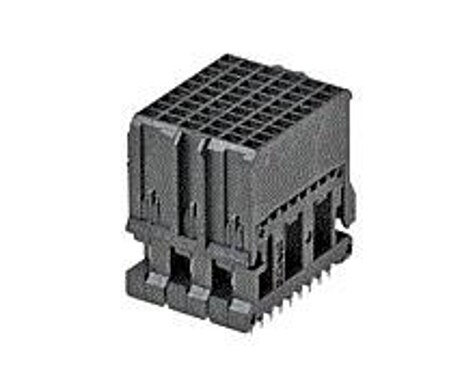

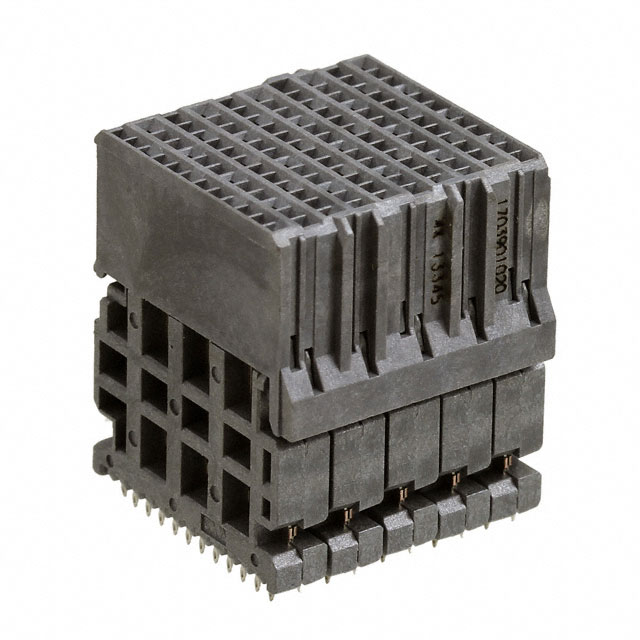

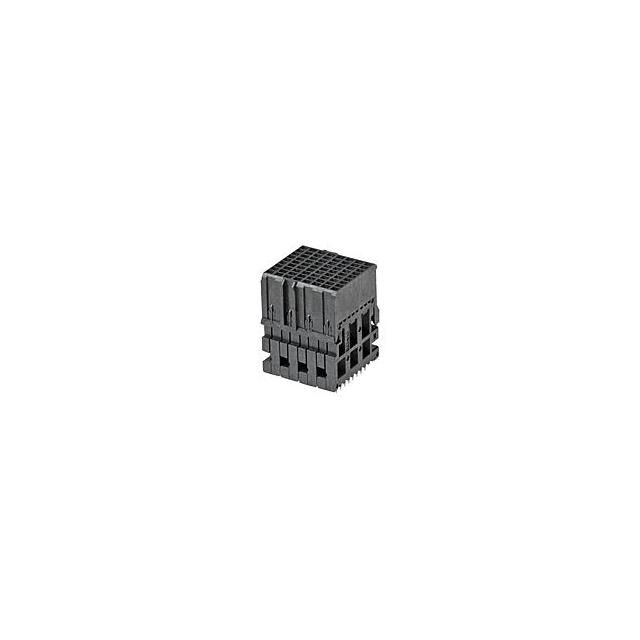

Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 10 | 30 Áin | 0.76 Ám | All | 9 | 90 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 30 Differential Pairs | |||||
Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 16 | 30 Áin | 0.76 Ám | All | 9 | 144 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 48 Differential Pairs | |||||
Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 8 | 30 Áin | 0.76 Ám | All | 9 | 72 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 24 Differential Pairs | |||||
Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 8 | 30 Áin | 0.76 Ám | All | 9 | 72 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 24 Differential Pairs | |||||
Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 6 | 30 Áin | 0.76 Ám | All | 9 | 54 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 18 Differential Pairs | |||||
Molex | ||||||||||||||||||||||
Molex | 30 VAC | -55 C | 85 °C | UL94 V-0 | 10 | 30 Áin | 0.76 Ám | All | 9 | 90 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 30 Differential Pairs | 75 mA | Board Guide | 1.9 mm | 0.075 in | |
Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 10 | 30 Áin | 0.76 Ám | All | 9 | 90 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 30 Differential Pairs | |||||
Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 16 | 30 Áin | 0.76 Ám | All | 9 | 144 | Impact | Press-Fit | Black | Gold | Receptacle Female Sockets | Through Hole | 48 Differential Pairs |
