DK2.5N Series
Manufacturer: Dinkle Corporation, USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SCREW TERM BLK FEED THROUGH 22~1
| Part | Material Flammability Rating | Stripping Length (Min) | Stripping Length (Max) | Material - Insulation | Number of Positions | Voltage - UL | Number of Levels | Termination Style | Current - UL | Wire Gauge or Range - mm² (Minimum) | Wire Gauge or Range - mm² (Maximum) | Terminal Width | Wire Gauge or Range - AWG (Min) | Wire Gauge or Range - AWG (Max) | Voltage - IEC | Current - IEC | Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

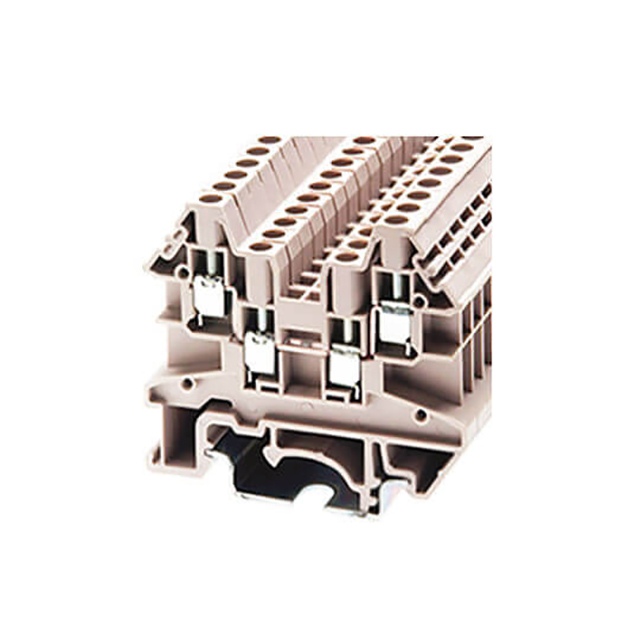

 Dinkle Corporation, USA | UL94 V-0 | 9 mm | 11 mm | Nylon PA Polyamide | 4 | 600 V | 1 | Screw | 20 A | 0.14 mm² | 2.5 mm² | 5.1 mm | 12 AWG | 22 AWG | 1000 V | 24 A | Feed Through | Gray |

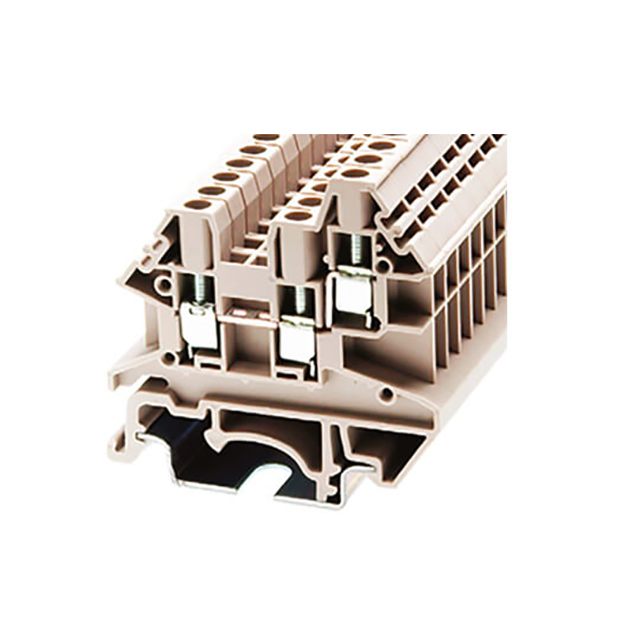

 Dinkle Corporation, USA | UL94 V-0 | 9 mm | 11 mm | Nylon PA Polyamide | 3 | 600 V | 1 | Screw | 20 A | 0.14 mm² | 2.5 mm² | 5.1 mm | 12 AWG | 22 AWG | 1000 V | 24 A | Feed Through | Gray |
