XW6T-CO Series

Manufacturer: Omron Automation and Safety

Catalog

TERM BLK 12POS BLUE

Part	Height (Max) [z]	Height (Max) [z]	Material - Insulation	Stripping Length	Length [x]	Length [x]	Material Flammability Rating	Terminal - Width [y]	Current - IEC	Mounting Type	Housing Color	Termination Style	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Current - UL	Voltage - IEC	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Length	Length	Height (Max) [z]	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - mm²
Omron Automation and Safety XW6T-COM2.5X12BL	1.421 in	36.1 mm	Nylon Polyamide (PA)	10 mm	82.6 mm	3.252 in	UL94 V-0	17.8 mm	24 A	DIN Rail	Blue	Push In Spring	12	0.14 mm²	4 mm²	1	20 A	800 V	Middle	26 AWG	14 AWG	Block of 3 Indicators
Omron Automation and Safety XW6T-COM2.5X8RD	1.421 in	36.1 mm	Nylon Polyamide (PA)	10 mm	82.6 mm	3.252 in	UL94 V-0	12.6 mm	24 A	DIN Rail	Red	Push In Spring	8	0.14 mm²	4 mm²	2	20 A	800 V	Middle	26 AWG	14 AWG	Indicators
Omron Automation and Safety XW6T-COM2.5																			Extension Terminal
Omron Automation and Safety XW6T-COM2.5X20YL	1.421 in	36.1 mm	Nylon Polyamide (PA)	10 mm	82.6 mm	3.252 in	UL94 V-0		24 A	DIN Rail	Yellow	Push In Spring	20	0.14 mm²	4 mm²	1	20 A	800 V	Middle	26 AWG	14 AWG	Block of 5 Indicators

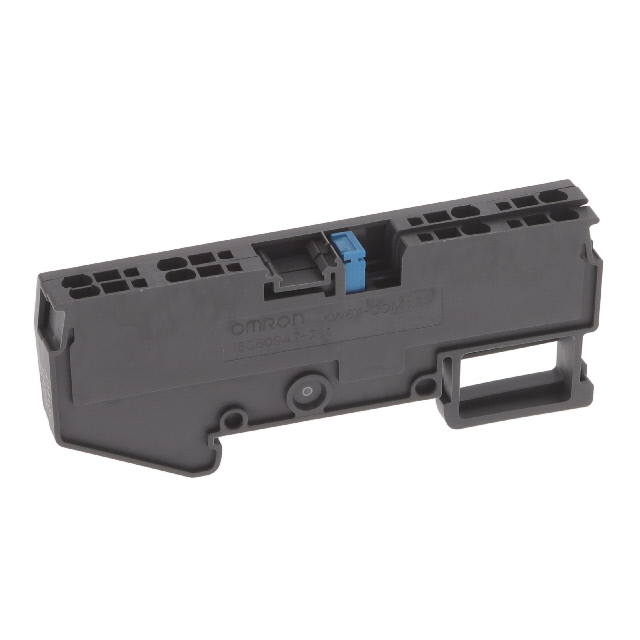

Omron Automation and Safety XW6T-COM1.5X8BL		31.3 mm	Nylon Polyamide (PA)				UL94 V-0	9.2 mm	17.5 A	DIN Rail		Push In Spring	8			1		500 V	Middle				3.071 in	78 mm	1.232 in	55 °C	-40 C	1.5 mm²
Omron Automation and Safety XW6T-COM1.5X20YL		31.3 mm	Nylon Polyamide (PA)	8 mm			UL94 V-0	19.7 mm	17.5 A	DIN Rail	Yellow	Push In Spring	20	0.14 mm²	1.5 mm²	1	5 A	500 V	Middle	26 AWG	14 AWG	Block of 5 Indicators	3.071 in	78 mm	1.232 in
Omron Automation and Safety XW6T-COM1.5X8YL		31.3 mm	Nylon Polyamide (PA)	8 mm			UL94 V-0	9.2 mm	17.5 A	DIN Rail	Yellow	Push In Spring	8	0.14 mm²	1.5 mm²	2	5 A	500 V	Middle	26 AWG	14 AWG	Indicators	3.071 in	78 mm	1.232 in
Omron Automation and Safety XW6T-COM2.5X20RD	1.421 in	36.1 mm	Nylon Polyamide (PA)	10 mm	82.6 mm	3.252 in	UL94 V-0		24 A	DIN Rail	Red	Push In Spring	20	0.14 mm²	4 mm²	1	20 A	800 V	Middle	26 AWG	14 AWG	Block of 5 Indicators
