9WF0924 Series

Catalog

FAN AXIAL 92X32MM 24VDC WIRE

Part	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Material - Frame	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Noise	RPM	Width [y]	Fan Type	Bearing Type	Approval Agency	Voltage - Rated	Air Flow	Air Flow	Static Pressure	Static Pressure	Features	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 9WF0924H202	40000 Hrs	0.35 A	Plastic	Plastic	8.4 W	92 mm	92 mm	Oil Resistant	0.408 lb	185.07 g	-20 ░C	70 °C	2 Wire Leads	56 dB	6500 RPM	32 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	86.5 CFM	2.42 m³/min
Sanyo Denki America Inc. 9WF0924S201	40000 Hrs	0.5 A	Plastic	Plastic	12 W	92 mm	92 mm	Oil Resistant	0.408 lb	185.07 g	-20 ░C	70 °C	3 Wire Leads	58 dB(A)	7300 RPM	32 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	98.9 CFM	2.78 m³/min	1.02 in H2O	255 Pa	Speed Sensor (Tach)

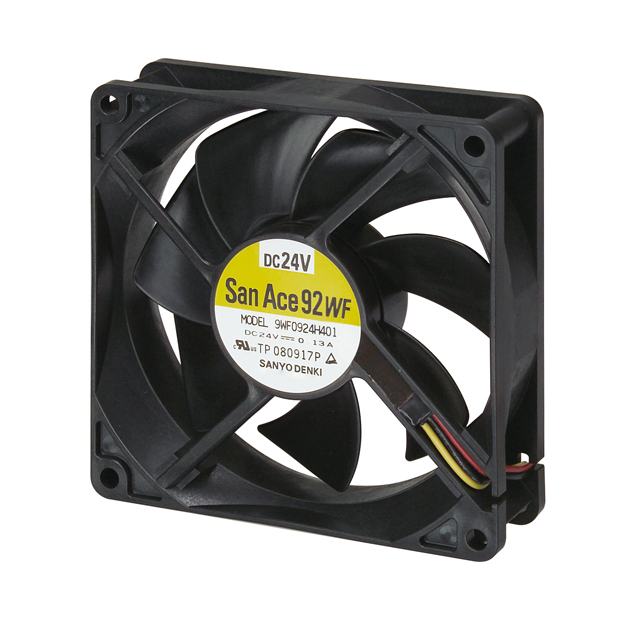

Sanyo Denki America Inc. 9WF0924H401	40000 Hrs		Plastic	Plastic	3.12 W	92 mm	92 mm	Oil Resistant			-20 ░C	70 °C	3 Wire Leads	42.5 dB	3900 RPM	25 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	51.2 CFM	1.43 mł/min	0.26 in H2O	64.8 Pa	Speed Sensor (Tach)	0.264 lb	119.75 g
Sanyo Denki America Inc. 9WF0924S202	40000 Hrs	0.5 A	Plastic	Plastic	12 W	92 mm	92 mm	Oil Resistant	0.408 lb	185.07 g	-20 ░C	70 °C	2 Wire Leads	58 dB(A)	7300 RPM	32 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	98.9 CFM	2.78 m³/min	1.02 in H2O	255 Pa
Sanyo Denki America Inc. 9WF0924H402	40000 Hrs		Plastic	Plastic	3.12 W	92 mm	92 mm	Oil Resistant			-20 ░C	70 °C	2 Wire Leads	42.5 dB	3900 RPM	25 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	51.2 CFM	1.43 mł/min	0.26 in H2O	64.8 Pa		0.265 lb	120.2 g
Sanyo Denki America Inc. 9WF0924H4011	40000 Hrs		Plastic	Plastic	3.12 W	92 mm	92 mm	Oil Resistant			-20 ░C	70 °C	3 Wire Leads	42.5 dB	3900 RPM	25 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	51.2 CFM	1.43 mł/min	0.26 in H2O	64.8 Pa	Speed Sensor (Tach)	0.265 lb	120.2 g
Sanyo Denki America Inc. 9WF0924S2011	40000 Hrs	0.5 A	Plastic	Plastic	12 W	92 mm	92 mm	Oil Resistant	0.408 lb	185.07 g	-20 ░C	70 °C	3 Wire Leads	58 dB(A)	7300 RPM	32 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	98.9 CFM	2.78 m³/min	1.02 in H2O	255 Pa	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WF0924H4D01	40000 Hrs		Plastic	Plastic	3.12 W	92 mm	92 mm	Oil Resistant			-20 ░C	70 °C	3 Wire Leads	42.5 dB	3900 RPM	25 mm	Tubeaxial	Ball	CSA TUV UL	24 VDC	51.2 CFM	1.43 mł/min	0.26 in H2O	64.8 Pa	Locked Rotor Sensor	0.265 lb	120.2 g
