429-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER SMD 20POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Termination	Fastening Type	Overall Contact Length	Overall Contact Length	Insulation Color	Insulation Material	Shrouding	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Contact Finish - Mating	Mounting Type	Number of Positions [custom]
Mill-Max Manufacturing Corp. 429-10-220-00-560000	10 Áin	0.25 çm	20	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
Mill-Max Manufacturing Corp. 429-10-218-00-560000	10 Áin	0.25 çm	18	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
Mill-Max Manufacturing Corp. 429-10-270-00-560000	10 Áin	0.25 çm	70	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
Mill-Max Manufacturing Corp. 429-10-216-00-560000	10 Áin	0.25 çm	16	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
Mill-Max Manufacturing Corp. 429-10-208-00-560000	10 Áin	0.25 çm	8	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount

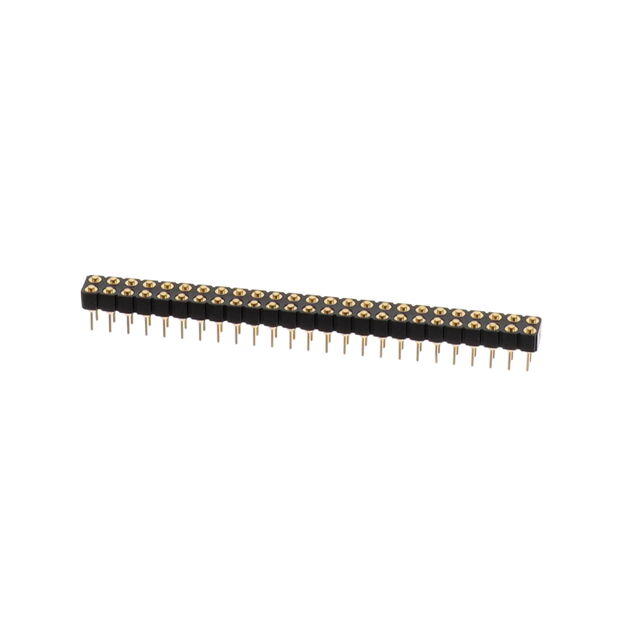

Mill-Max Manufacturing Corp. 429-10-250-00-560000	10 Áin	0.25 çm	50	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
Mill-Max Manufacturing Corp. 429-10-214-00-560000	10 Áin	0.25 çm	14	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
Mill-Max Manufacturing Corp. 429-10-234-00-560000	10 Áin	0.25 çm		Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount	34
Mill-Max Manufacturing Corp. 429-10-222-00-560000	10 Áin	0.25 çm	22	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
Mill-Max Manufacturing Corp. 429-10-266-00-560000	10 Áin	0.25 çm	66	Header	0.25 µm	10 µin	2	Gold	3.07 mm	0.121 in	Circular	0.1 in	2.54 mm	All	Solder	Push-Pull	7 mm	0.276 in	Black	Thermoplastic	Unshrouded	0.1 "	2.54 mm	Brass Alloy	Male Pin	Gold	Surface Mount
