HTB18 Series

Catalog

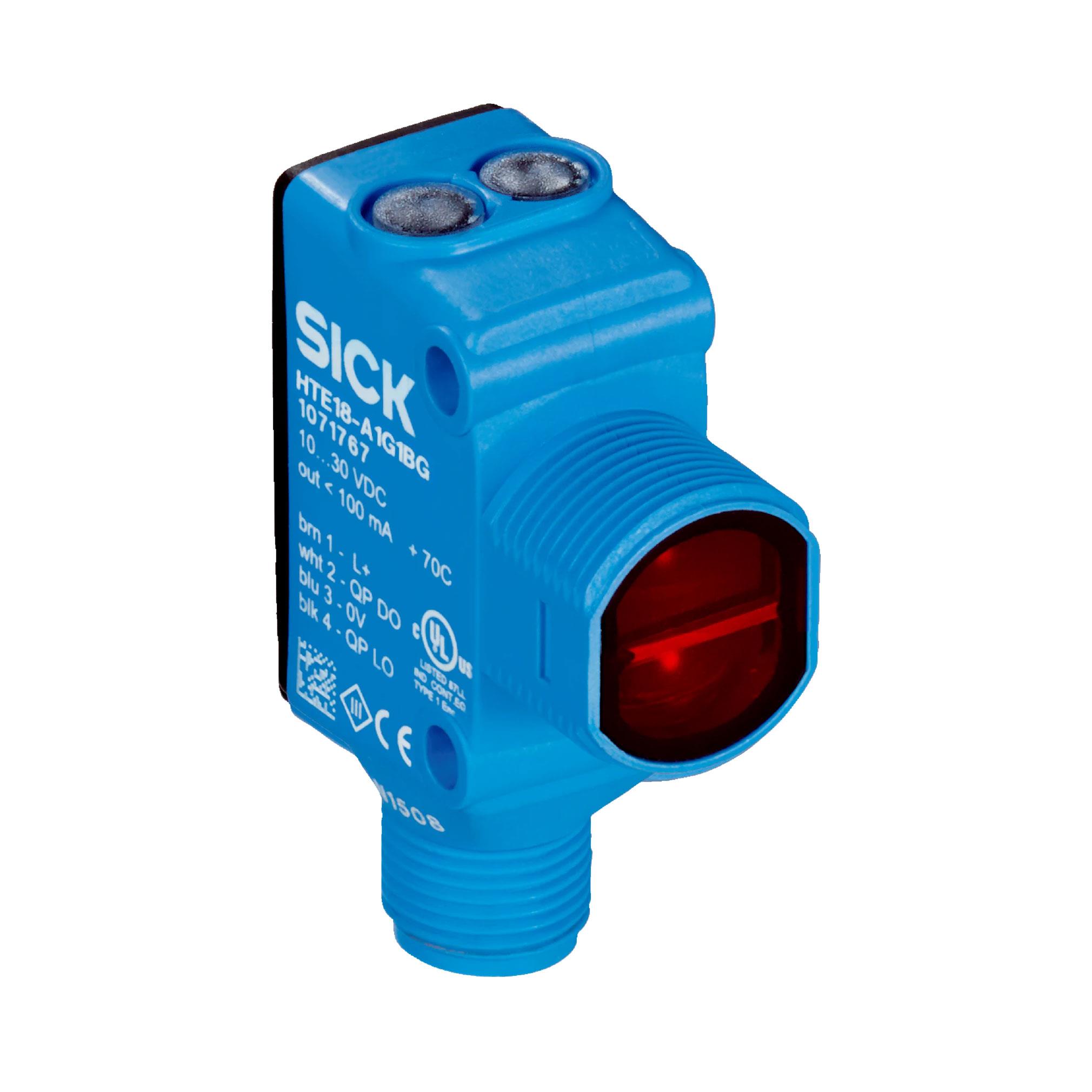

PHOTOELECTRIC SENSOR, 300MM, NPN-PNP-30V ROHS COMPLIANT: YES

Part	Light Source	Response Time	Connection Method	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Sensing Method	Sensing Distance	Sensing Distance	Adjustment Type	Cable Length	Cable Length
SICK, Inc. HTB18-B4A2AAD06	Red (631nm)	500 µs	Connector M12	IP67	5.906 in	5 mm	0.197 in	15 cm	10 VDC	30 VDC	-40 ¯C	65 °C	NPN PNP	Proximity
SICK, Inc. 1085437	Red (631nm)	500 µs	Connector M12	IP67	1.969 "	5 mm	0.197 in	50 mm	10 VDC	30 VDC	-40 ¯C	65 °C	NPN PNP	Proximity
SICK, Inc. 1074760	Red (631nm)	500 µs	Connector M12	IP67					10 VDC	30 VDC	-40 ¯C	65 °C	NPN	Proximity	5 mm 10 cm	0.197 in 3.937 in
SICK, Inc. 1078528	Red (631nm)	500 µs	Connector M8	IP67	11.811 " 300 mm		0.197 in 5 mm		10 VDC	30 VDC	-40 ¯C	65 °C	NPN PNP	Proximity			Adjustable Potentiometer
SICK, Inc. 1080551	Red (631nm)	500 µs	Cable with Connector	IP67	5.906 in	5 mm	0.197 in	15 cm	10 VDC	30 VDC	-40 ¯C	65 °C	PNP	Proximity			Adjustable Potentiometer	5.906 in	150 mm
SICK, Inc. 1079042	Red (631nm)	500 µs	Cable with Connector	IP67	11.811 " 300 mm		0.197 in 5 mm		21.6 VDC	250 VDC	-40 ¯C	65 °C		Proximity			Adjustable Potentiometer	5.906 in	150 mm
SICK, Inc. 1076841	Red (631nm)	500 µs	Connector M12	IP67	5.906 in	5 mm	0.197 in	15 cm	10 VDC	30 VDC	-40 ¯C	65 °C	PNP	Proximity
SICK, Inc. 1079118	Red (631nm)	500 µs	Cable with Connector	IP67					10 VDC	30 VDC	-40 ¯C	65 °C	NPN PNP	Proximity	5 mm 10 cm	0.197 in 3.937 in	Adjustable Potentiometer	5.906 in	150 mm
SICK, Inc. 1080813	Red (631nm)	500 µs	Connector M8	IP67	11.811 " 300 mm		0.197 in 5 mm		10 VDC	30 VDC	-40 ¯C	65 °C	PNP	Proximity			Adjustable Potentiometer
SICK, Inc. 1082348	Red (631nm)	500 µs	Cable with Connector	IP67	11.811 " 300 mm		0.197 in 5 mm		10 VDC	30 VDC	-40 ¯C	65 °C	NPN PNP	Proximity			Adjustable Potentiometer	11.81 "	0.3 m
