01520001TXN941 Series

FUSEHOLDER-ASSORT. SREWS/TERMINALS/COVER

Catalog

FUSEHOLDER-ASSORT. SREWS/TERMINALS/COVER

Part	Mounting Type	Number of Circuits	Current Rating (Amps)	Termination Style	Voltage	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuse Type	For Use With/Related Products	Fuseholder Type
LITTELFUSE 01520001TXN941	Free Hanging (In-Line)	1	60 A	Screw Terminal	32 V	0.374 "	29.5 mm	9.5 mm	1.161 "	Blade	Maxi (ATX)	Holder

Catalog

FUSEHOLDER-ASSORT. SREWS/TERMINALS/COVER

Description

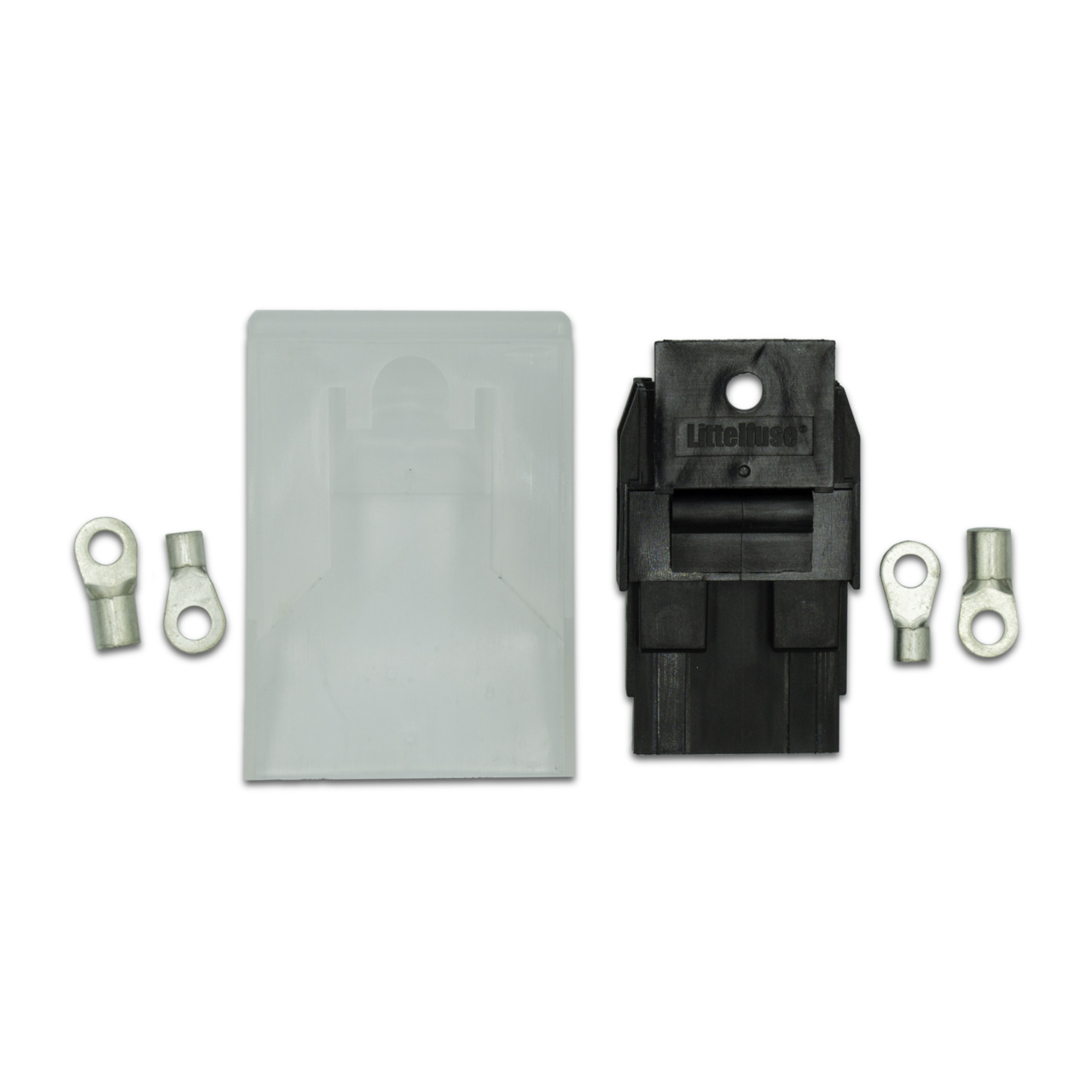

The MAXI® MAB Series 32V In-Line Screw Terminal Fuse Holder is designed to safely and easily replace hard-to-change fusible link wire. Compatible with up to 60-amp MAXI® blade fuses (sold separately), this automotive fuse holder is ideal for high-amp audio circuit protection. An interlocking fuse holder block feature allows 2-pole installation. This configuration of the MAXI® MAB Series screw terminal fuse holder (01520001TXN941) includes a black body with a UL 94 V-2 flammability rating, terminals, M5 screws, and a protective cover.
