LWTVSG Series

Catalog

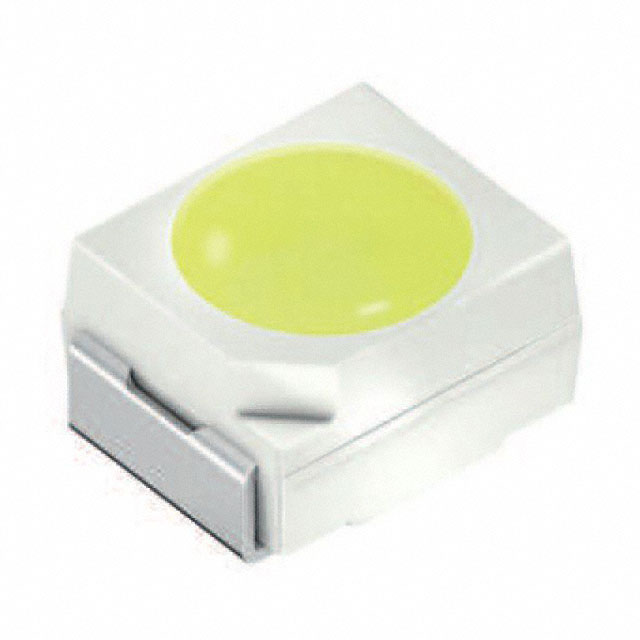

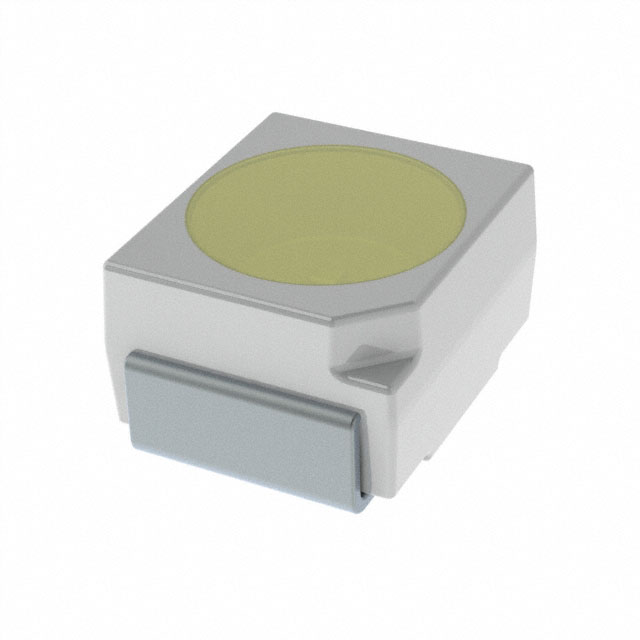

LED WHITE DIFFUSED 2PLCC SMD

Part	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Viewing Angle	Color	Mounting Type	Lens Style	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Current - Test	Supplier Device Package	Lens Size [diameter]	Height (Max) [z]	Configuration	Millicandela Rating	Height (Max) [Max] [z]
ams-OSRAM USA INC. LW TVSG.BB-AZBZ-JC-1-20-R18-Z-PRE	0.08 mm	3.05 V	Diffused	120 °	White	Surface Mount	Round with Flat Top	2-PLCC	2.8 mm	3.2 mm	White	20 mA	2-PLCC	2.4 mm Dia
ams-OSRAM USA INC. LW TVSG.CB-BXCX-JKPL-Z486-20-R18-Z		3.05 V	Diffused	120 °	White	Surface Mount	Round with Flat Top	2-PLCC	2.8 mm	3.2 mm	Yellow	20 mA	2-PLCC	2.4 mm Dia	1.93 mm	Standard	2550 mcd
ams-OSRAM USA INC. LW TVSG.BB-BXCX-JBNC-Z486-20-R18-Z		3.05 V	Diffused	120 °	White	Surface Mount	Round with Flat Top	2-PLCC	2.8 mm	3.2 mm	Yellow	20 mA	2-PLCC	2.4 mm Dia		Standard	2550 mcd	1.86 mm
ams-OSRAM USA INC. LW TVSG.CB-AZBZ-JKPL-Z486-20-R18-Z		3.05 V	Diffused	120 °	White	Surface Mount	Round with Flat Top	2-PLCC	2.8 mm	3.2 mm	Yellow	20 mA	2-PLCC	2.4 mm Dia	1.93 mm	Standard	2150 mcd
ams-OSRAM USA INC. LW TVSG.CB-AYCX-FK0PN0-Z486-20-R18-Z		3.05 V	Clear	120 °	White	Surface Mount	Round with Flat Top	2-PLCC	2.8 mm	3.2 mm	Yellow	20 mA	2-PLCC	2.4 mm Dia	2.13 mm		2300 mcd
ams-OSRAM USA INC. LW TVSG.BB-AZBZ-FBKC-Z486-20-R18-Z		3.05 V	Diffused	120 °	White	Surface Mount	Round with Flat Top	2-PLCC	2.8 mm	3.2 mm	Yellow	20 mA	2-PLCC	2.4 mm Dia		Standard	2150 mcd	1.86 mm
ams-OSRAM USA INC. LW TVSG.VN-AZBZ-1I7J-1-20-R18-Z		3.05 V	Diffused	120 °	White	Surface Mount	Round with Flat Top	2-PLCC	2.8 mm	3.2 mm		20 mA	2-PLCC	2.4 mm Dia	2.13 mm		2150 mcd
