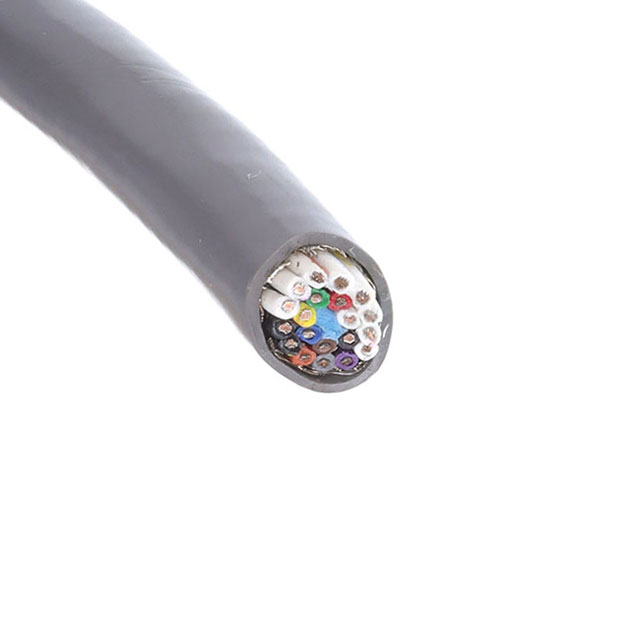

1728 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 20COND 20AWG SHLD
| Part | Shield Coverage | Shield Material | Length | Length | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Voltage | Conductor Insulation | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | 304.8 m | 1000 ft | Multi-Conductor | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | 600 V | Polyethylene (PE) | Slate | -20 ░C | 60 °C | 20 AWG | Braid | 0.462 in | 11.73 mm | Communication Control | Copper Tinned | 26 | 34 AWG | 20 | ||
ALPHA WIRE | 85 % | Copper Tinned | Multi-Conductor | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | 600 V | Polyethylene (PE) | Slate | -20 ░C | 60 °C | 20 AWG | Braid | 0.462 in | 11.73 mm | Communication Control | Copper Tinned | 26 | 34 AWG | 20 | 100 ft | 30.5 m |
