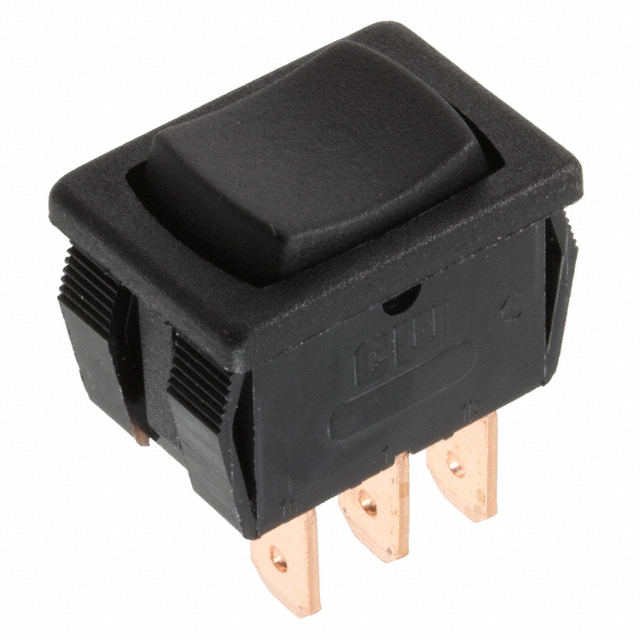

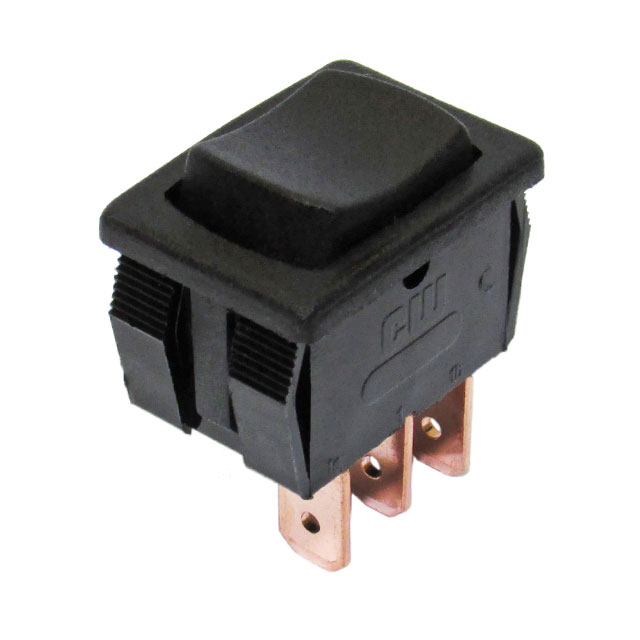

GRS-4013 Series
Manufacturer: CW Industries
Beta
⌘K

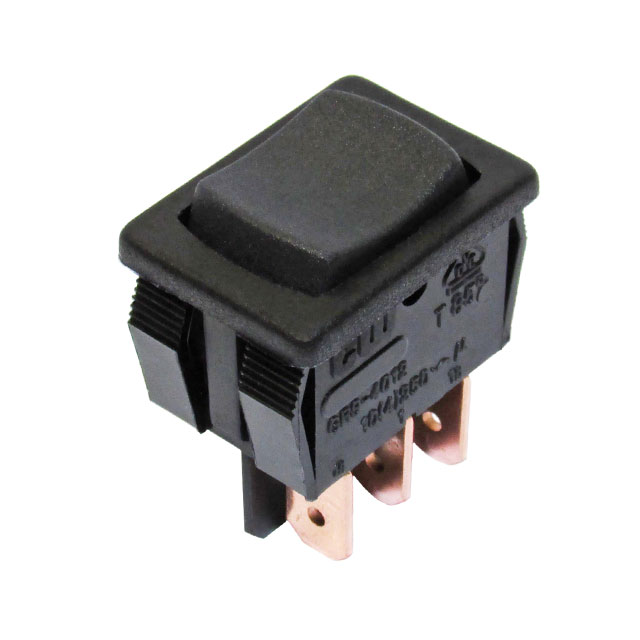

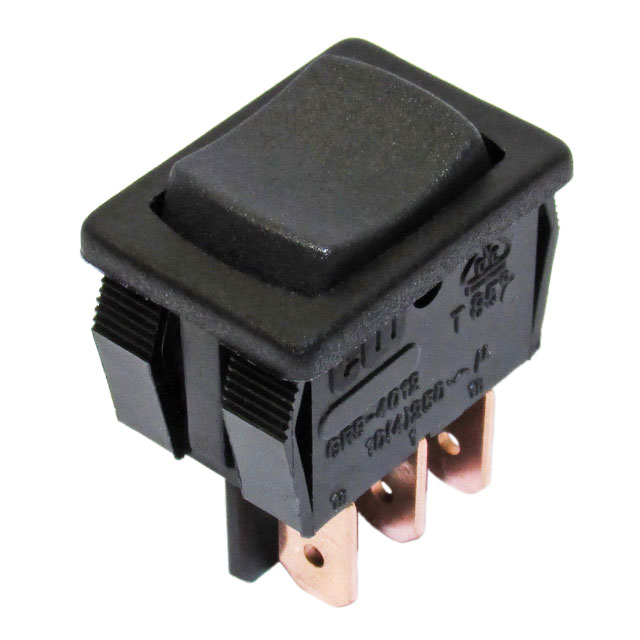

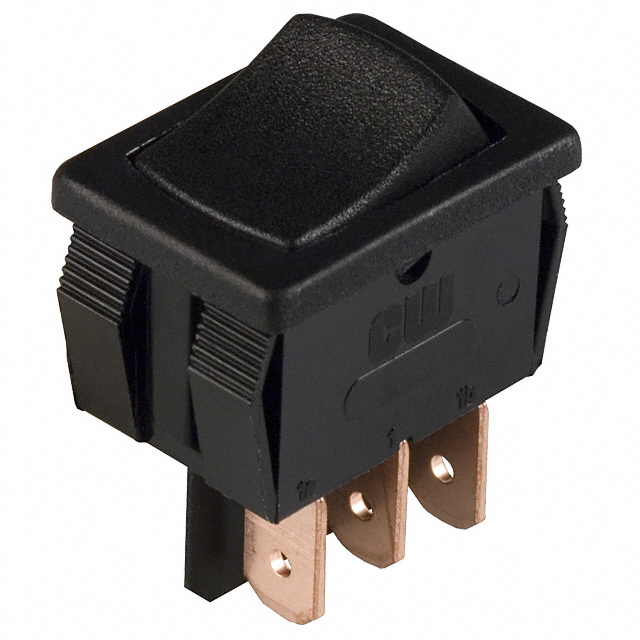

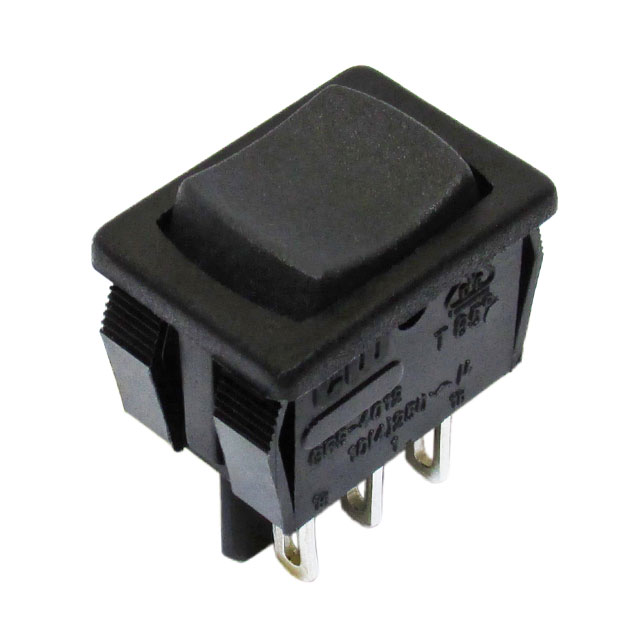

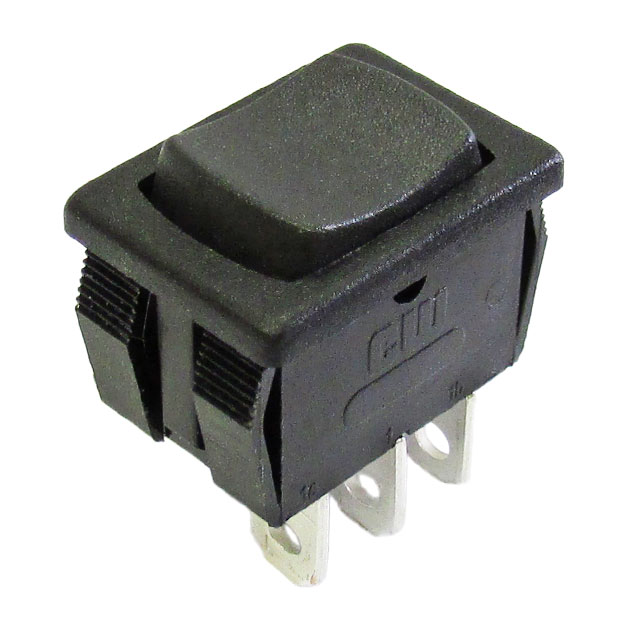

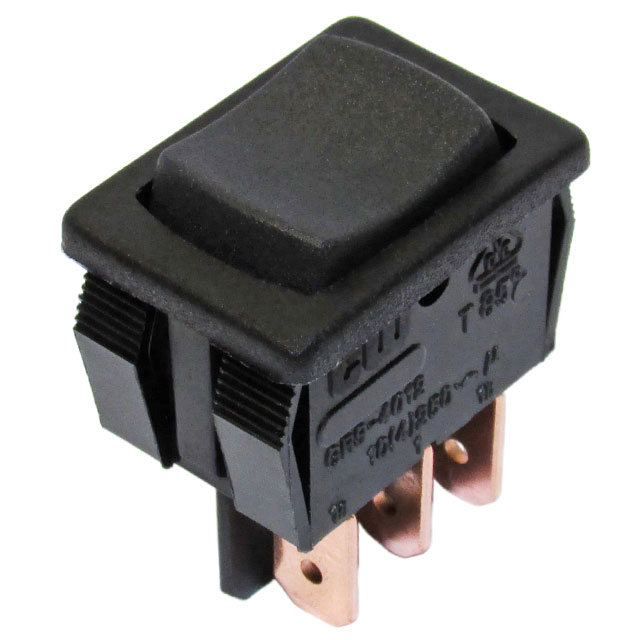

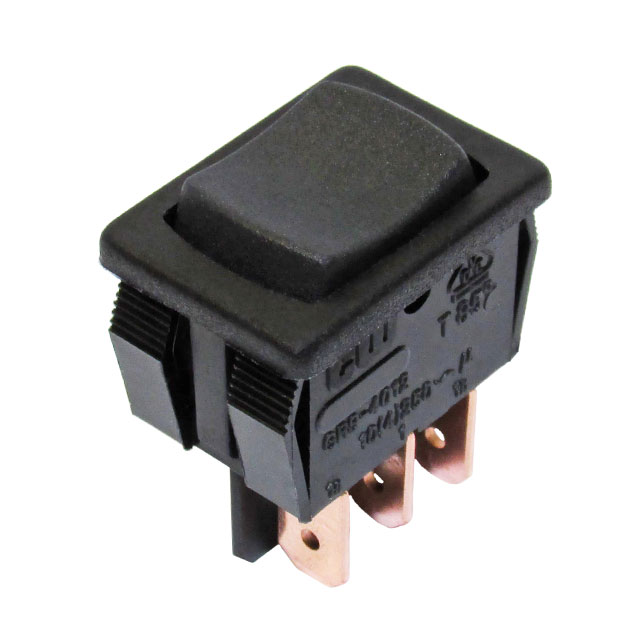

SWITCH ROCKER SPDT 13A 125V
| Part | Mechanical Life | Electrical Life | Circuit | Actuator Type | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Actuator Marking | Current Rating (Amps) | Mounting Type | Voltage Rating - AC | Switch Function | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 25000 Steps | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 13 A | Panel Mount Snap-In | 125 V | On-Off-On | |
 CW Industries | 25000 Steps | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 13 A | Panel Mount Snap-In | 125 V | Mom-Off-Mom | |
 CW Industries | 100000 Cycles | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 13 A | Panel Mount Snap-In | 125 V | On-Off-On | |
 CW Industries | 25000 Steps | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 13 A | Panel Mount Snap-In | 125 V | Mom-Off-Mom | Terminal Barriers |
CW Industries | 100000 Cycles | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 8 A | Panel Mount Snap-In | 125 V | Mom-Off-Mom | Terminal Barriers |

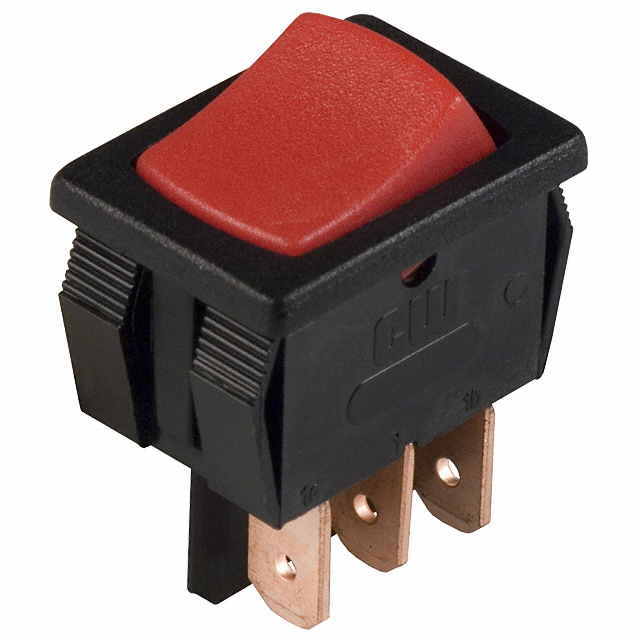

 CW Industries | 100000 Cycles | 25000 Steps | SPDT | Concave (Curved) | Red | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 13 A | Panel Mount Snap-In | 125 V | On-Off-On | |
 CW Industries | 25000 Steps | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 8 A | Panel Mount Snap-In | 125 V | On-Off-On | Terminal Barriers |
 CW Industries | 25000 Steps | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 13 A | Panel Mount Snap-In | 125 V | On-Off-On | |
 CW Industries | 25000 Steps | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 8 A | Panel Mount Snap-In | 125 V | On-Off-On | Terminal Barriers |
 CW Industries | 25000 Steps | 25000 Steps | SPDT | Concave (Curved) | Black | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm | Quick Connect | No Marking | 13 A | Panel Mount Snap-In | 125 V | Mom-Off-Mom | Terminal Barriers |
