357-014 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 14POS 0.156
...
| Part | Material - Insulation | Pitch [x] | Pitch [x] | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Positions/Bay/Row [custom] | Number of Positions | Color | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Read Out | Contact Type | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Gender | Contact Material | Termination Rows | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

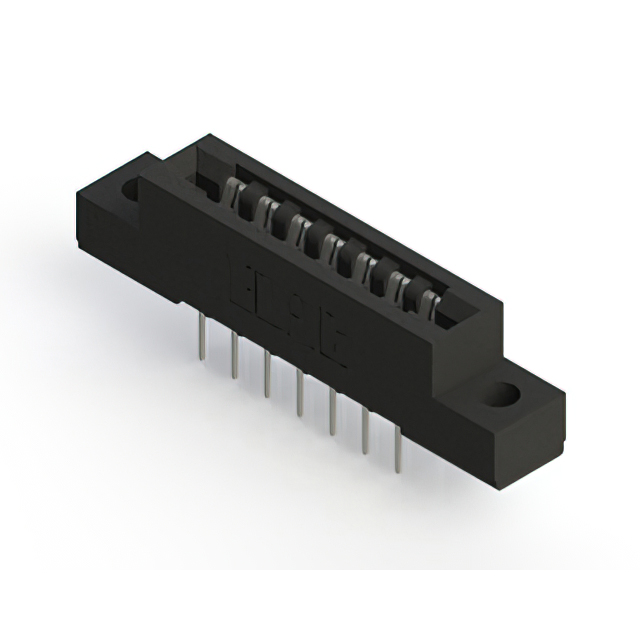

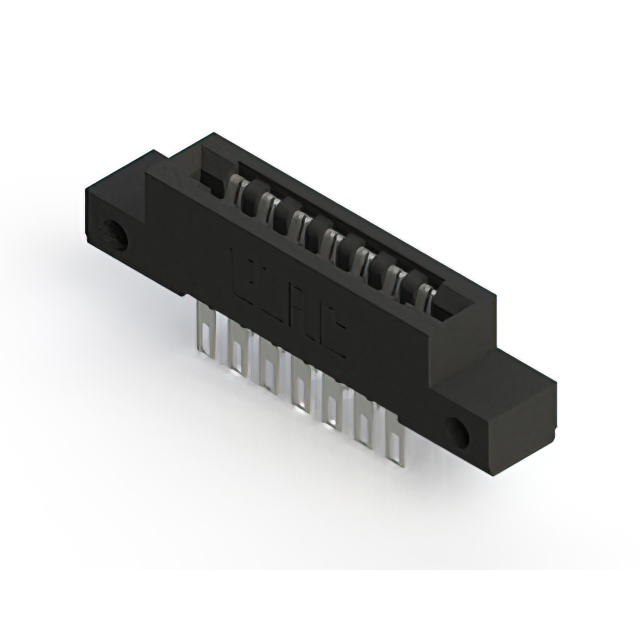

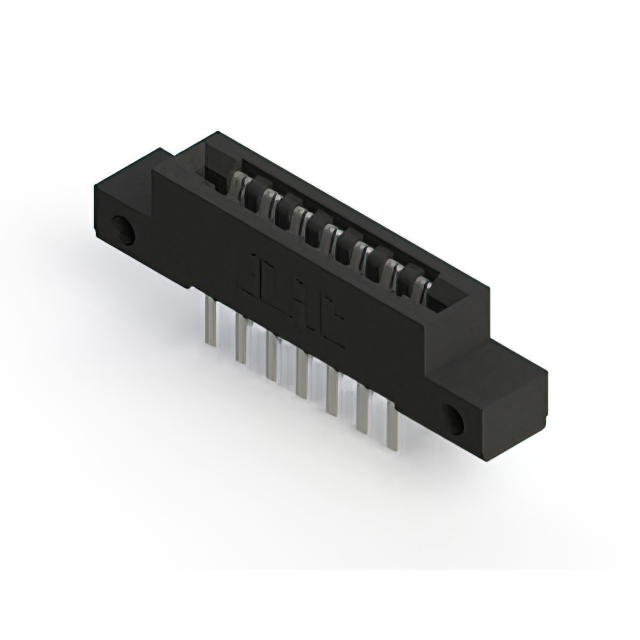

 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 7 | 14 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | Female | Copper Alloy | 2 | |||

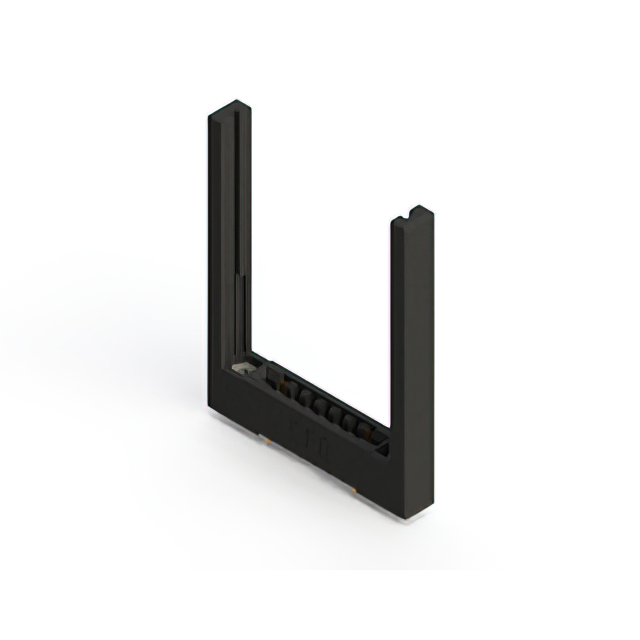

 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 14 | 14 | Black | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | Semi Bellows | Non Specified - Single Edge | -40 °C | 105 ░C | Gold | Female | Copper Alloy | 1 | Card Guides | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 7 | 14 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | Female | Copper Alloy | 2 | |||

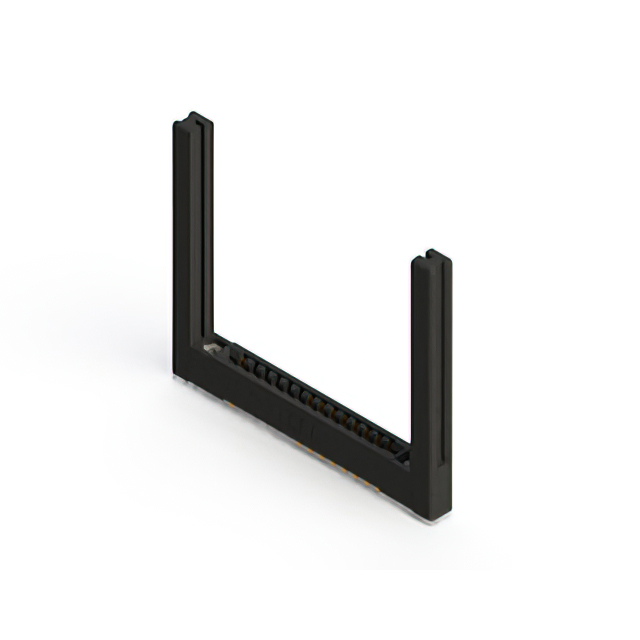

 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 14 | 28 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Gold | Female | Copper Alloy | 1 | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 7 | 14 | Black | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | Female | Copper Alloy | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 14 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | Female | Copper Alloy | 2 | Card Guides | ||||

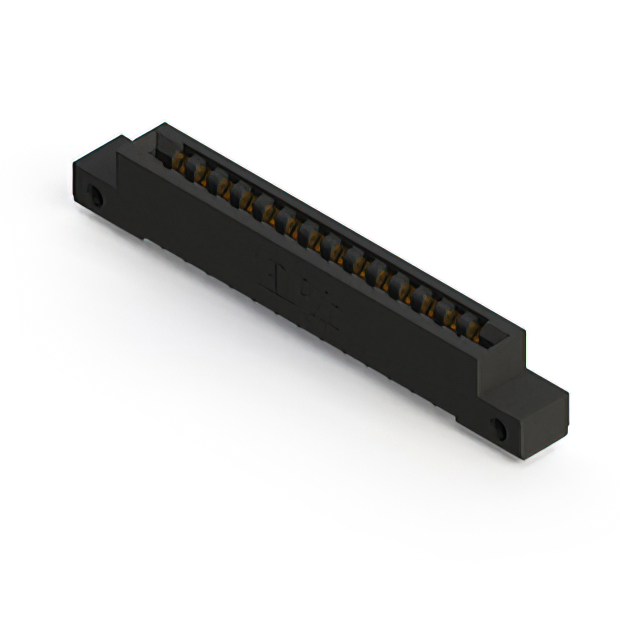

 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 14 | 28 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | Female | Copper Alloy | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 14 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Gold | Female | Copper Alloy | 2 | Card Guides | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 7 | 14 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | Female | Copper Alloy | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | 2 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 14 | 28 | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Dual | Semi Bellows | Non Specified - Dual Edge | -40 °C | 105 ░C | Gold | Female | Copper Alloy | 1 | 10 Áin | 0.25 Ám |
