7126W Series
Manufacturer: Belden Inc.
Beta
⌘K

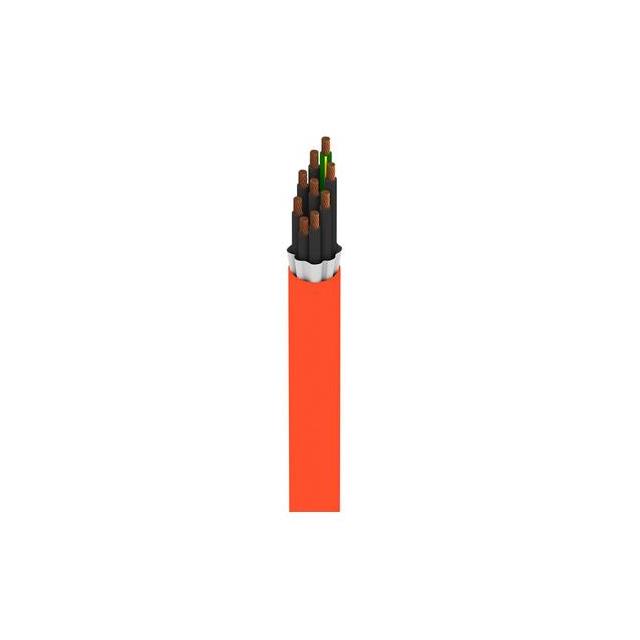

CABLE 9COND 16AWG ORANGE
| Part | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Conductor Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Conductor Insulation | Conductor Insulation | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | UL Style 20328 | 90 °C | -50 °C | Multi-Conductor | Copper Bare | Thermoplastic Elastomer (TPE) | 38 AWG | 168 | 9 | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 76.2 m | 250 ft | 0.561 in | 14.25 mm | Oil Resistant UV Resistant | 1.6 mm | 0.063 in | 16 AWG | Orange |
