har-flexicon-r Series

Manufacturer: HARTING

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 1.27 MM, 1 ROWS, 4 CONTACTS, SURFACE MOUNT

Part	Contact Material	Housing Material	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions	Contact Mating Finish	Header Orientation	Voltage - UL	Mounting Type	Type	Color	Number of Levels	Features	Positions Per Level	Pitch	Pitch	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Current - UL	Contact Material - Plating	Wire Termination	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Mating Orientation	Current	Positions Per Level [custom]	Insulation Height [custom]	Insulation Height [custom]

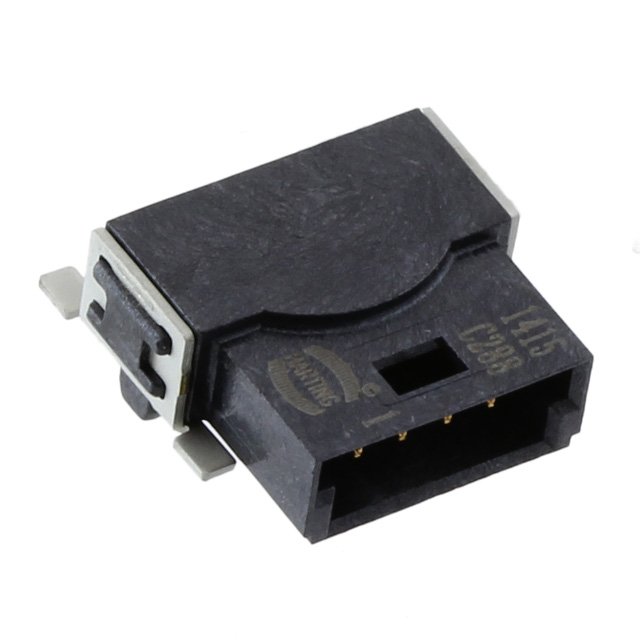

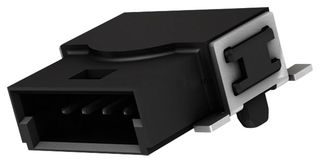

HARTING 14110410002000	Copper Alloy	Glass Filled Liquid Crystal Polymer (LCP)	UL94 V-0	0.139 in	3.53 mm	4	Gold	90° Right Angle	16 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide Solder Retention	4	0.05 in	1.27 mm	Solder	125 °C	-40 C	2 A
HARTING 14110613001000						6	Tin	Vertical	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide Pick and Place Cap	6	0.1 "	2.54 mm	Solder	125 °C	-40 C	6 A

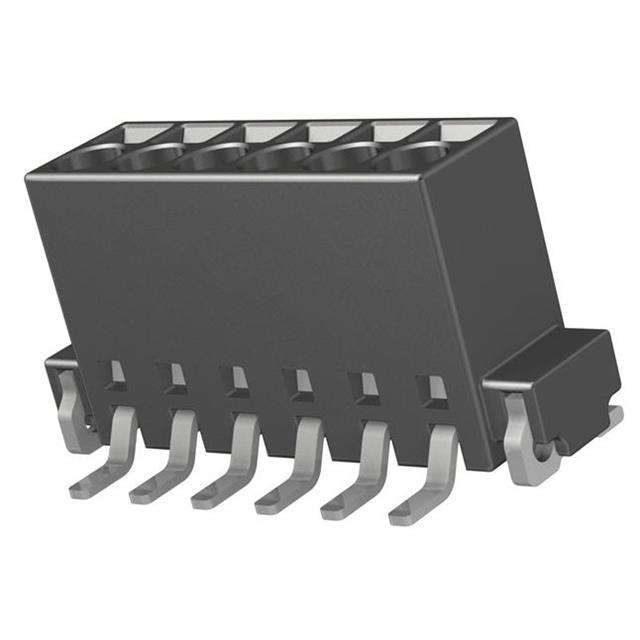

HARTING 14010313101000		Glass Filled Liquid Crystal Polymer (LCP)								Surface Mount		Black	1	Board Guide Solder Retention	3	0.1 "	2.54 mm		125 °C	-40 C		Copper Alloy - Tin Plated	Screwless - Spring Cage Tension Clamp	160 V	19.5 AWG	26 AWG	Vertical with Board	6 A

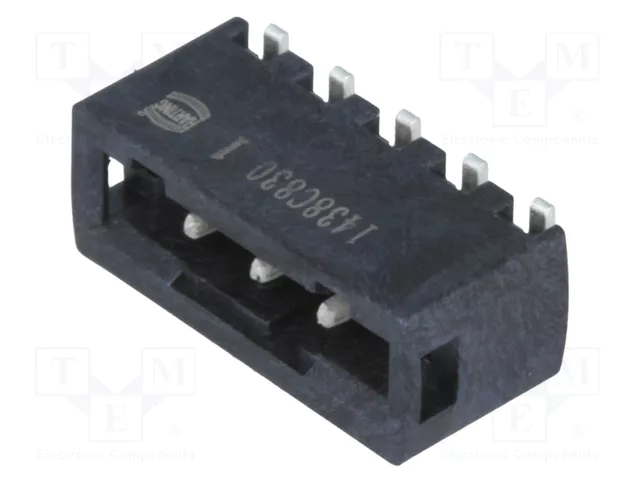

HARTING 14110713002000						7	Tin	90° Right Angle	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide		0.1 "	2.54 mm	Solder	125 °C	-40 C	6 A								7
HARTING 14110913002333						9	Tin	90° Right Angle	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide	9	0.1 "	2.54 mm	Solder	125 °C	-40 C	6 A
HARTING 14110313001333							Tin	Vertical	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide	3	0.1 "	2.54 mm	Solder	125 °C	-40 C	6 A
HARTING 14110513001333						5	Tin	Vertical	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide	5	0.1 "	2.54 mm	Solder	125 °C	-40 C	6 A

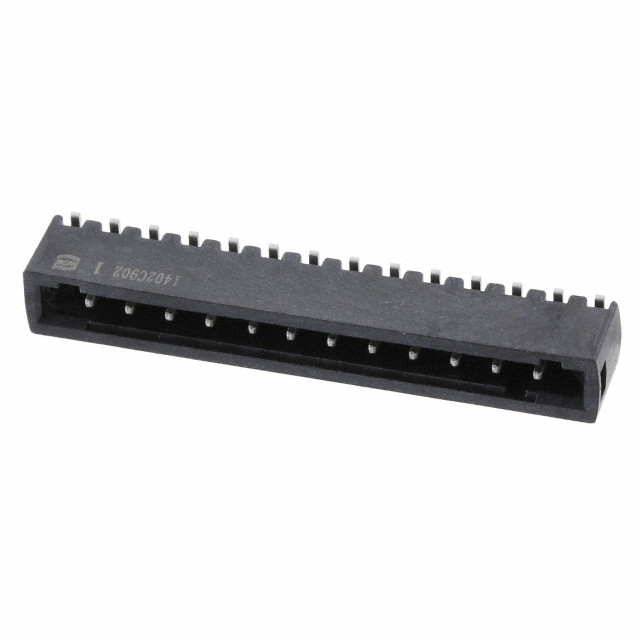

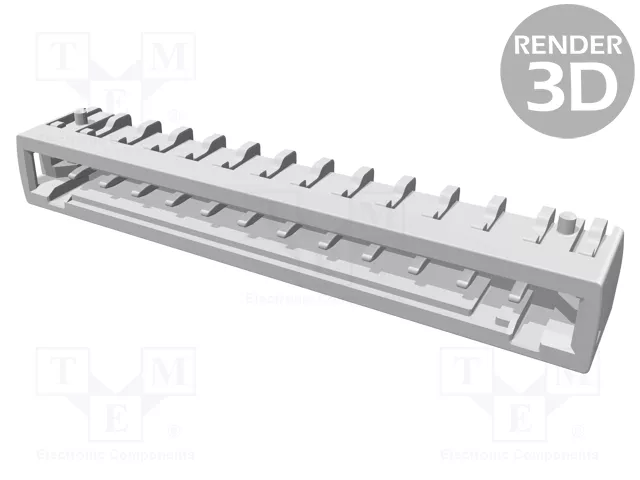

HARTING 14111213002000	Copper Alloy	Glass Filled Liquid Crystal Polymer (LCP)	UL94 V-0	0.197 "	5 mm	12	Tin	90° Right Angle	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide	12	0.1 "	2.54 mm	Solder	125 °C	-40 C	6 A

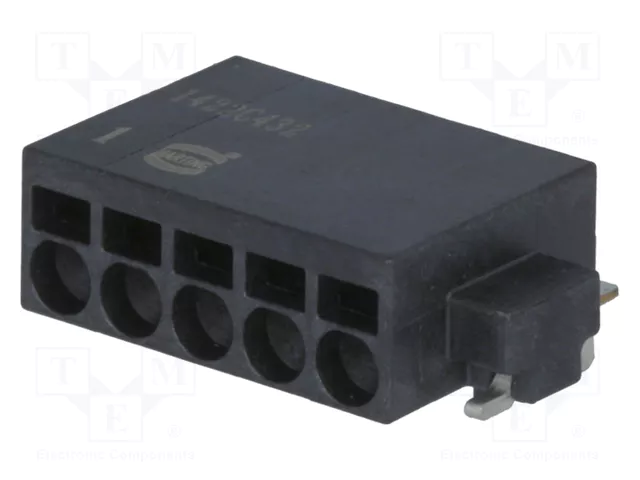

HARTING 14010513102333		Liquid Crystal Polymer (LCP)								Surface Mount		Black	1	Solder Retention	5	0.1 "	2.54 mm		125 °C	-40 C		Copper Alloy - Tin Plated	Screwless - Spring Cage Tension Clamp	160 V	19.5 AWG	24 AWG	Horizontal with Board	6 A

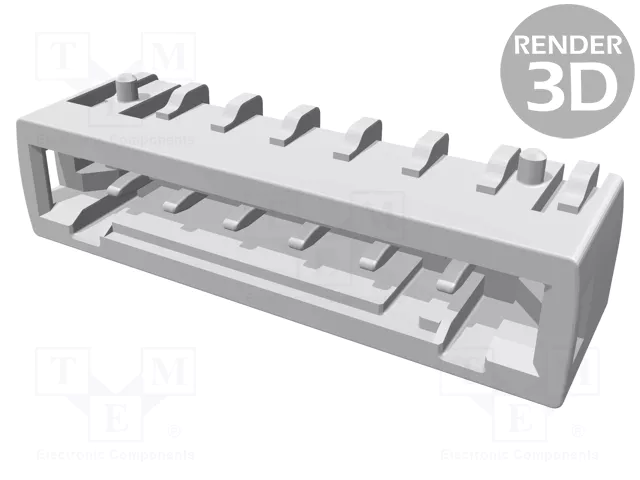

HARTING 14110813001333	Copper Alloy	Liquid Crystal Polymer (LCP)	UL94 V-0			8	Tin	Vertical	160 V	Surface Mount	Header Male Pins Shrouded (4 Side)	Black	1	Board Guide	8	0.1 "	2.54 mm	Solder	125 °C	-40 C	6 A									0.254 in	6.45 mm
