Power Transformers 50\60 Hz, Laminated Transformer
Power Transformers 50\60 Hz, Laminated Transformer
| Part | Weight | Mounting Type | Size / Dimension Length | Size / Dimension Width | Current - Output (Max) Parallel | Current - Output (Max) Series | Voltage - Isolation | Type | Center Tap | Termination Style | Primary Winding(s) | Secondary Winding(s) | Voltage - Secondary (Full Load) (Parallel) | Voltage - Secondary (Full Load) (Series) | Voltage - Primary | Power - Max | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

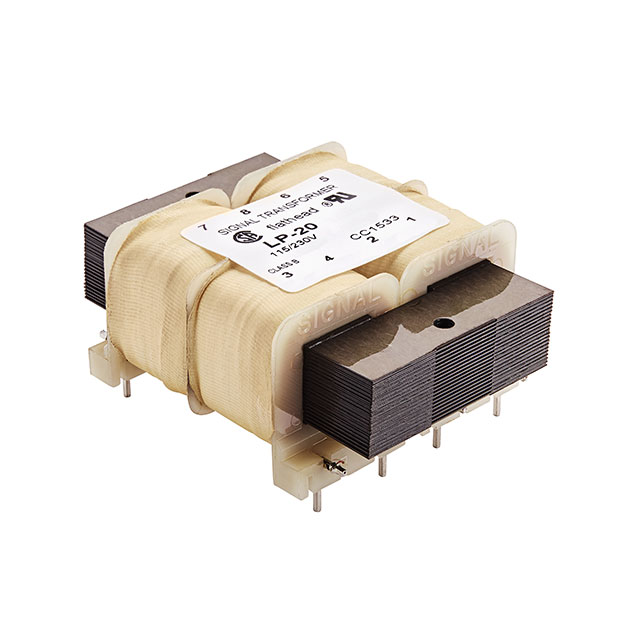

 Signal Transformer | 1.4 lbs | Through Hole | 79.2 mm | 2.5 in | 4 A | 2 A | 1500 Vrns | Semi-Toroidal | No | PC Pin | Dual | Dual | 12 V | 24 V | 115V 230V | 48 VA | 34.9 mm |
