LPPB022 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

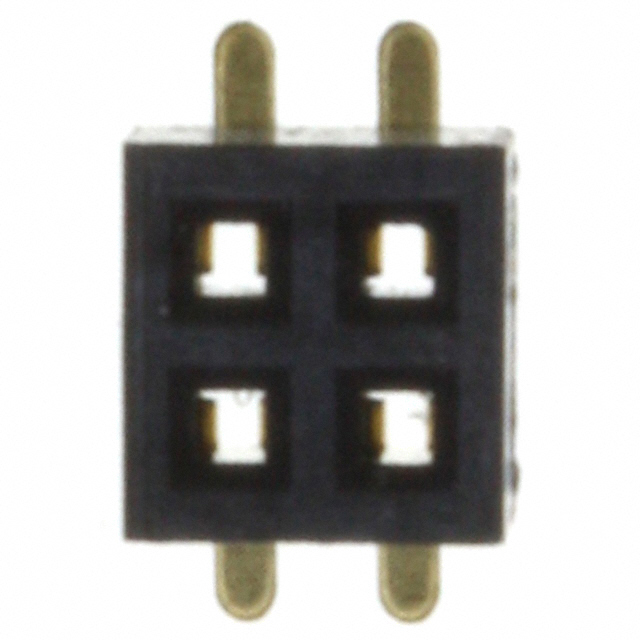

CONN HDR 4POS 0.05 GOLD SMD
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Material | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Type | Insulation Color | Number of Positions Loaded | Connector Type | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Features | Termination | Contact Finish - Mating | Contact Finish - Post | Number of Rows [custom] | Material Flammability Rating | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Flash | Phosphor Bronze | Square | 125 °C | -40 C | Push-Pull | Surface Mount | Black | All | Header Top or Bottom Entry | Flash | 1.27 mm | 0.05 in | Board Guide | Solder | Gold | Gold | 2 | UL94 V-0 | 4 | 0.05 in | 1.27 mm | 4.65 mm | 0.183 in | Female Socket |
 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Flash | Phosphor Bronze | Square | 125 °C | -40 C | Push-Pull | Surface Mount | Black | All | Header Top or Bottom Entry | Flash | 1.27 mm | 0.05 in | Solder | Gold | Gold | 2 | UL94 V-0 | 4 | 0.05 in | 1.27 mm | 4.65 mm | 0.183 in | Female Socket |
