160484 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

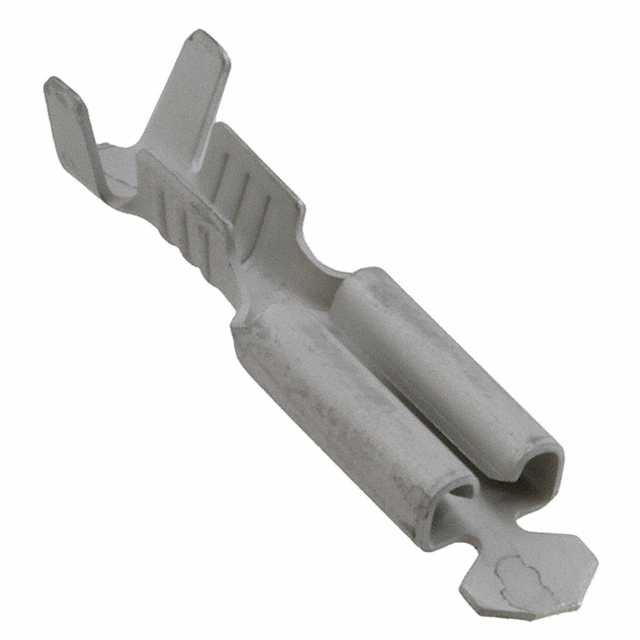

CONN QC RCPT 17-20AWG 0.110
| Part | Termination | Insulation | Tab Length | Tab Length | Mounting Type | Length - Overall [x] | Length - Overall [x] | Gender | Terminal Type | Contact Finish | Tab Width | Tab Width | Wire Gauge [Min] | Wire Gauge [Max] | Tab Thickness | Tab Thickness | Contact Material | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Non-Insulated | 5.31 mm | 0.209 in | Free Hanging (In-Line) | 0.551 " | 14 mm | Female | Standard | Tin | 2.79 mm | 0.11 " | 17 AWG | 20 AWG | 0.02 " | 0.51 mm | Brass | 2 mm | 0.118 in | 0.079 in | 3 mm |
