CHS-06T Series

Catalog

DIP SWITCH, 6POS, SPST, SLIDE, SMD

Part	Features	Contact Finish	Current Rating (Amps)	Mounting Type	Actuator Type	Number of Positions	Termination Style	Height Above Board	Height Above Board	Contact Material	Body Material	Pitch [x]	Pitch [x]	Actuator Level	Circuit	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Voltage Rating

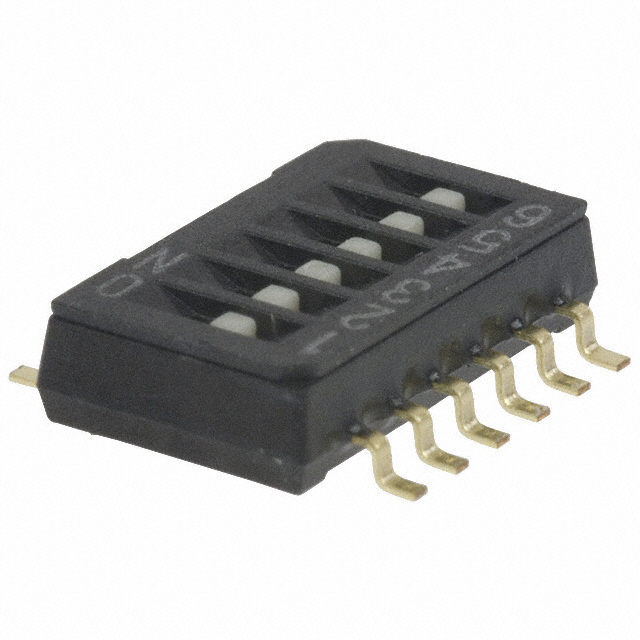

Nidec Components Corporation CHS-06TB	Tape Seal	Gold	100 mA	Surface Mount	Slide (Standard)	6	Gull Wing	0.098 in	2.5 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	0.05 in	1.27 mm	Flush Recessed	SPST	9.2 mm	0.362 in	85 °C	-40 °C	2000 Steps	6 VDC
Nidec Components Corporation CHS-06TB1		Gold	100 mA	Surface Mount	Slide (Standard)	6	Gull Wing	0.098 in	2.5 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	0.05 in	1.27 mm	Flush Recessed	SPST	9.2 mm	0.362 in	85 °C	-40 °C	2000 Steps	6 VDC
Nidec Components Corporation CHS-06TA1		Gold	100 mA	Surface Mount	Slide (Standard)	6	J Lead	0.098 in	2.5 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	0.05 in	1.27 mm	Flush Recessed	SPST	9.2 mm	0.362 in	85 °C	-40 °C	2000 Steps	6 VDC
