PEMI4 Series

Catalog

FILTER RC(PI) 100 OHM/23PF SMD

Part	ESD Protection	Cutoff Frequency	Resistance	Capacitance	Height	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Filter Order	Attenuation Value	Size / Dimension Length	Size / Dimension Width	Resistance - Channel (Ohms)	Technology	Number of Channels	Package / Case	Applications	Current	Type
NXP USA Inc. PEMI4CSP/RT,135	Yes	128 MHz	100 Ohms	23 pF	0.026 in	Surface Mount	-40 °C	85 °C	2	30 dB	0.061 in	0.041 in	100 Ohm	RC (Pi)	4	10-UFBGA WLCSP	LAN PCS WAN	33 mA	Low Pass

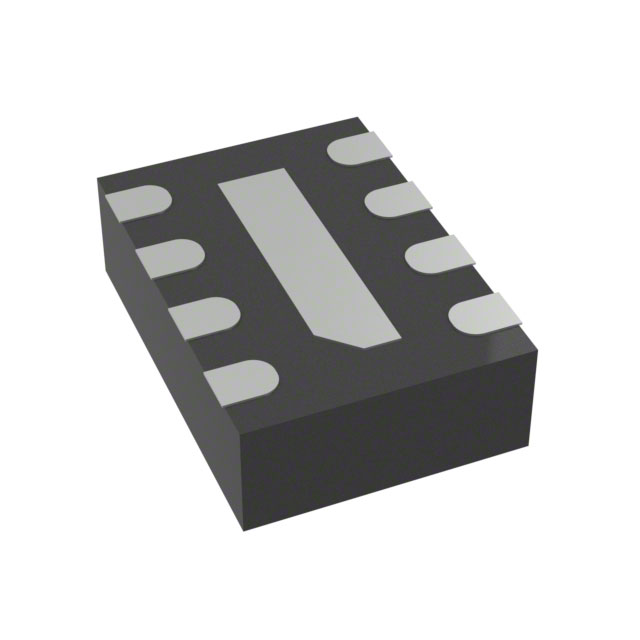

NXP USA Inc. PEMI4QFN/HP,132	Yes		45 Ohm	18.5 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	17 dB	0.067 in	0.047 in	45 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/WT,132	Yes		200 Ohm	23 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	32 dB	0.067 in	0.047 in	200 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/CK,132	Yes		20 Ohm	13.5 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	10 dB	0.067 in	0.047 in	20 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/HK,132	Yes		45 Ohm	13.5 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	13 dB	0.067 in	0.047 in	45 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/LP,132	Yes		65 Ohms	18.5 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	19 dB	0.067 in	0.047 in	65 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/LE,132	Yes		65 Ohms	8.5 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	11 dB	0.067 in	0.047 in	65 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/CP,132	Yes		20 Ohm	18.5 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	13 dB	0.067 in	0.047 in	20 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/RT,132	Yes		100 Ohms	23 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	27 dB	0.067 in	0.047 in	100 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
NXP USA Inc. PEMI4QFN/HR,132	Yes		45 Ohm	21 pF	0.02 in	Surface Mount	-40 °C	85 °C	2	18 dB	0.067 in	0.047 in	45 Ohm	RC (Pi)	4	8-XFDFN	LAN PCS WAN		Low Pass
