8020.5015 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

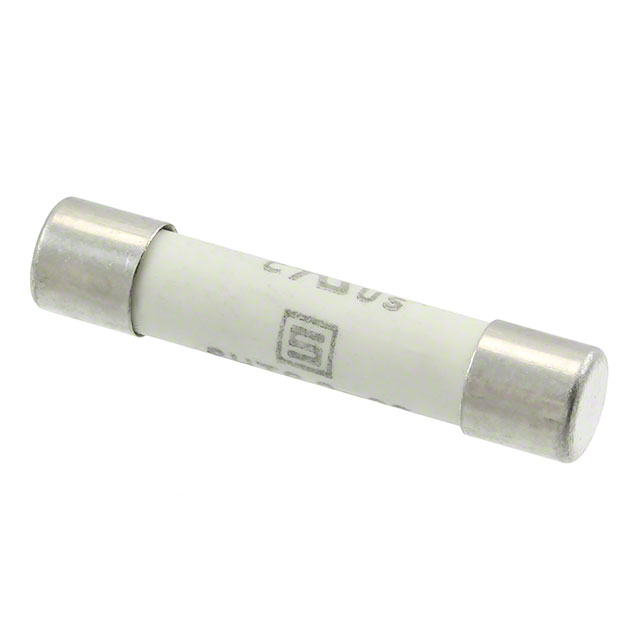

FUSE CERM 2.5A 500VAC 400VDC 3AB
| Part | Melting I˛t | Melting I²t | Voltage Rating - AC | Fuse Type | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case [y] | Package / Case [x] | Package / Case | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 20 | 20 | 500 V | Cartridge Ceramic | 1.5 kA | 400 V | 31.8 mm | 1.252 " | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | 2.5 A | Requires Holder | 85 °C | -40 C | Slow Blow |
