VGS-75C Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 5V 70W

Part	Current - Output 1 [custom]	Type	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Approval Agency	Power (Watts)	Voltage - Output 1	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency	Current - Output 1	Voltage - Output 1 [custom]
CUI Inc. VGS-75C-5-B	14 A	Conformal Coated Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	70 W	5 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	86 %
CUI Inc. VGS-75C-5-A	14 A	Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	70 W	5 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	86 %
CUI Inc. VGS-75C-24-B		Conformal Coated Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	77 W	24 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	90 %	3.2 A
CUI Inc. VGS-75C-24		Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	77 W	24 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	90 %	3.2 A

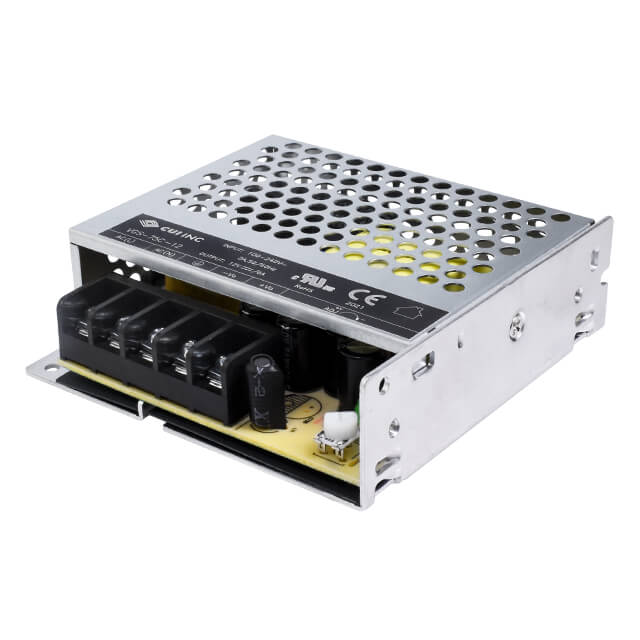

CUI Inc. VGS-75C-12		Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	72 W	12 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	88 %	6 A
CUI Inc. VGS-75C-15-A		Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	75 W	15 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	88 %	5 A
CUI Inc. VGS-75C-15-B		Conformal Coated Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	75 W	15 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	88 %	5 A
CUI Inc. VGS-75C-36		Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	76 W		Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	90 %	2.1 A	36 V
CUI Inc. VGS-75C-15		Enclosed	1	264 VAC 373 VDC	85 VAC 120 VDC	4000 V	60335-1 62368-1	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Chassis Mount	CE cURus	75 W	15 V	Household Appliances ITE (Commercial)	-30 °C	70 °C	Adjustable Output Universal Input	88 %	5 A
