MID400M Series

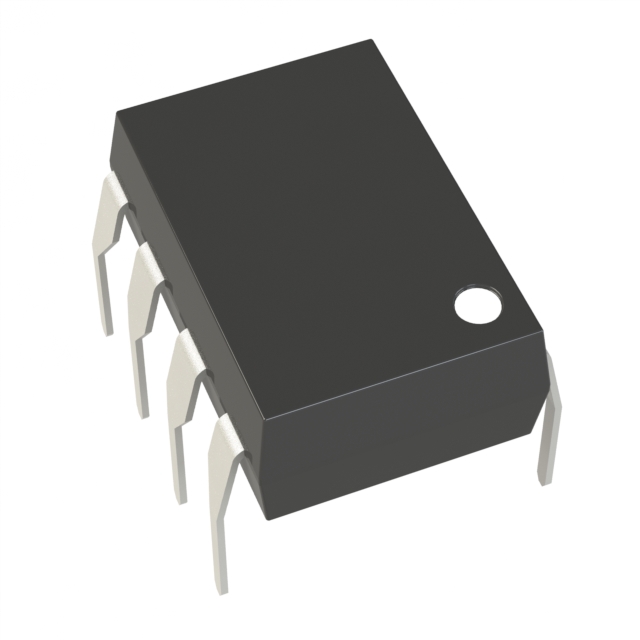

8-Pin DIP AC Line Monitor Logic Output Optocoupler

Catalog

8-Pin DIP AC Line Monitor Logic Output Optocoupler

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel [custom]	Voltage - Supply	Mounting Type	Type	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Number of Channels	Supplier Device Package	Voltage - Isolation	Approval Agency	Propagation Delay tpLH / tpHL (Max)	Propagation Delay tpLH / tpHL (Max) [Max]	Package / Case	Package / Case	Package / Case	Package / Case
ON Semiconductor MID400SVM	85 °C	-40 °C	20 mA	7 V	Surface Mount	AC Line Monitor	1.5 V	30 mA	1	8-SMD	2500 Vrms	UR VDE	1 ms	1 ms
ON Semiconductor MID400TVM	85 °C	-40 °C		7 V	Through Hole	AC Line Monitor	1.5 V		1	8-PDIP	2500 Vrms	UR VDE			10.16 mm	8-DIP	10.16 mm
ON Semiconductor MID400W	85 °C	-40 °C	20 mA	7 V	Through Hole	AC Line Monitor	1.5 V	30 mA	1	8-MDIP	2500 Vrms		1 ms	1 ms	10.16 mm	8-DIP	10.16 mm
ON Semiconductor MID400SM	85 °C	-40 °C	20 mA	7 V	Surface Mount	AC Line Monitor	1.5 V	30 mA	1	8-SMD	2500 Vrms		1 ms	1 ms
ON Semiconductor MID400VM	85 °C	-40 °C		7 V	Through Hole	AC Line Monitor	1.5 V		1	8-PDIP	2500 Vrms	UR VDE				8-DIP	0.3 in	7.62 mm
ON Semiconductor MID400SDV	85 °C	-40 °C	20 mA	7 V	Surface Mount	AC Line Monitor	1.5 V	30 mA	1	8-SMD	2500 Vrms	UR VDE	1 ms	1 ms
ON Semiconductor MID400S	85 °C	-40 °C	20 mA	7 V	Surface Mount	AC Line Monitor	1.5 V	30 mA	1	8-SMD	2500 Vrms		1 ms	1 ms
ON Semiconductor MID400SDVM	85 °C	-40 °C		7 V	Surface Mount	AC Line Monitor	1.5 V		1	8-SMD	2500 Vrms	UR VDE

Catalog

8-Pin DIP AC Line Monitor Logic Output Optocoupler

Key Features

• UL recognized (File #E90700_2)

• Direct operation from any line voltage with the use of an external resistor

• Externally adjustable time delay

• Externally adjustable AC voltage sensing level

• High voltage isolation between input and output

• Compact plastic DIP package

• Logic Level compatibility

• VDE recognized (file #40018398), add option V (e.g., MID400VM)

Description

The MID400 is an optically isolated AC line-to-logic interface device. It is packaged in an 8-lead plastic DIP. The AC line voltage is monitored by two back-to-back GaAs LED diodes in series with an external resistor. A high gain detector circuit senses the LED current and drives the output gate to a logic low condition.The MID400 has been designed solely for the use as an <B>AC line monitor</B>. It is recommended for use in any AC-to-DC control application where excellent optical isolation, solid state reliability, TTL compatibility, small size, low power, and low frequency operations are required.
