TPS92622-Q1 Series

Automotive, two-channel 40-V high-side LED driver with thermal sharing

Catalog

Automotive, two-channel 40-V high-side LED driver with thermal sharing

Part	Supplier Device Package	Grade	Internal Switch(s)	Qualification	Voltage - Output [Max]	Voltage - Output [Min]	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Max) [Max]	Dimming	Voltage - Supply (Min) [Min]	Type	Number of Outputs	Package / Case	Mounting Type	Current - Output / Channel	Package / Case	Package / Case

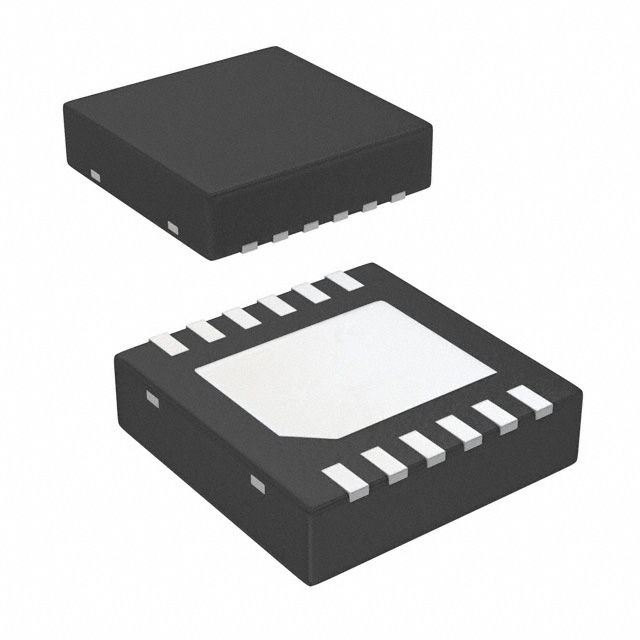

Texas Instruments TPS92622QDRRRQ1	12-WSON (3x3)	Automotive		AEC-Q100	40 V	0 VDC	Constant Current	125 °C	-40 °C	40 V	PWM	4.5 V	Linear	2	12-WFDFN Exposed Pad	Surface Mount	150 mA

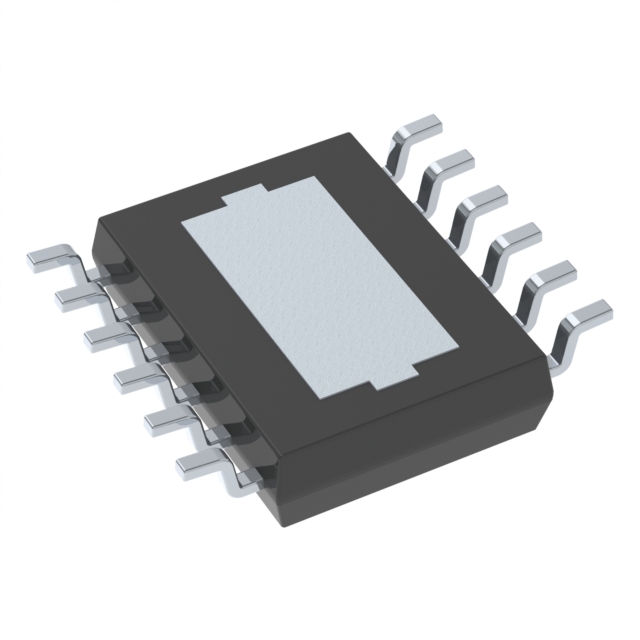

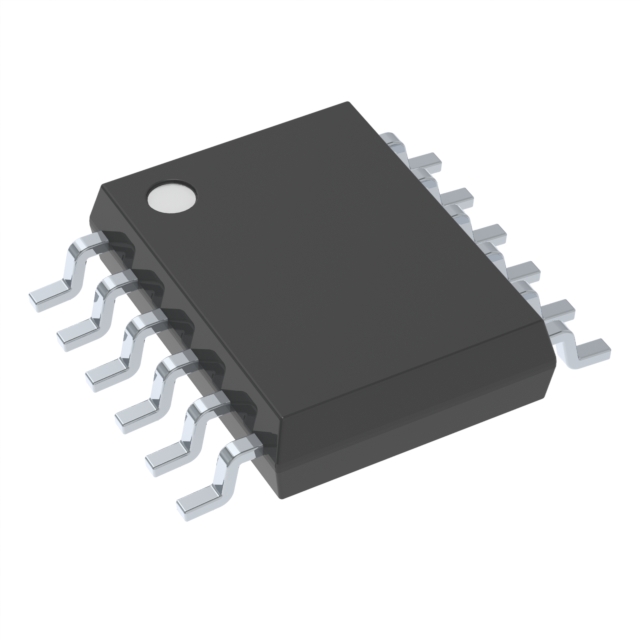

Texas Instruments TPS92622QDGNRQ1	12-HVSSOP	Automotive		AEC-Q100	40 V	0 VDC	Constant Current	125 °C	-40 °C	40 V	PWM	4.5 V	Linear	2	12-PowerTSSOP	Surface Mount	150 mA	0.118 in	3 mm

Catalog

Automotive, two-channel 40-V high-side LED driver with thermal sharing

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, T AWide input voltage range: 4.5 V to 40 VThermal sharing by external shunt resistorLow supply current in fault modeUltra low shutdown current in sleep mode (only for HVSSOP package)Two high-precision current regulation:Up to 150-mA current output for each channel±5% accuracy over full temperature rangeIndependent current setting by resistorIndependent PWM pin for brightness controlLow dropout voltage:Maximum dropout: 350 mV for 150 mADiagnostics and protectionLED open-circuit with auto-recoveryLED short-to-GND with auto-recoveryDiagnostic enable with adjustable thresholdFault bus configurable as either one-fails–all-fail or only-failed-channel off (N-1)Thermal shutdownOperation junction temperature range:–40°C to 150°CAEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, T AWide input voltage range: 4.5 V to 40 VThermal sharing by external shunt resistorLow supply current in fault modeUltra low shutdown current in sleep mode (only for HVSSOP package)Two high-precision current regulation:Up to 150-mA current output for each channel±5% accuracy over full temperature rangeIndependent current setting by resistorIndependent PWM pin for brightness controlLow dropout voltage:Maximum dropout: 350 mV for 150 mADiagnostics and protectionLED open-circuit with auto-recoveryLED short-to-GND with auto-recoveryDiagnostic enable with adjustable thresholdFault bus configurable as either one-fails–all-fail or only-failed-channel off (N-1)Thermal shutdownOperation junction temperature range:–40°C to 150°C

Description

The TPS92622-Q1 two-channel LED driver includes an unique thermal management design to reduce temperature rising on the device. The TPS92622-Q1 is a linear driver directly powered by automotive batteries with large voltage variations to output full current loads up to 150 mA per channel. External shunt resistors are leveraged to share output current and dissipate power out of the driver. The device full-diagnostic capabilities include LED open, LED short-to-GND circuit, and device overtemperature protection. The one-fails–all-fail feature of TPS92622-Q1 can work together with other LED drivers, such as the TPS9261x-Q1, TPS9262x-Q1, TPS9263x-Q1, and TPS92830-Q1 devices, to address different requirements. The TPS92622-Q1 two-channel LED driver includes an unique thermal management design to reduce temperature rising on the device. The TPS92622-Q1 is a linear driver directly powered by automotive batteries with large voltage variations to output full current loads up to 150 mA per channel. External shunt resistors are leveraged to share output current and dissipate power out of the driver. The device full-diagnostic capabilities include LED open, LED short-to-GND circuit, and device overtemperature protection. The one-fails–all-fail feature of TPS92622-Q1 can work together with other LED drivers, such as the TPS9261x-Q1, TPS9262x-Q1, TPS9263x-Q1, and TPS92830-Q1 devices, to address different requirements.
