UCC21732 Series

Catalog

5.7KVRMS, ±10A SINGLE-CHANNEL ISOLATED GATE DRIVER WITH 2-LEVEL TURN OFF FOR IGBT/SIC FETS

Part	Technology	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Voltage - Isolation	Supplier Device Package	Pulse Width Distortion (Max) [Max]	Approval Agency	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Package / Case	Package / Case	Package / Case	Propagation Delay tpLH / tpHL (Max) [Max]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ) [Max]	Grade	Qualification	Supplied Contents	Utilized IC / Part	Type	Secondary Attributes	Function	Contents
Texas Instruments UCC21732DWR	Capacitive Coupling	150 kV/µs	10 A	Surface Mount	10 A	10 A	125 °C	-40 C	1	5700 Vrms	16-SOIC	30 ns	CQC CSA TUV UL VDE	33 V	13 V	16-SOIC	7.5 mm	0.295 "	130 ns	28 ns	24 ns
Texas Instruments UCC21732QDWQ1	Capacitive Coupling	150 kV/µs	10 A	Surface Mount	10 A	10 A	125 °C	-40 C	1	5700 Vrms	16-SOIC	30 ns	CQC CSA TUV UL VDE	33 V	13 V	16-SOIC	7.5 mm	0.295 "	130 ns	28 ns	24 ns	Automotive	AEC-Q100
Texas Instruments UCC21732QDWRQ1	Capacitive Coupling	150 kV/µs	10 A	Surface Mount	10 A	10 A	125 °C	-40 C	1	5700 Vrms	16-SOIC	30 ns	CQC CSA TUV UL VDE	33 V	13 V	16-SOIC	7.5 mm	0.295 "	130 ns	28 ns	24 ns	Automotive	AEC-Q100

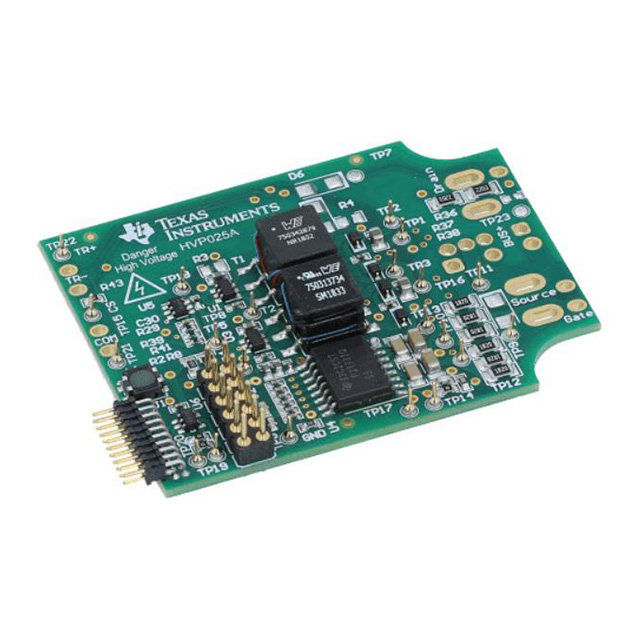

Texas Instruments UCC21732QDWEVM-025																								Board(s)	UCC21732	Power Management	On-Board LEDs	Gate Driver	Board(s)
Texas Instruments UCC21732DW	Capacitive Coupling	150 kV/µs	10 A	Surface Mount	10 A	10 A	125 °C	-40 C	1	5700 Vrms	16-SOIC	30 ns	CQC CSA TUV UL VDE	33 V	13 V	16-SOIC	7.5 mm	0.295 "	130 ns	28 ns	24 ns	Automotive	AEC-Q100
