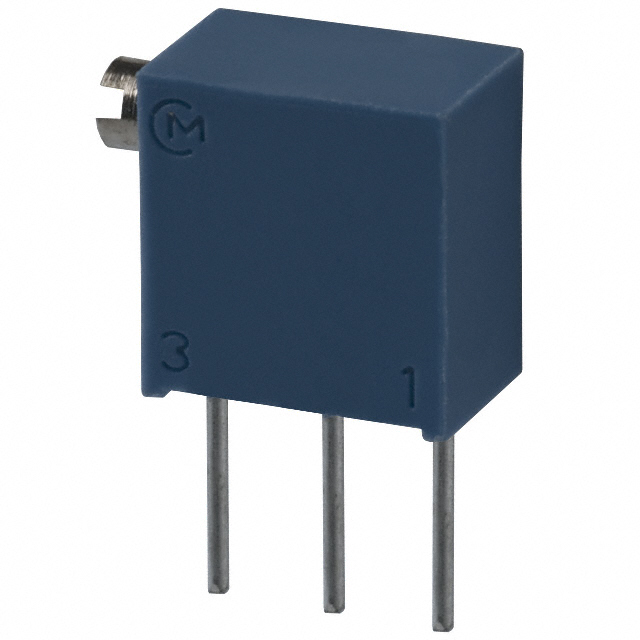

PV37Z Series

Catalog

TRIMMER 2K OHM 0.25W PC PIN SIDE

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Temperature Coefficient	Termination Style	Resistance	Adjustment Type	Resistive Material	Tolerance	Power (Watts)	Power (Watts)	Mounting Type
Bourns Inc. PV37Z202A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	2 kOhms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z204A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	200000 Ohms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z501A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	0.5 kOhms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z100A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	10 Ohms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z253A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	25 kOhms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z201A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	200 Ohms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z503A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	50000 Ohms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z101A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	100 Ohms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z502A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	5 kOhms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
Bourns Inc. PV37Z102A01B00	0.264 in	4 mm	Rectangular - Face	6.7 mm	0.157 "	12	150 ppm/°C	PC Pins	1000 Ohms	Side Adjustment	Cermet	10 %	0.25 W	0.25 W	Through Hole
