TL1260 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Actuator Material	Actuator Type	Illumination	Circuit	Contact Rating @ Voltage	Termination Style	Actuator Length, Right Angle [x]	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Outline [x]	Outline [y]	Illumination Voltage (Nominal)	Operating Force	Mounting Type	Actuator Orientation	Switch Function	Actuator Length, Right Angle	Features
E-Switch TL1260GQRBLKSWITCHTACTRT	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin	7.05 mm	Green LED	-20 ░C	70 °C	7 mm	6.8 mm	2.3 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom
E-Switch TL1260BQRBLKSWITCHTACTRT	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin	7.05 mm	Blue LED	-20 ░C	70 °C	7 mm	6.8 mm	3.7 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom

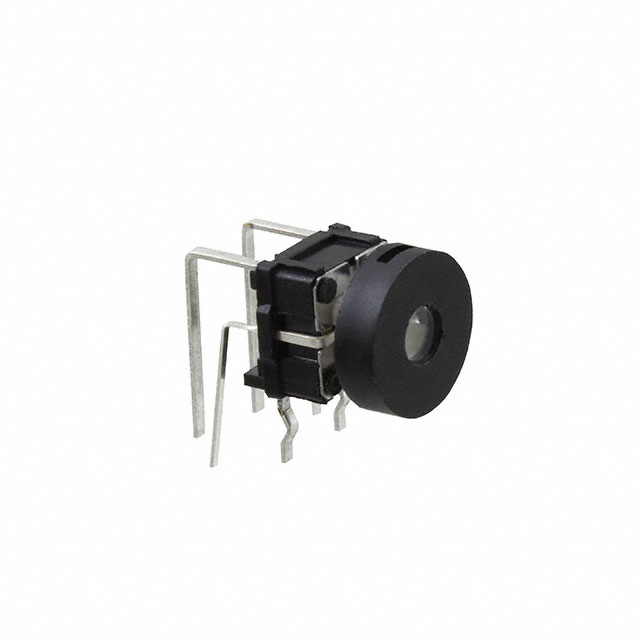

E-Switch TL1260BQRBLK	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin		Blue LED	-20 ░C	70 °C	7 mm	6.8 mm	3.7 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom	6.85 mm	Black Cap
E-Switch TL1260YQRYEL	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin		LED Yellow	-20 ░C	70 °C	7 mm	6.8 mm	2.3 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom	6.85 mm	Yellow Cap
E-Switch TL1260RQRGRY	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin		LED Red	-20 ░C	70 °C	7 mm	6.8 mm	3.5 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom	6.85 mm	Gray Cap
E-Switch TL1260BQSCLR	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin	11.1 mm	Blue LED	-20 ░C	70 °C	7 mm	6.8 mm	3.7 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom
E-Switch TL1260GQRGRN				Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin		Green LED	-20 ░C	70 °C	7 mm	6.8 mm	2.3 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom	7.15 mm
E-Switch TL1260BRHCLR				Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin		Blue LED	-20 ░C	70 °C	7 mm	6.8 mm	3.7 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom	6.85 mm

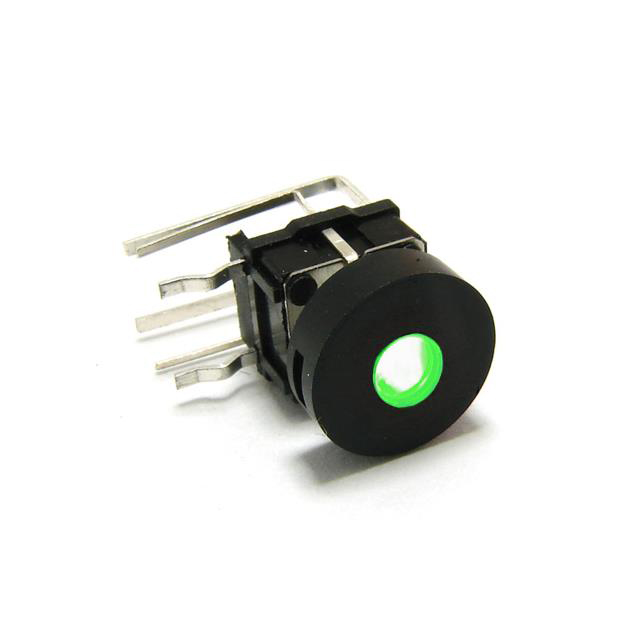

E-Switch TL1260GQRBLK	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin		Green LED	-20 ░C	70 °C	7 mm	6.8 mm	2.3 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom	6.85 mm	Black Cap
E-Switch TL1260RQRBLK	0.2 mm	50000 Cycles	Polybutylene Terephthalate (PBT)	Round Button	Illuminated	SPST-NO	0.05 A 12 VDC	PC Pin		LED Red	-20 ░C	70 °C	7 mm	6.8 mm	3.5 VDC	160 gf	Right Angle Through Hole	Side Actuated	Off-Mom	6.85 mm	Black Cap
