5318 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

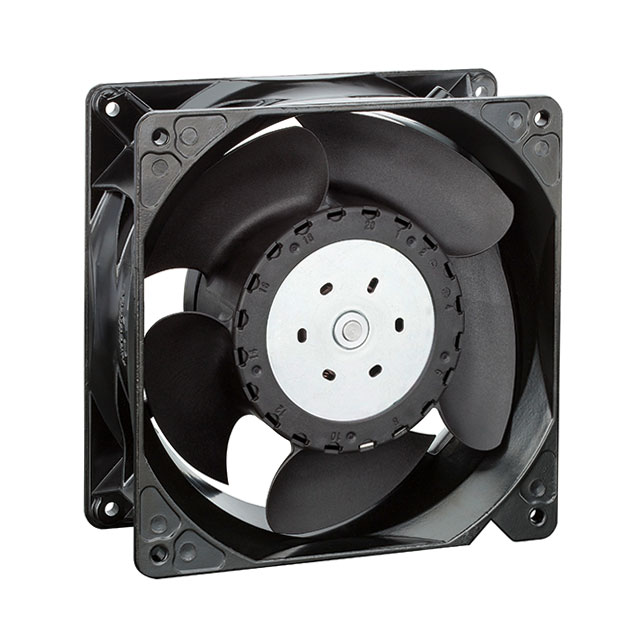

DC FANS TUBEAXIAL FAN, 140X140X51MM, 48VDC, 241.3CFM, 41W, SPEED SIGNAL/OPEN COLLECTOR
| Part | Lifetime @ Temp. | Air Flow | Air Flow | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Material - Blade | Termination | RPM | Noise | Size / Dimension [x] | Size / Dimension [y] | Bearing Type | Features | Weight | Weight | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Voltage - Rated | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 70000 Hrs | 241.3 CFM | 6.76 m³/min | 72 VDC | 36 VDC | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | 4 Wire Leads | 6000 RPM | 70 dB(A) | 140 mm | 140 mm | Ball | PWM Control Speed Sensor (Tach) | 907.2 g | 2 lbs | 41 W | -20 ░C | 70 °C | Tubeaxial | 48 VDC | 50.8 mm |
ebm-papst Inc. | 62500 Hrs | 288.4 CFM | 8.08 m³/min | 72 VDC | 36 VDC | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | 4 Wire Leads | 7000 RPM | 75 dB(A) | 140 mm | 140 mm | Ball | PWM Control Speed Sensor (Tach) | 907.2 g | 2 lbs | 67 W | -20 ░C | 70 °C | Tubeaxial | 48 VDC | 50.8 mm |
