317-070 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 70POS 0.156

Part	Material - Insulation	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Positions/Bay/Row	Mounting Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Contact Material	Color	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Type	Read Out	Flange Feature
EDAC Inc. 317-070-542-807	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Female	35	Through Hole	3.96 mm	0.156 in	0.25 Ám	10 Áin	Wire Wrap	Gold	Copper Alloy	Green	70	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Dual	M3 Threaded Insert Top Mount Opening

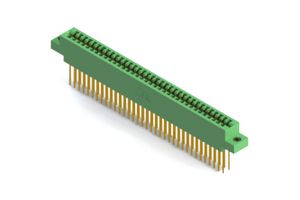

EDAC Inc. 317-070-540-807	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Female	35	Through Hole	3.96 mm	0.156 in	0.25 Ám	10 Áin	Wire Wrap	Gold	Copper Alloy	Green	70	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Dual	M3 Threaded Insert Top Mount Opening
