DLPC4430 Series
DLP® controller for DLP780NE, DLP781NE, DLP800RE, and DLP801RE digital micromirror devices (DMDs)
Manufacturer: Texas Instruments
Catalog
DLP® controller for DLP780NE, DLP781NE, DLP800RE, and DLP801RE digital micromirror devices (DMDs)
Key Features

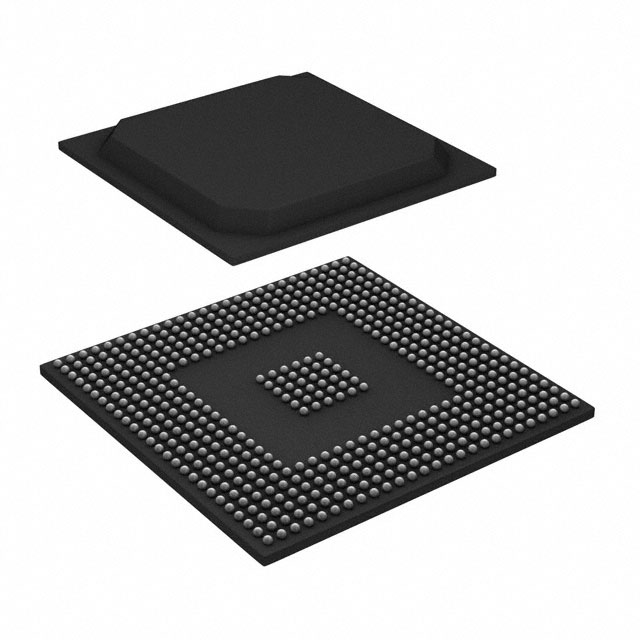

• Single DLP controller support for up to WUXGA resolution display using digital micromirror devices (DMDs):Up to 1920× 1200 at 120Hz (2D and 3D)Provides single 30-bit or dual 60-bit input pixel interface:RGB data format8, 9, or 10 bits per colorPixel clock up to 320 MHz in dual 30-bit mode on a single controllerHigh-speed, low voltage differential signaling (LVDS) DMD interface150-MHz ARM946™ microprocessorMicroprocessor peripheralsProgrammable pulse-width modulation (PWM) and capture timersThree I2C ports, three UART ports and three SSP portsOne USB 1.1 secondary portImage processingMultiple image processing algorithmsFrame rate conversionColor coordinate adjustmentProgrammable color space conversionProgrammable degamma and splashIntegrated support for 3-D display2-D keystone correctionIntegrated clock generation circuitryOperates on a single 20-MHz crystalIntegrated spread spectrum clockingExternal memory supportParallel flash for microprocessor and PWM sequence516-pin plastic ball grid array packageSupports LED and laser hybrid illuminationsSingle DLP controller support for up to WUXGA resolution display using digital micromirror devices (DMDs):Up to 1920× 1200 at 120Hz (2D and 3D)Provides single 30-bit or dual 60-bit input pixel interface:RGB data format8, 9, or 10 bits per colorPixel clock up to 320 MHz in dual 30-bit mode on a single controllerHigh-speed, low voltage differential signaling (LVDS) DMD interface150-MHz ARM946™ microprocessorMicroprocessor peripheralsProgrammable pulse-width modulation (PWM) and capture timersThree I2C ports, three UART ports and three SSP portsOne USB 1.1 secondary portImage processingMultiple image processing algorithmsFrame rate conversionColor coordinate adjustmentProgrammable color space conversionProgrammable degamma and splashIntegrated support for 3-D display2-D keystone correctionIntegrated clock generation circuitryOperates on a single 20-MHz crystalIntegrated spread spectrum clockingExternal memory supportParallel flash for microprocessor and PWM sequence516-pin plastic ball grid array packageSupports LED and laser hybrid illuminations
Description
AI
The DLPC4430 is a digital display controller for the DLP display chipset. The chipset comprises the DLPC4430 display controller, the DLP digital micromirror device (DMD), the DLPA100controller power management device, and the DLPA300DMD micromirror driver (refer to the DMD data sheet). This solution is a great fit for display systems that require high resolution, high brightness, and system simplicity. To ensure reliable operation, the DLPC4430 display controller must always be used with a DLP DMD and respective DLP power management devices.
The DLPC4430 is a digital display controller for the DLP display chipset. The chipset comprises the DLPC4430 display controller, the DLP digital micromirror device (DMD), the DLPA100controller power management device, and the DLPA300DMD micromirror driver (refer to the DMD data sheet). This solution is a great fit for display systems that require high resolution, high brightness, and system simplicity. To ensure reliable operation, the DLPC4430 display controller must always be used with a DLP DMD and respective DLP power management devices.
