3621-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

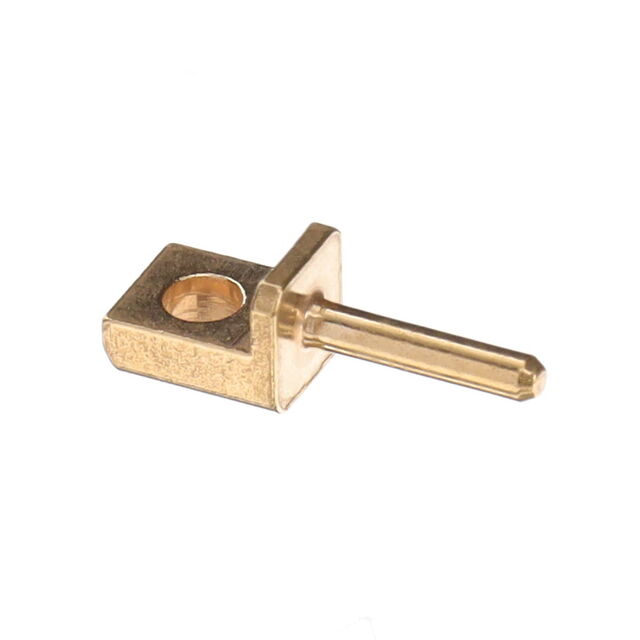

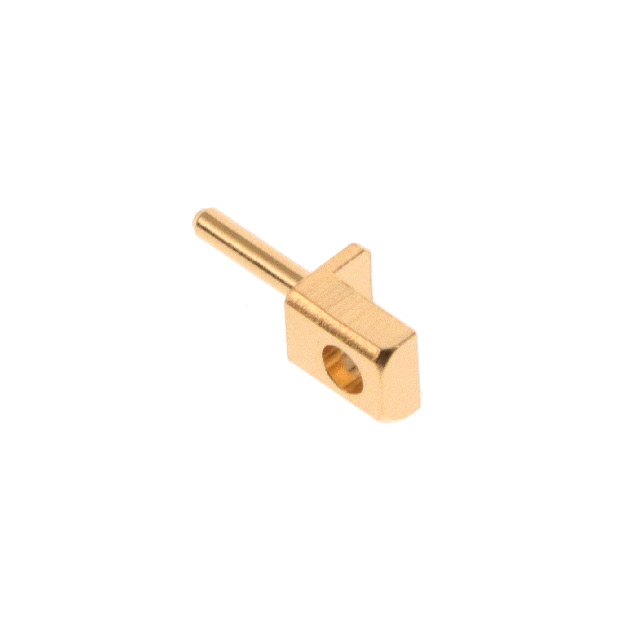

CONN PC PIN CIRC .040DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Termination | Contact Finish | Mounting Type | Insulation | Terminal Style | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Rivet | Gold | Board Edge | Non-Insulated | Single End | 0.356 in | 9.04 mm | Brass Alloy | 0.25 Ám | 10 Áin | PC Pin | 0.2 in | 5.08 mm | ||||
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Rivet | Gold | Board Edge | Non-Insulated | Single End | 0.356 in | 9.04 mm | Brass Alloy | 1.27 µm | 50 µin | PC Pin | 0.2 in | 5.08 mm | ||||
 Mill-Max Manufacturing Corp. | Rivet | Tin | Through Hole | Non-Insulated | Wire | 0.356 in | 9.04 mm | Brass Alloy | 5.08 Ám | 200 Áin | PC Pin | 0.2 in | 5.08 mm | 1.65 mm | 0.065 in | 0.04 in | 1.02 mm | ||
Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Rivet | Tin-Lead | Board Edge | Non-Insulated | Single End | 0.356 in | 9.04 mm | Brass Alloy | 5.08 Ám | 200 Áin | PC Pin | 0.2 in | 5.08 mm |
