SJ6020N1ARP Series

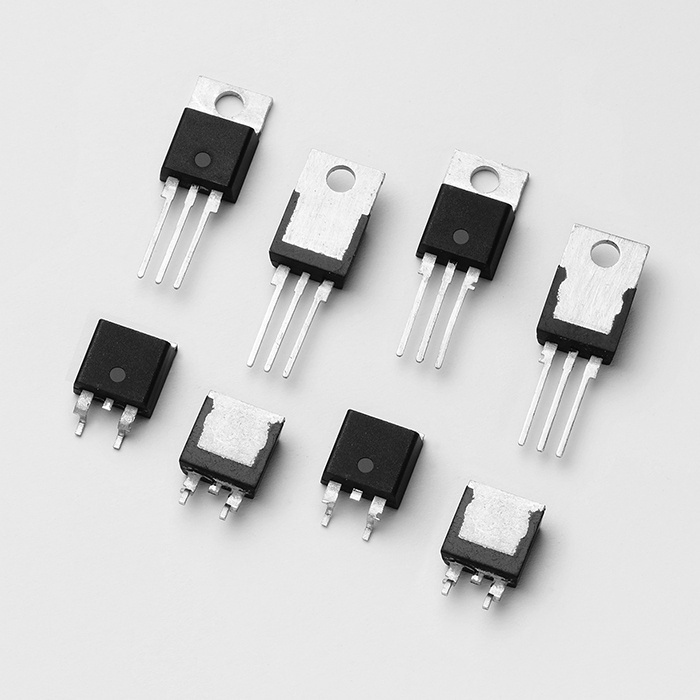

High TJ 600V 25A SCR TO220R

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

High TJ 600V 25A SCR TO220R

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - On State (Vtm) (Max) [Max]	Current - Off State (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	SCR Type	Voltage - Off State	Supplier Device Package	Package / Case
Littelfuse/Commercial Vehicle Products SJ6020N1RP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	15 mA	Surface Mount	6 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-263 (D2PAK)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Littelfuse/Commercial Vehicle Products SJ6020N1ARP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	15 mA	Surface Mount	6 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-263 (D2PAK)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Littelfuse/Commercial Vehicle Products SJ6020LTP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	75 mA	Through Hole	35 mA	12.8 A	1.5 V	Standard Recovery	600 V	ITO-220AB	TO-220-3 Full Pack Isolated Tab
Littelfuse/Commercial Vehicle Products SJ6020L2TP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	35 mA	Through Hole	10 mA	12.8 A	1.5 V	Standard Recovery	600 V	ITO-220AB	TO-220-3 Full Pack Isolated Tab
Littelfuse/Commercial Vehicle Products SJ6020NRP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	75 mA	Surface Mount	35 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-263 (D2PAK)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Littelfuse/Commercial Vehicle Products SJ6020R1TP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	15 mA	Through Hole	6 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-220AB	TO-220-3
Littelfuse/Commercial Vehicle Products SJ6020RTP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	75 mA	Through Hole	35 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-220AB	TO-220-3
Littelfuse/Commercial Vehicle Products SJ6020R1ATP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	15 mA	Through Hole	6 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-220AB	TO-220-3
Littelfuse/Commercial Vehicle Products SJ6020NTP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	75 mA	Surface Mount	35 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-263 (D2PAK)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Littelfuse/Commercial Vehicle Products SJ6020R2TP	225 A 300 A	1.6 V	10 µA	150 °C	-40 °C	35 mA	Through Hole	10 mA	12.8 A	1.5 V	Standard Recovery	600 V	TO-220AB	TO-220-3

Catalog

High TJ 600V 25A SCR TO220R

Key Features

• Halogen free and RoHS compliant

• 150°C maximum junction temperature

• Surge capability up to 350 A at 60 Hz half cycle

• AEC-Q101 qualified

• Automotive Level manufacture control

Description

This SJxx20xx high temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/rectifiers and inrush current controllers. These SCRs have a low gate current trigger level of 6mA,10mA or 35mA maximum at approximately 1.5V.
